Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | RADIATOR 923/04100 | 1 | $1,851.28 | |||
| 1 | RADIATOR, ASSEMBLY 30/913200 | 1 | $1,404.37 | |||
| 2 | HOSE TOP 834/00295 | 1 | $113.38 | |||
| 3 | CLIP - WORMDRIVE 35/50mm(KANBAN). 2201/0009 | 1 | $0.00 | |||
| 4 | CLIP - WORMDRIVE 40/60mm 2201/0011 2201/0010 | 1 | $1.86 | |||
| 5 | HOSE 1 METRE 648/00700 | 1 | $205.78 | |||
| 6 | PIPE 191/52900 | 1 | $1,443.24 | |||
| 7 | HOSE REDUCTION 834/00293 | 1 | $55.57 | |||
| 8 | CLIP - WORMDRIVE 60/80mm(KANBAN) 2201/0013 | 1 | $0.00 | |||
| 9 | HOSE ELBOW 834/00294 | 1 | $264.55 | |||
| 11 | CLIP - WORMDRIVE 35/50mm 2201/0008 | 1 | $5.41 | |||
| 13 | CAP 121/60601 | 1 | $0.00 | |||
| 14 | SET-SCREW M10 L-_25mm 1315/0407 1315/0407Z | 1 | $5.34 | |||
| 15 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.00 | |||
| 16 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.00 | |||
| 17 | HOSE 648/21300 | 1 | $518.35 | |||
| 18 | '(W) (P) CLIP - WORMDRIVE 10/16mm(KANBAN 2201/0001 | 1 | $0.00 | |||
| 20 | CAP-EXPANSION BOT 123/03532 | 1 | $8.12 | |||
| 21 | HOSE ASSY.-O/FLOW 123/00196 | 1 | $16.62 | |||
| 22 | DECAL COOLANT FILTER 817/01307 | 1 | $1.05 | |||
| 23 | LABEL-REFILL WARN 817/00439 | 1 | $2.12 | |||
| 24 | SET-SCREW M10 L-_30mm 1315/0408Z | 1 | $0.26 | |||
Showing 1 to 22 of 22 parts
Related Assemblies
-

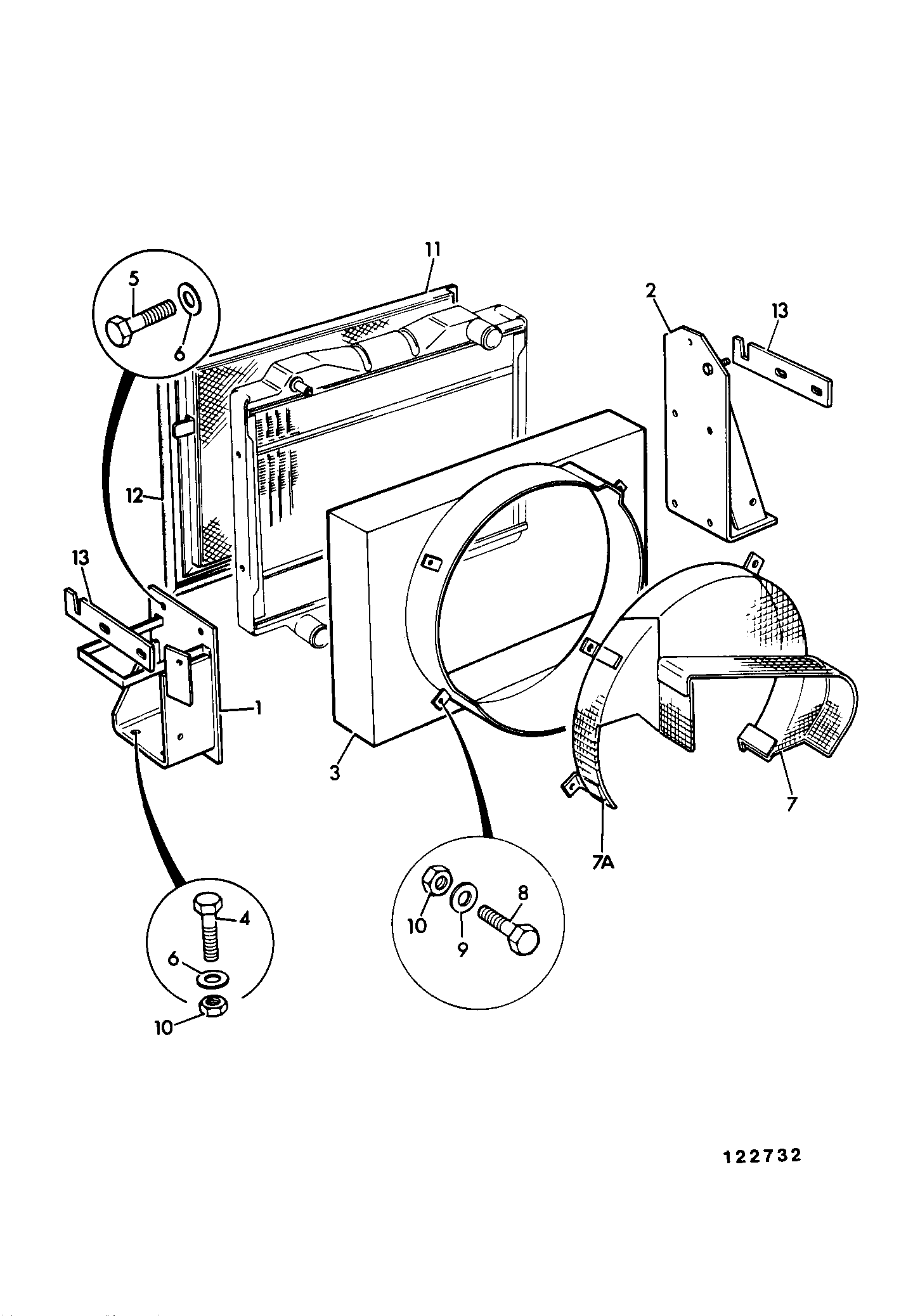

DIAG-N4-3-3-399317-12237580 N4-3-3 RADIATOR FITTINGS & MOUNTINGS AA BUILD
View Diagram -

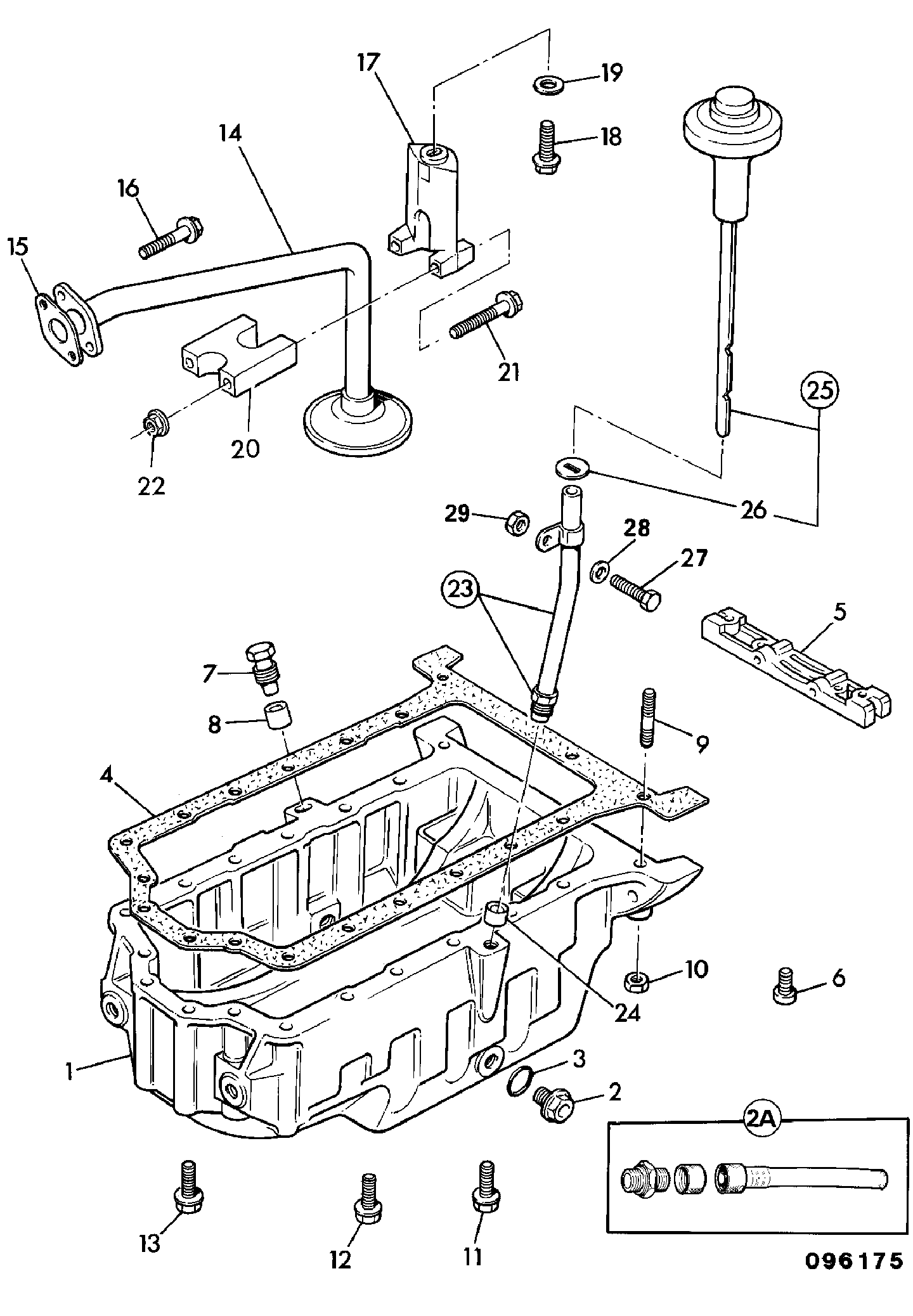

DIAG-N5-1-3-399317 N5-1-3 SUMP, OIL & FITTINGS AA BUILD
View Diagram -

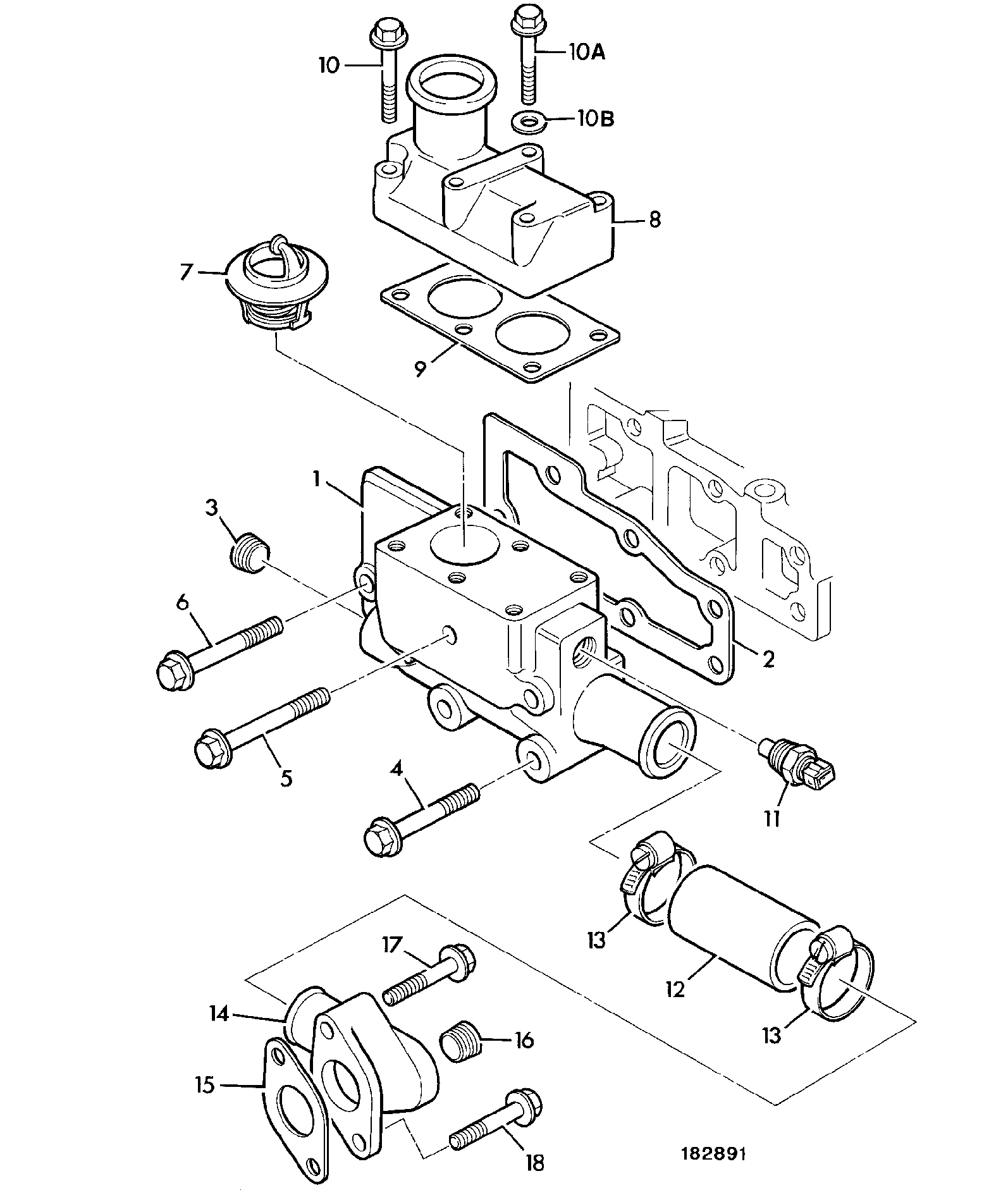

DIAG-N4-2-1-399317 N4-2-1 THERMOSTAT, HOUSING INLET & OUTLET AA BUILD
View Diagram
