Scroll to zoom Click a part # to view details

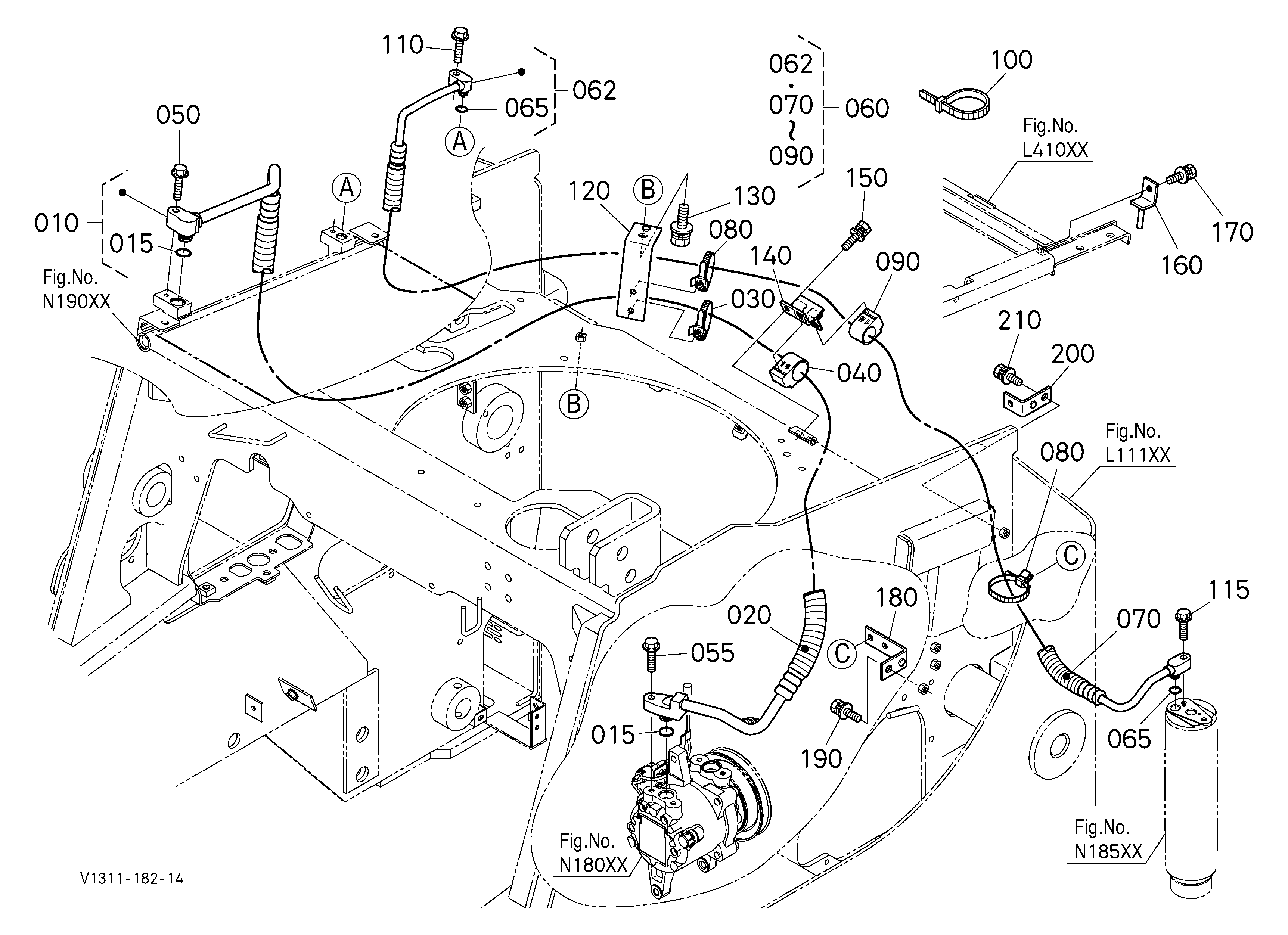

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | SUPPORT(COMPRESS V1311-44114 | 1 | $436.91 | |||
| 020 | BOLT 01025-50816 01125-50825 | 1 | $1.77 | |||
| 030 | Bolt 01128-50830 | 1 | $1.77 | |||
| 040 | Plain Washer (Flat Washer) 04013-50800 04013-50080 | 1 | $0.36 | |||
| 050 | BOLT 01138-51030 | 1 | $4.89 | |||
| 060 | Plain Washer (Flat Washer) 04013-10100 04013-50100 | 1 | $0.60 | |||
| 070 | Air Conditioner Compressor Assembly 3C581-97590 RD451-93900 | 1 | $993.20 | |||
| 080 | ASSY CLUTCH, MAG RD451-47910 | 1 | $800.71 | |||
| 090 | SCREW T0070-87320 | 1 | $1.30 | |||
| 100 | SHIM T1065-87340 | 1 | $1.44 | |||
| 110 | SHIM T1065-87350 | 1 | $4.11 | |||
| 120 | SHIM T1065-87360 | 1 | $4.11 | |||
| 130 | SHIM T1065-87370 | 1 | $4.11 | |||
| 140 | SHIM (1.0, LS30) T1065-87380 | 1 | $5.61 | |||
| 150 | CIR-CLIP T1065-87440 | 1 | $13.43 | |||
| 160 | CIR-CLIP T1065-87450 | 1 | $13.43 | |||
| 170 | BOLT T1065-87460 | 1 | $3.16 | |||
| 180 | BUSH T0270-72320 | 1 | $18.36 | |||
| 190 | BOLT, FLANGE * 01754-50835 | 1 | $5.49 | |||
| 210 | PULLEY, TENSION T1065-72950 | 1 | $102.22 | |||
| 220 | BOLT 01155-50880 | 1 | $4.22 | |||
| 230 | V-BELT V1311-44130 | 1 | $36.91 | |||
Showing 1 to 22 of 22 parts
