Kubota M4N-071HDC12 N16500 OUTER ROOF Parts Diagram

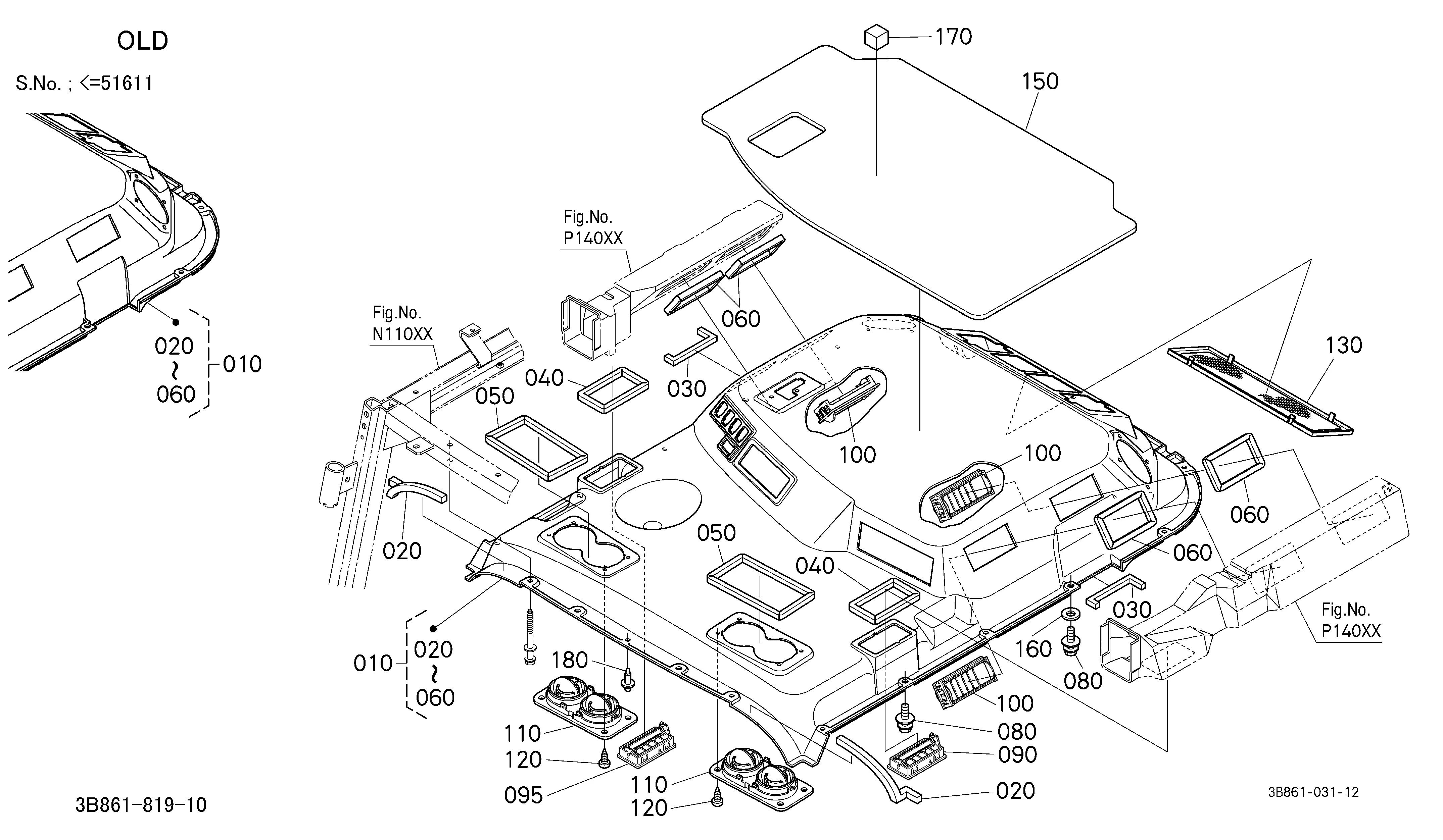

Exploded-view parts diagram "N16500 OUTER ROOF" for the Kubota M4N-071HDC12, Kubota M5N-091HDC12, Kubota M5N-091HDC12-PC, Kubota M5N-091HDC24, Kubota M5N-111HDC12 and Kubota M5N-111HDC24. 15 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ROOF, OUTER 3C871-71512 3C871-71513 | 1 | $2,152.90 | |||
| 020 | ASSY DAMPER 3C871-71400 | 1 | $338.61 | |||
| 030 | GRIP T1065-71470 | 1 | $6.41 | |||
| 040 | SCREW T1065-71490 | 1 | $1.35 | |||
| 050 | Flange Bolt 01754-50812 | 1 | $3.93 | |||
| 060 | BOLT, M6X90 T1275-74570 | 1 | $4.40 | |||
| 065 | BOLT (M6x60) TD170-74570 | 1 | $4.09 | |||
| 070 | SHIELD 6C430-72690 T1275-71520 | 1 | $120.31 | |||
| 080 | PLATE, FILTER 3C871-56320 | 1 | $261.94 | |||
| 090 | FILTER,PAPER W2336-71600 | 1 | $154.35 | |||
| 100 | SCREW 33780-56530 | 1 | $3.59 | |||
| 110 | SEAL T1275-89960 T1275-89962 | 1 | $8.49 | |||
| 120 | SEAL T1275-89970 T1275-89972 | 1 | $8.79 | |||
| 130 | COVER,FRAME FRON T1855-89972 | 1 | $6.17 | |||
| 140 | COVER,FRAME FRON T1855-89982 | 1 | $6.17 | |||
Showing 1 to 15 of 15 parts
