Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | GLASS HATCH BACK 3B791-70550 | 1 | $444.83 | |||
| 020 | WEATHERSTRIP 3B791-71040 3B791-71043 | 1 | $117.28 | |||
| 030 | HINGE(LH) 3B791-71020 3B791-71023 | 1 | $32.14 | |||
| 040 | HINGE(RH) 3B791-71030 3B791-71033 | 1 | $32.14 | |||
| 050 | Pin 05122-50835 | 1 | $2.26 | |||
| 060 | Pin for Tractor & Mower Assemblies 05525-50080 05525-50800 | 1 | $1.31 | |||
| 070 | GASKET (REAR) 3C581-75620 | 1 | $9.47 | |||
| 080 | BRACKET 3B791-61840 3B791-61842 | 1 | $64.79 | |||
| 090 | NUT T0270-86220 | 1 | $1.51 | |||
| 100 | GASKET 3C581-61780 | 1 | $24.89 | |||
| 110 | BRACKET, CYLINDE 3C581-61830 | 1 | $169.23 | |||
| 120 | COMP HANDLE T3635-84502 T3685-84500 | 1 | $71.84 | |||
| 130 | ASSY HANDLE REAR T3635-84512 T3685-84510 | 1 | $47.93 | |||
| 140 | COVER(REARLOCK) T3635-84522 T3685-84520 | 1 | $14.66 | |||
| 150 | BRACKET, REARLOC T3635-84532 T3685-84530 | 1 | $19.63 | |||
| 160 | Cabin Window Glass Packing T0270-61770 | 1 | $3.15 | |||
| 170 | SCREW T0180-83610 | 1 | $0.36 | |||
| 180 | SCREW T0180-83560 | 1 | $0.64 | |||
| 190 | BRACKET T0270-71070 | 1 | $11.24 | |||
| 200 | DAMPER, REAR 3B791-53770 | 1 | $73.85 | |||
| 205 | JOINT,BALL 3N300-52880 3T400-52880 | 1 | $4.02 | |||
| 210 | SHIELD 3B791-71080 | 1 | $16.41 | |||
| 220 | PLUG 3C581-53750 | 1 | $24.94 | |||
| 230 | SUPPORT (PLUG, H 3C581-53760 | 1 | $9.67 | |||
| 240 | PLUG, BLIND 41182-61150 | 1 | $3.35 | |||
| 250 | PLUG(16) 3A751-55790 | 1 | $14.05 | |||
| 260 | CAP, RUBBER (PLU TD170-71070 | 1 | $2.09 | |||
| 270 | GLASS (REAR WIND 3C581-71010 3C591-71010 | 1 | $171.92 | |||
| 280 | PLATE (1,CAB) T1155-74850 | 1 | $1.67 | |||
Showing 1 to 29 of 29 parts
Related Assemblies
-

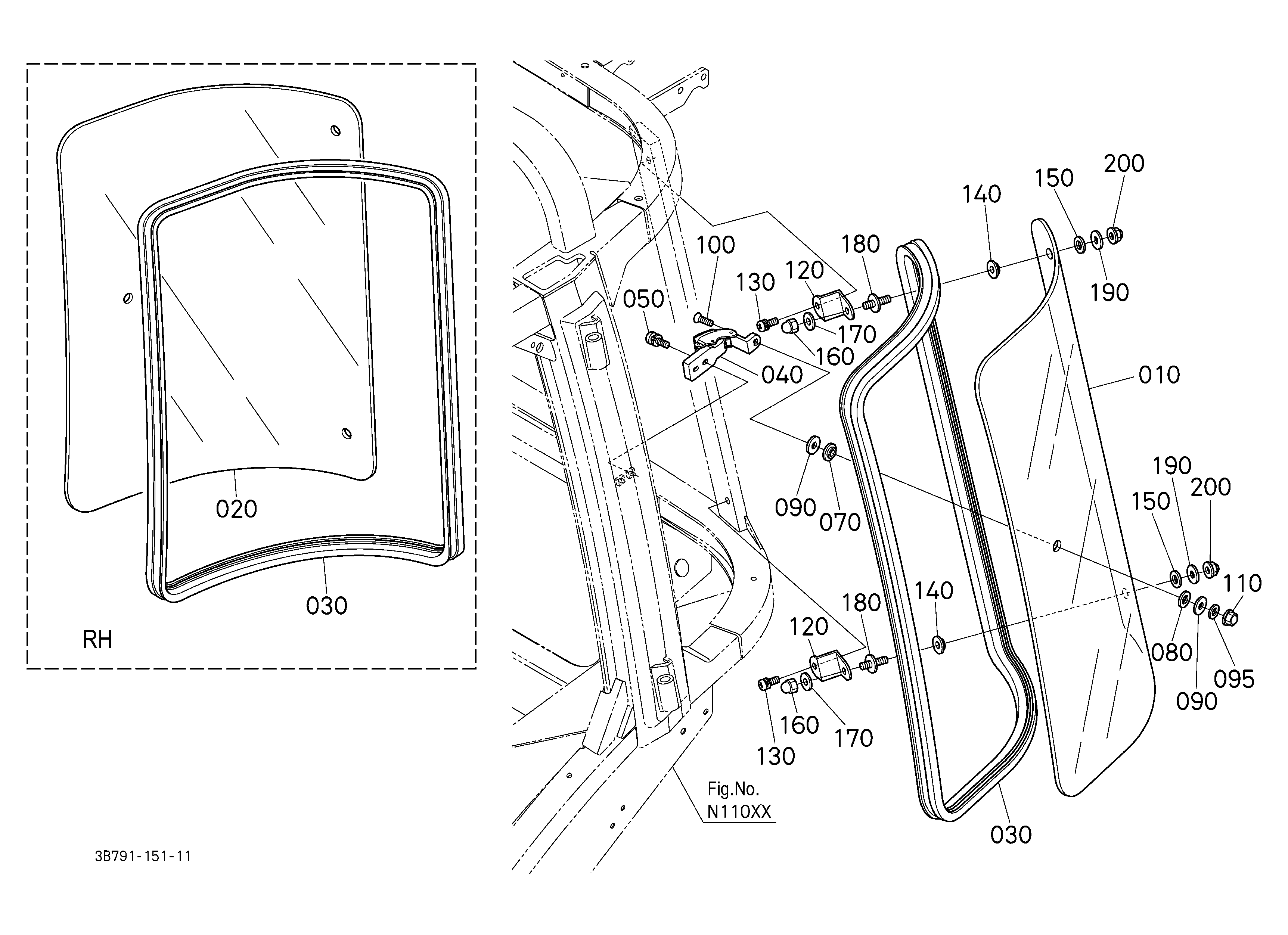

DIAG-N14501-194337 N14501 SIDE WINDOW
View Diagram -

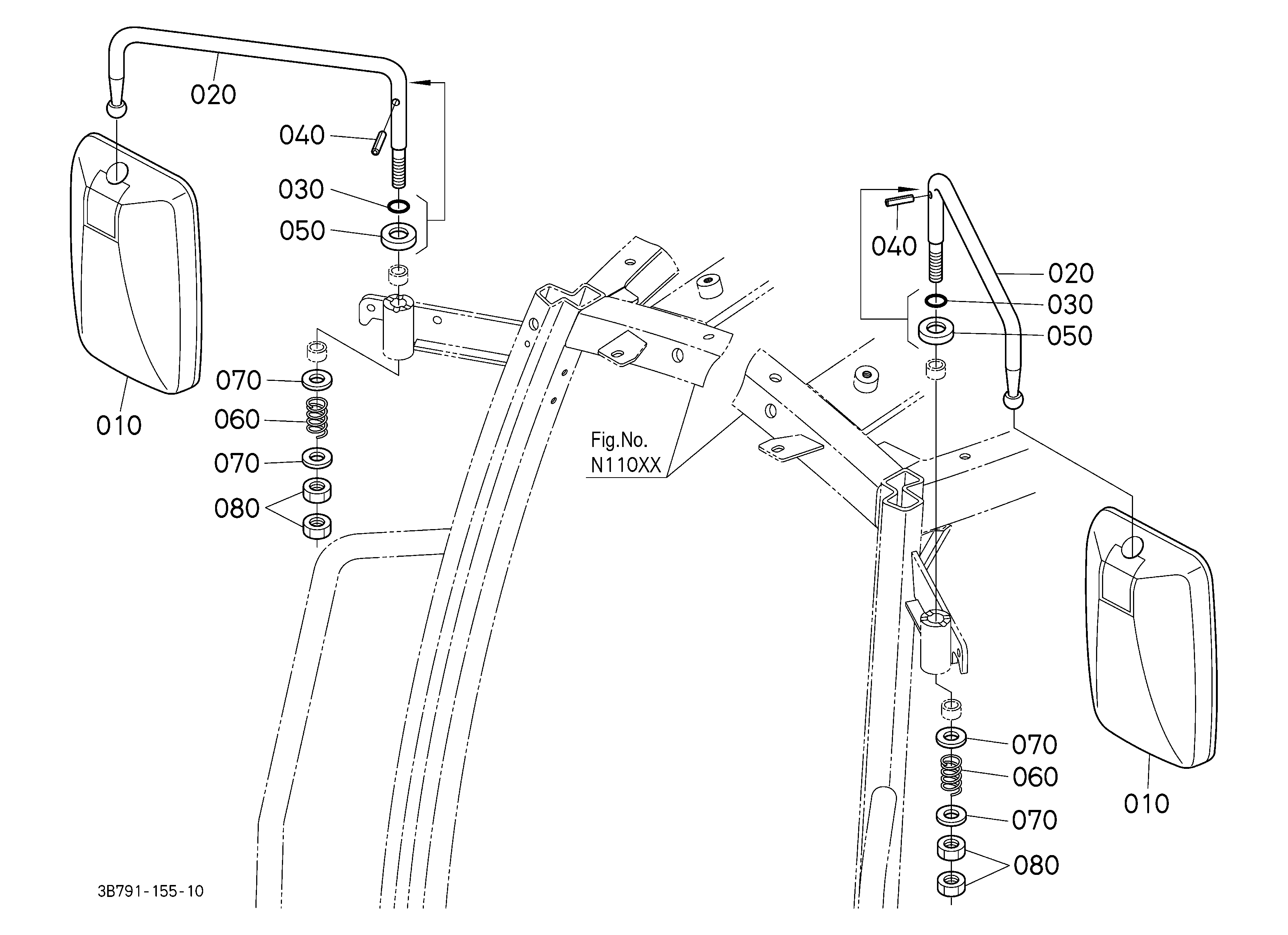

DIAG-N15800-194337 N15800 REARVIEW MIRROR
View Diagram -

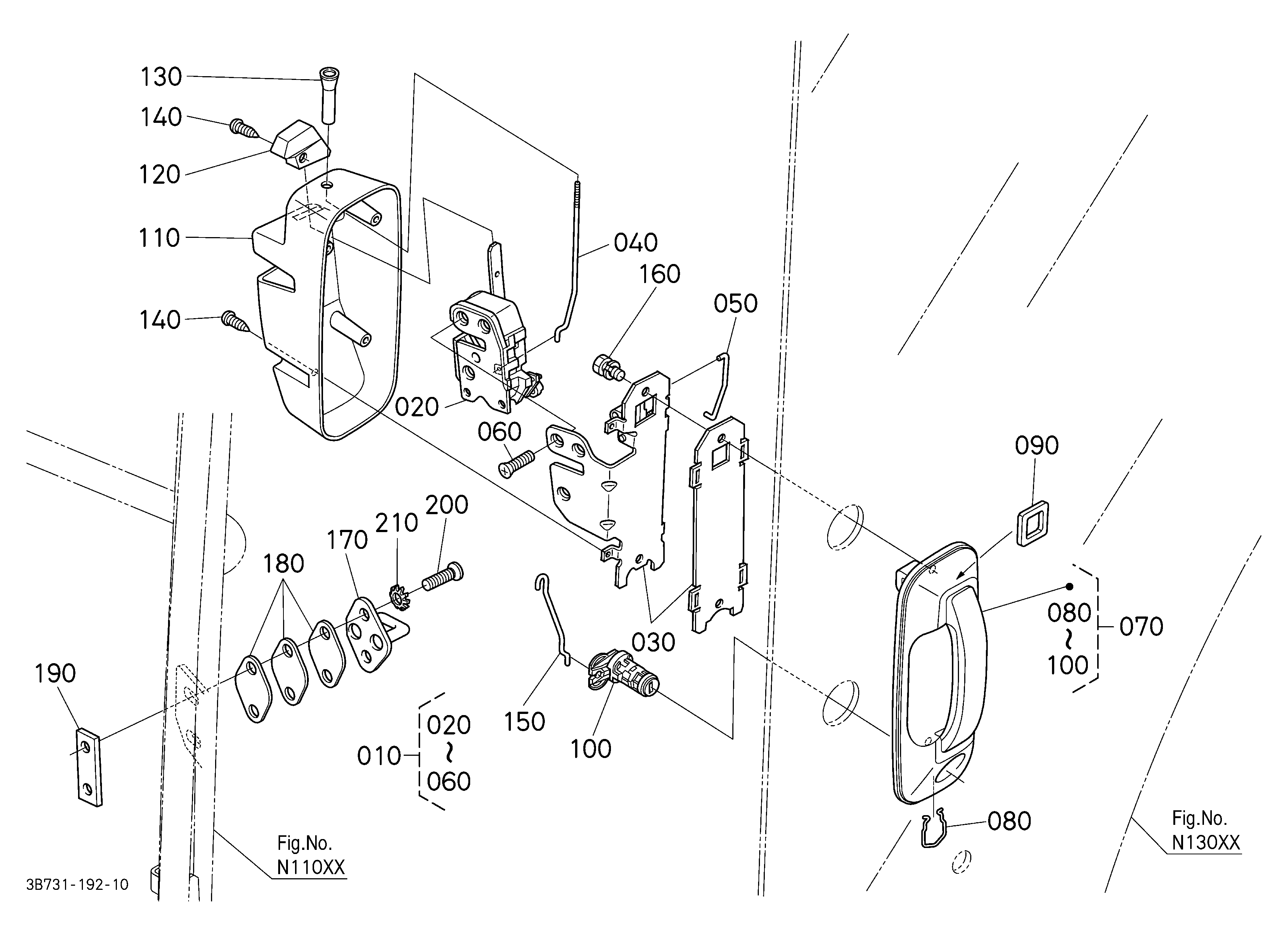

DIAG-N14001-194337 N14001 DOOR LOCK LH
View Diagram
