Kubota M-110DTC N14502 SIDE WINDOW [CA] Parts Diagram

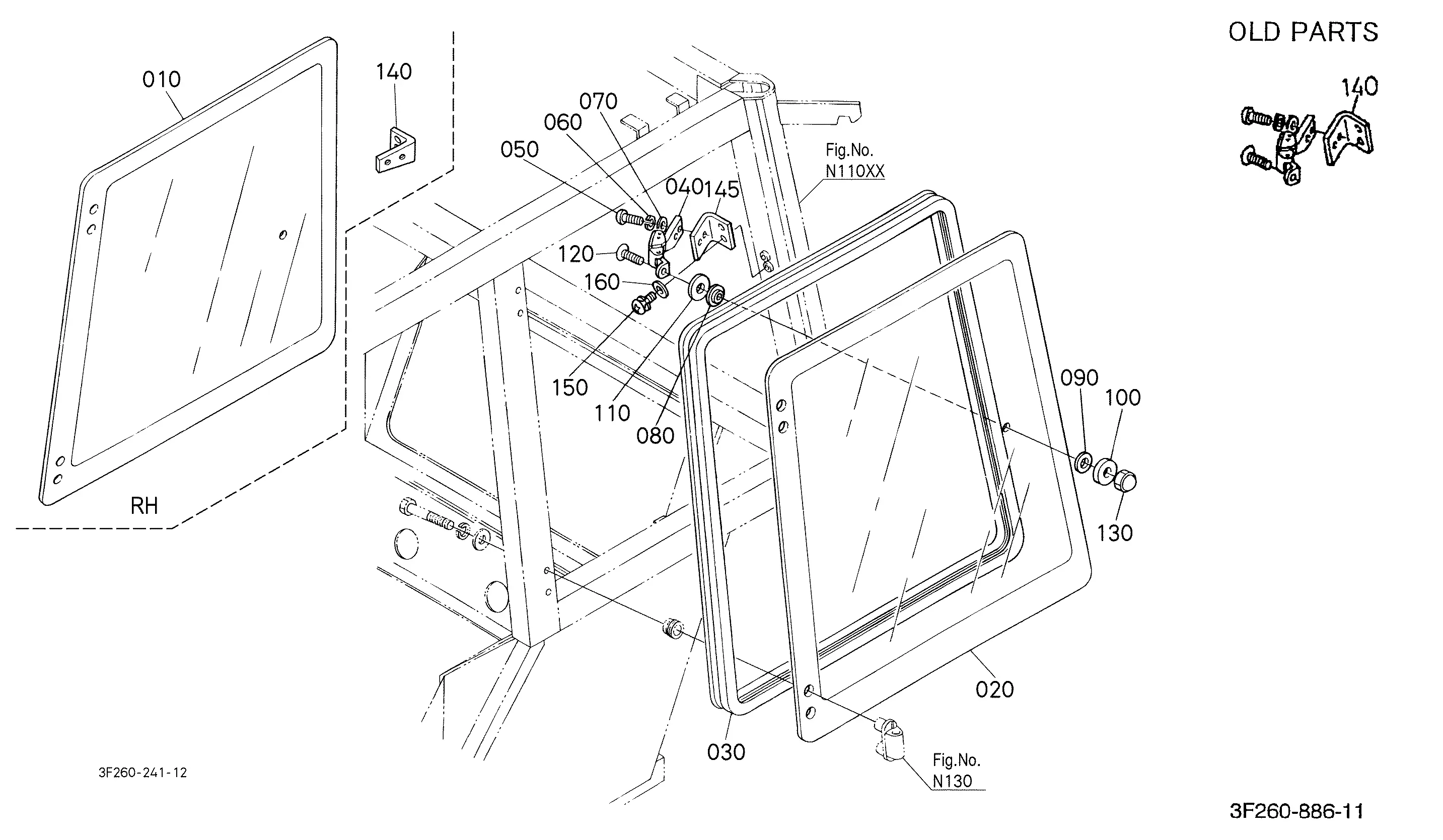

Exploded-view parts diagram "N14502 SIDE WINDOW [CA]" for the Kubota M-110DTC and Kubota M-120DTC. 17 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | GLASS 3F261-53510 | 1 | $431.84 | |||
| 020 | GLASS 3F261-53520 Discontinued | 1 | $268.93 | |||
| 030 | STRIP(SIDE) 3F260-53562 3F260-53563 | 1 | $135.56 | |||
| 040 | COMP LOCK 3G710-71490 | 1 | $81.71 | |||
| 050 | SCREW T0180-83610 | 1 | $0.36 | |||
| 060 | Spring Washer 04512-60060 04512-70060 | 1 | $0.60 | |||
| 070 | PLAIN WASHER 33740-54090 | 1 | $1.41 | |||
| 080 | Protector Rubber 30418-61742 | 1 | $2.52 | |||
| 090 | SHIELD 30418-61842 | 1 | $2.13 | |||
| 100 | WASHER 3F760-53700 | 1 | $6.68 | |||
| 110 | Washer 3F760-53540 | 1 | $4.15 | |||
| 120 | SCREW 03056-50525 | 1 | $0.46 | |||
| 130 | NUT,CAP 3F760-54850 3F760-54852 | 1 | $1.90 | |||
| 140 | BRACKET 3F880-53240 | 1 | $8.70 | |||
| 140 | HOLDER 3M760-53240 | 1 | $13.56 | |||
| 145 | HOLDER 3M760-53250 | 1 | $13.56 | |||
| 150 | SCREW W/WASHER * 36919-50390 | 1 | $1.06 | |||
Showing 1 to 17 of 17 parts
