Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | COMP,DOOR LOCK LH K7711-29262 | 1 | $79.13 | |||
| 020 | Flange Bolt 01754-50620 | 1 | $2.95 | |||
| 030 | LEVER, LOCK DOOR K7711-29292 | 1 | $25.99 | |||
| 040 | GRIP, CONTR LEVE K7311-42850 | 1 | $1.92 | |||
| 040 | GRIP,AUX.CONTR.LEVER TD060-96260 TD060-96262 | 1 | $7.65 | |||
| 050 | Pin 05122-50835 | 1 | $2.26 | |||
| 060 | PIN, SNAP 05515-50800 | 1 | $0.60 | |||
| 070 | ROD, DOOR OPEN K7711-29460 | 1 | $8.03 | |||
| 080 | SPRING (DOOR OPE K7711-29470 K7711-29472 | 1 | $1.57 | |||
| 090 | PIN, SPRING 05411-02520 | 1 | $1.07 | |||
| 100 | KIT COVER, LATCH K7721-97400 | 1 | $173.65 | |||
| 120 | PLATE, STRIKER K7711-29270 | 1 | $7.29 | |||
| 130 | CAPSCREW, CSK-HD K7711-29950 K7711-29952 | 1 | $1.53 | |||
| 140 | Toothed Washer 04414-50080 | 1 | $0.80 | |||
| 150 | PLATE, WASHER ST K7711-29480 | 1 | $7.60 | |||
| 160 | Bolt K7711-29442 K7711-29443 | 1 | $5.96 | |||
| 170 | Spring Washer (Lock Washer) 04512-50120 | 1 | $2.57 | |||
| 180 | Nut Fastener for Equipment Assemblies 02173-50120 02174-50120 | 1 | $0.87 | |||
Showing 1 to 18 of 18 parts
Related Assemblies
-

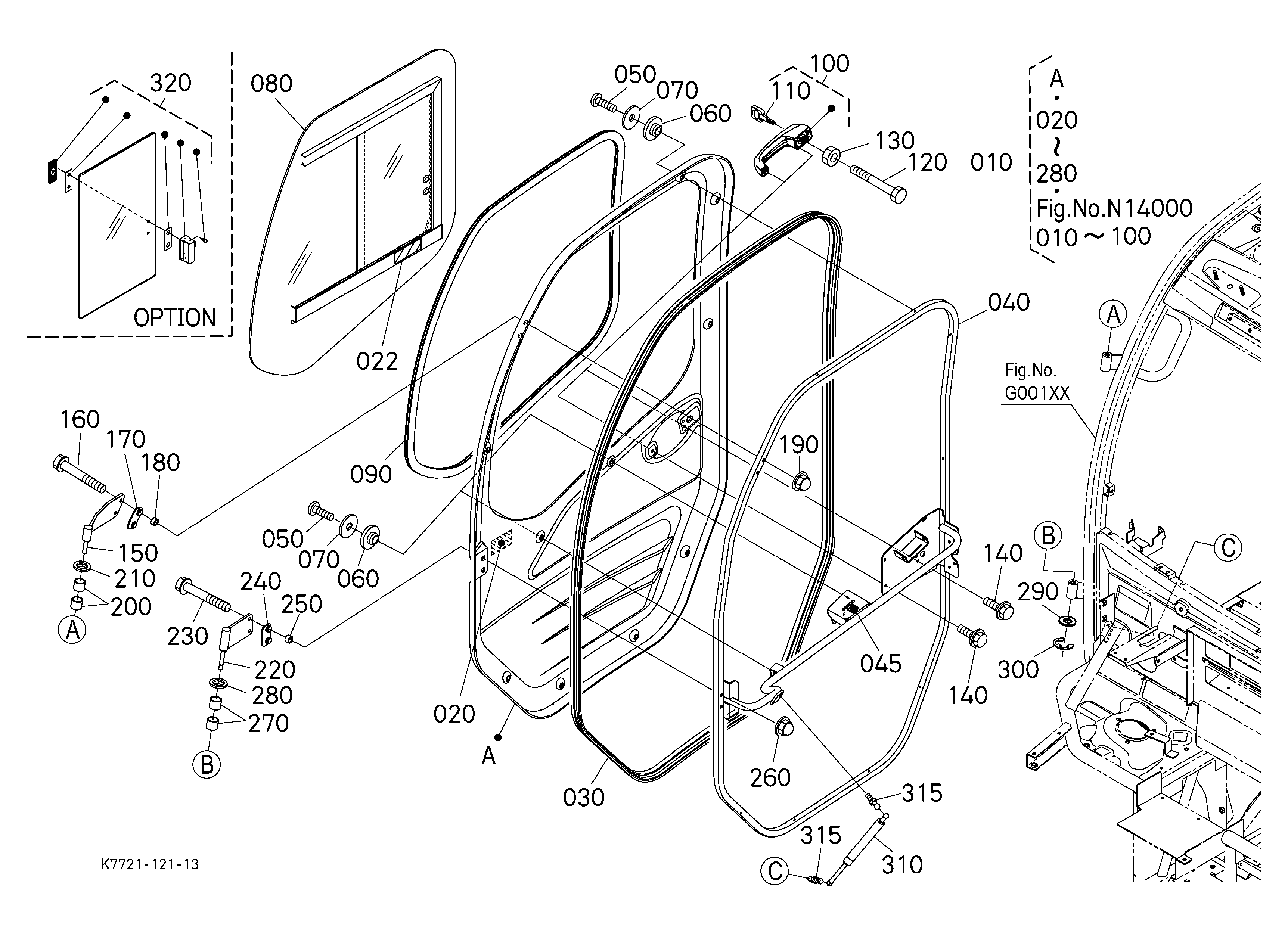

DIAG-N12004-86206 N12004 DOOR RH
View Diagram -
DIAG-N11504-86206 N11504 DOOR LH
View Diagram -

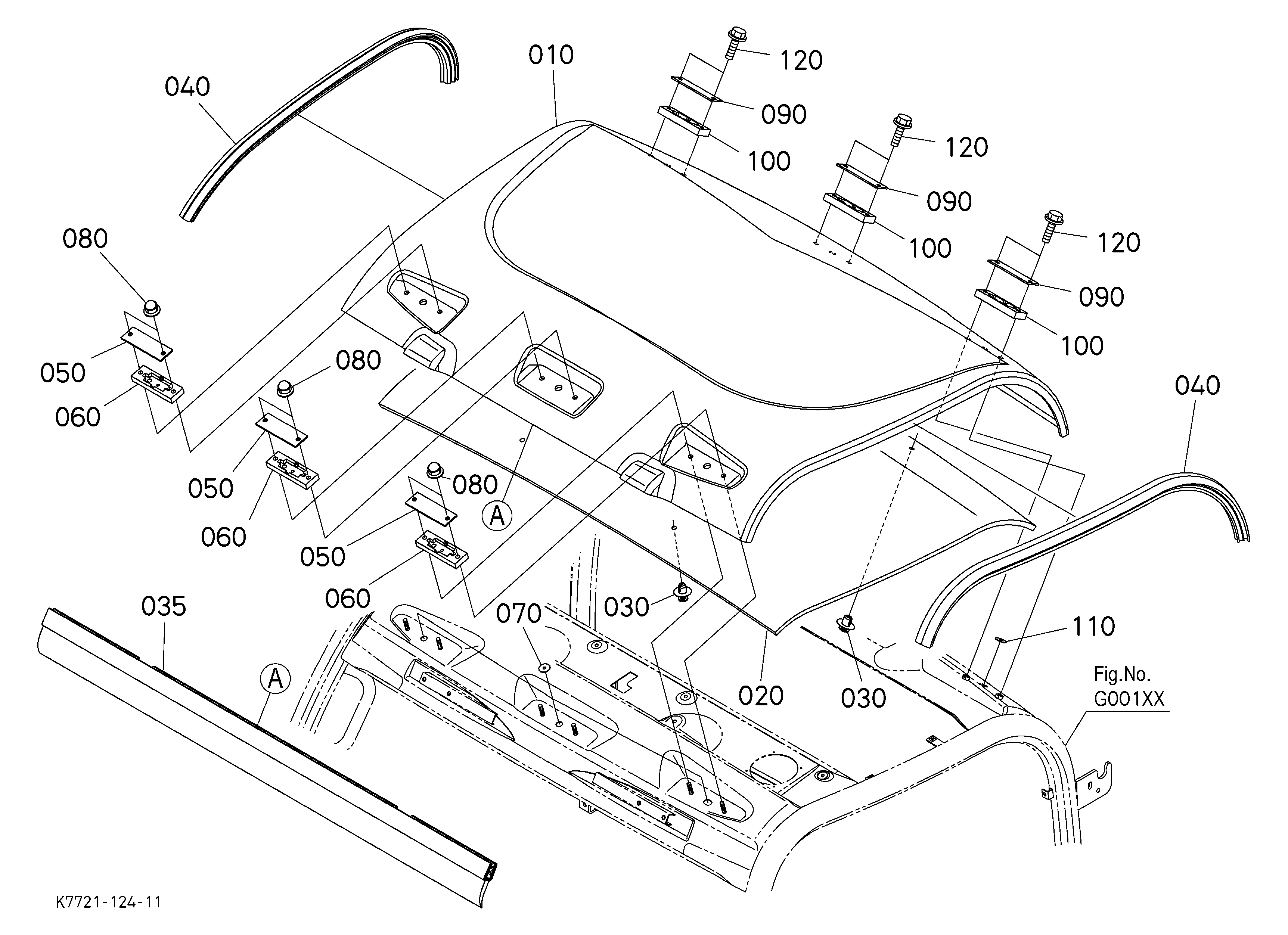

DIAG-N15002-86206 N15002 OUTER ROOF
View Diagram
