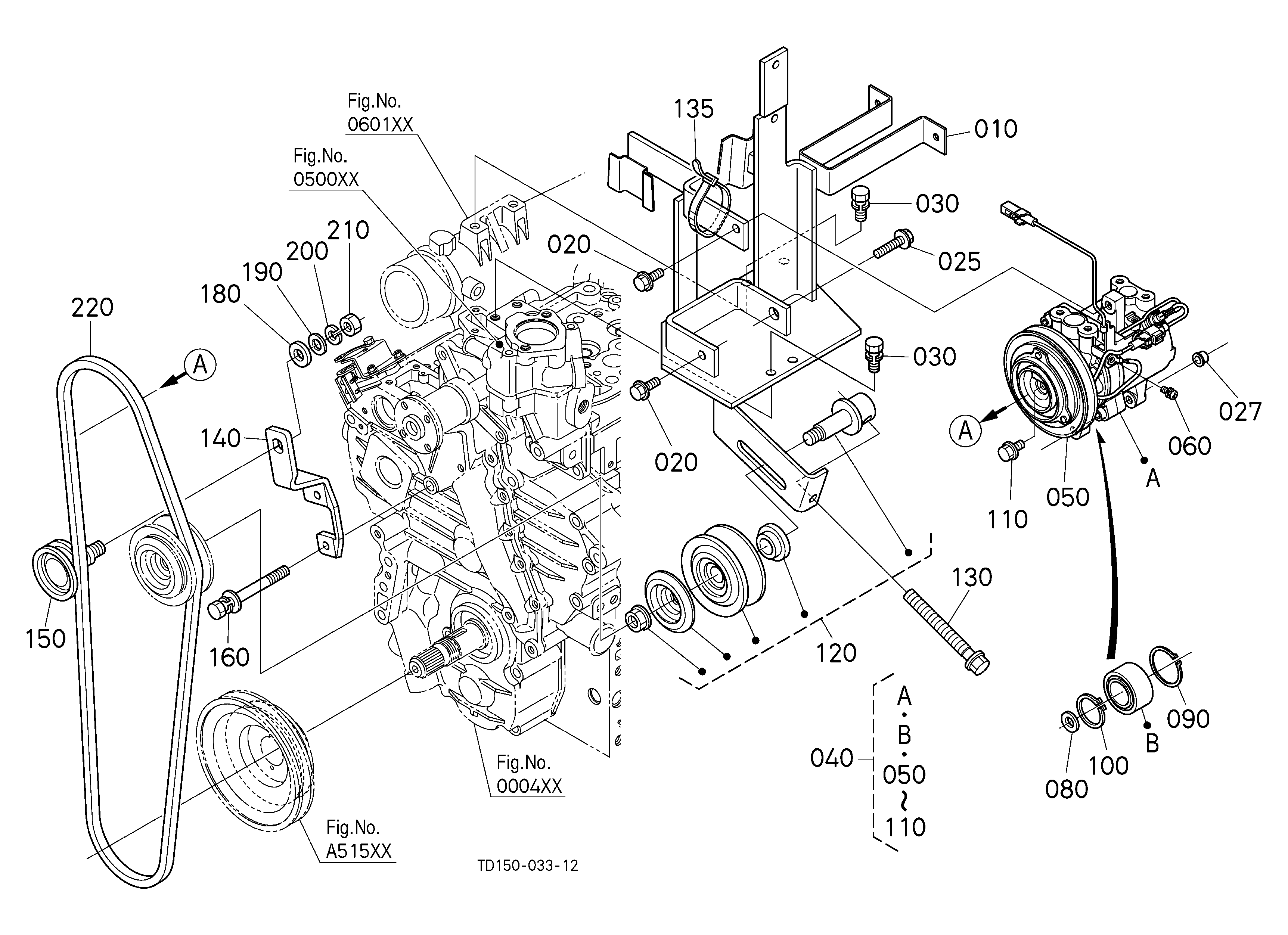

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | BRACKET, COMPRES TD150-72910 | 1 | $190.18 | |||
| 020 | BOLT * 01123-50870 | 1 | $2.36 | |||
| 030 | Bolt Fastener for Equipment Assemblies 01120-50820 01123-50820 | 1 | $0.99 | |||
| 040 | ASSY COMPRESSOR 6A671-97110 6A671-97114 | 1 | $763.30 | |||
| 050 | ASSY CLUTCH 6A671-97310 | 1 | $1,093.05 | |||
| 060 | SCREW, WITH WASH T1065-87320 | 1 | $3.59 | |||
| 070 | ASSY WIRE 6A671-97410 | 1 | $218.38 | |||
| 080 | SHIM T1065-87340 | 1 | $1.44 | |||
| 080 | SHIM T1065-87350 | 1 | $4.11 | |||
| 080 | SHIM T1065-87360 | 1 | $4.11 | |||
| 080 | SHIM T1065-87370 | 1 | $4.11 | |||
| 080 | SHIM (1.0, LS30) T1065-87380 | 1 | $5.61 | |||
| 090 | CIR-CLIP T1065-87440 | 1 | $13.43 | |||
| 100 | CIR-CLIP T1065-87450 | 1 | $13.43 | |||
| 110 | BOLT T1065-87460 | 1 | $3.16 | |||
| 120 | PULLEY, TENSION T1065-72950 | 1 | $102.22 | |||
| 130 | BOLT 01155-50880 | 1 | $4.22 | |||
| 135 | BAND, CORD 65601-42390 53581-64150 | 1 | $4.85 | |||
| 140 | SUPPORT, PULLEY TD170-72940 | 1 | $30.34 | |||
| 150 | Air Conditioner Compressor Tension Pulley 33760-50090 | 1 | $60.65 | |||
| 160 | BOLT *** 01125-50895 | 1 | $5.04 | |||
| 180 | Washer 04011-50140 | 1 | $0.60 | |||
| 190 | M10 Plain Washer 04013-60100 04013-70100 | 1 | $0.60 | |||
| 200 | Spring Washer (Lock Washer) 04512-60100 04512-70100 | 1 | $0.60 | |||
| 210 | Nut 02114-60100 02114-50100 | 1 | $0.80 | |||
| 220 | Belt A/C 34070-79320 | 1 | $34.73 | |||
Showing 1 to 26 of 26 parts
Related Assemblies
-

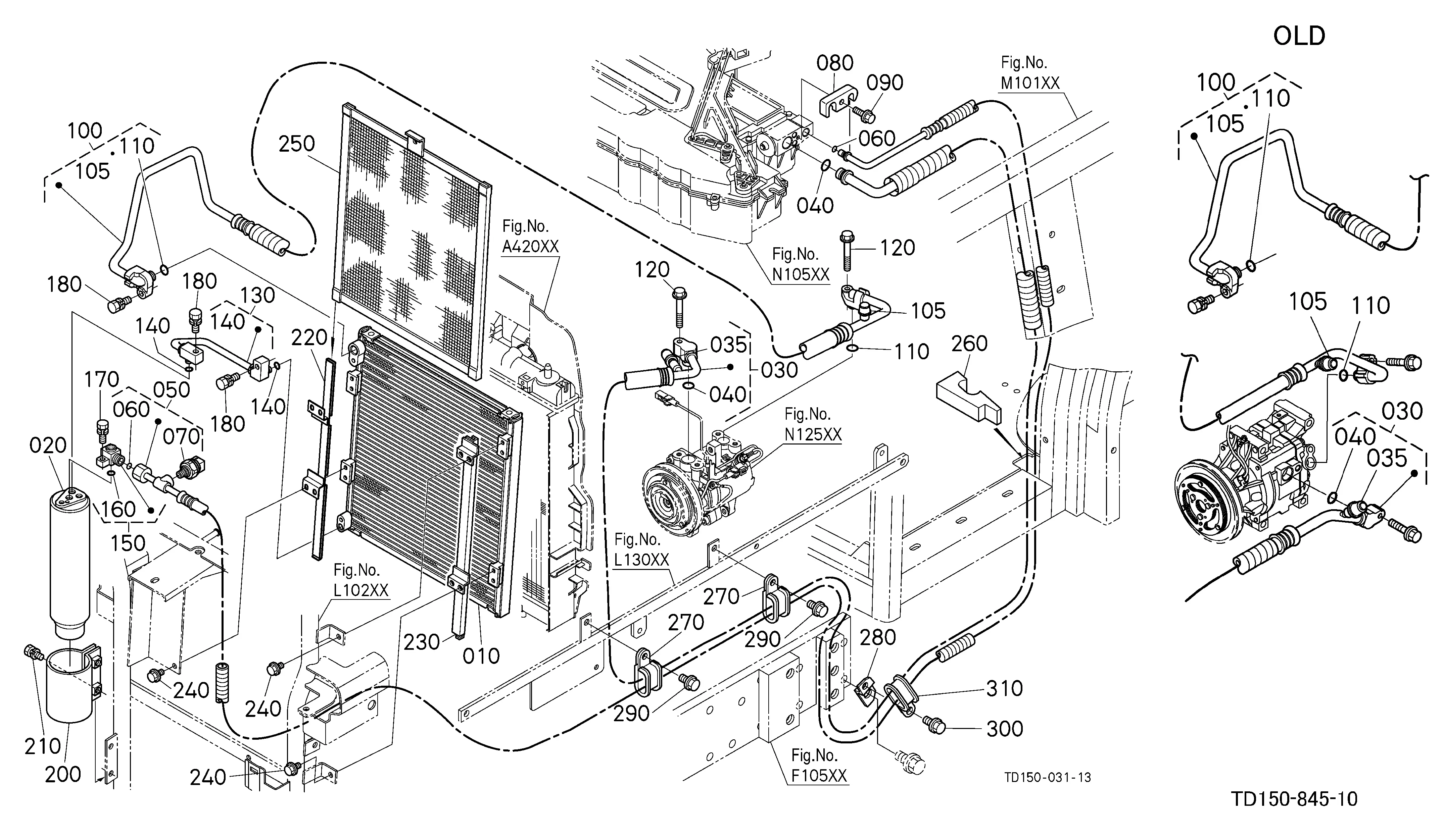

DIAG-N12004-85438 N12004 CONDENSER [NEW]
View Diagram -
DIAG-N12504-85438 N12504 COMPRESSOR [NEW]
View Diagram -

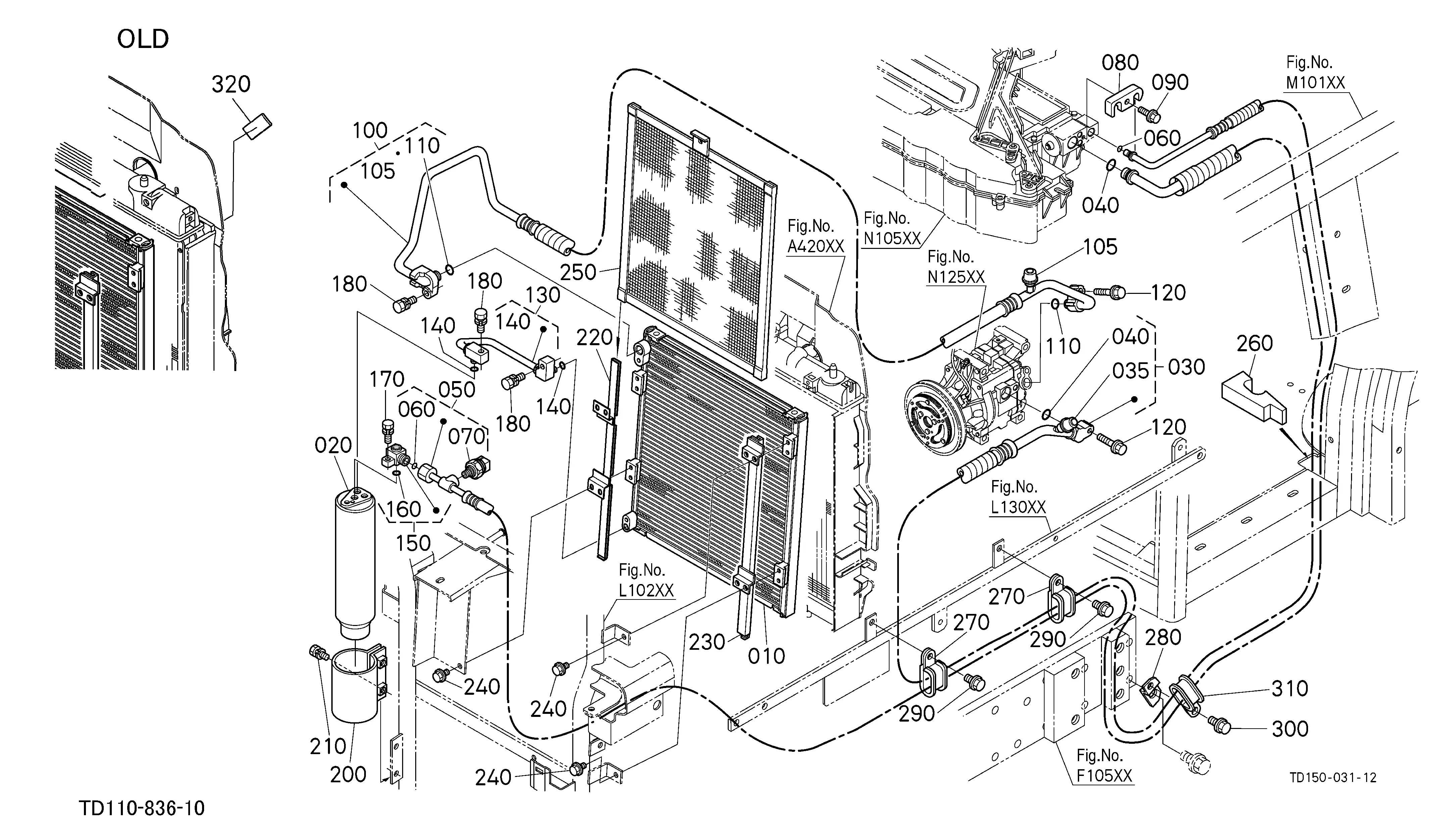

DIAG-N12003-85438 N12003 CONDENSER [OLD]
