Kubota L4240HSTC N12501 COMPRESSOR [OLD] Parts Diagram

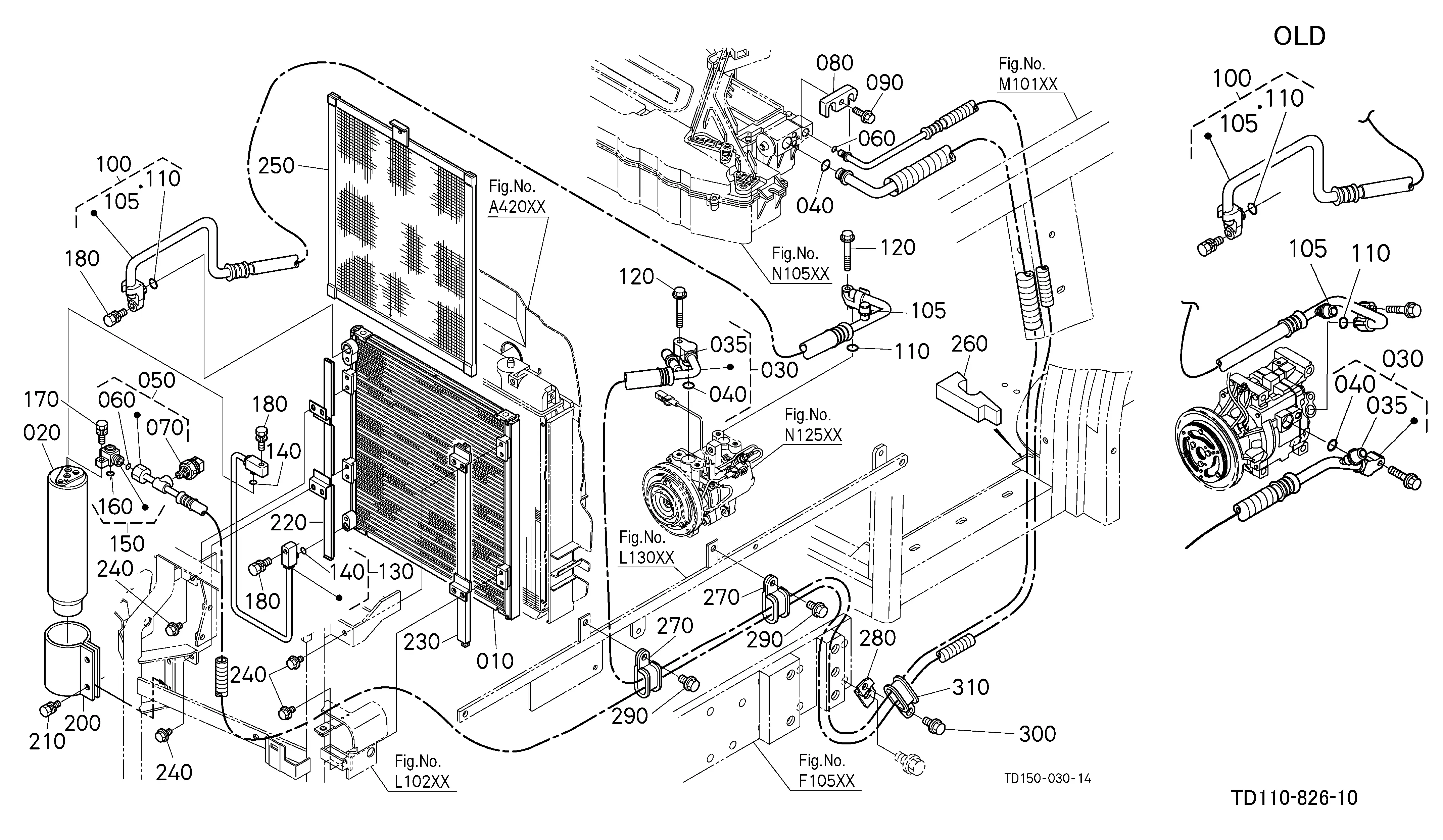

Exploded-view parts diagram "N12501 COMPRESSOR [OLD]" for the Kubota L4240HSTC. 26 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | BRACKET, COMPRES TD140-72910 | 1 | $190.18 | |||
| 020 | BOLT * 01123-50870 | 1 | $2.36 | |||
| 030 | Bolt Fastener for Equipment Assemblies 01120-50820 01123-50820 | 1 | $0.99 | |||
| 040 | ASSY COMPRESSOR 6A671-97110 6A671-97114 | 1 | $763.30 | |||
| 050 | ASSY CLUTCH 6A671-97310 | 1 | $1,093.05 | |||
| 060 | SCREW, WITH WASH T1065-87320 | 1 | $3.59 | |||
| 070 | ASSY WIRE 6A671-97410 | 1 | $218.38 | |||
| 080 | SHIM T1065-87340 | 1 | $1.44 | |||
| 080 | SHIM T1065-87350 | 1 | $4.11 | |||
| 080 | SHIM T1065-87360 | 1 | $4.11 | |||
| 080 | SHIM T1065-87370 | 1 | $4.11 | |||
| 080 | SHIM (1.0, LS30) T1065-87380 | 1 | $5.61 | |||
| 090 | CIR-CLIP T1065-87440 | 1 | $13.43 | |||
| 100 | CIR-CLIP T1065-87450 | 1 | $13.43 | |||
| 110 | BOLT T1065-87460 | 1 | $3.16 | |||
| 120 | PULLEY, TENSION T1065-72950 | 1 | $102.22 | |||
| 130 | BOLT 01155-50880 | 1 | $3.47 | |||
| 135 | BAND, CORD 65601-42390 53581-64150 | 1 | $4.85 | |||
| 140 | SUPPORT, PULLEY TD170-72940 | 1 | $30.34 | |||
| 150 | Air Conditioner Compressor Tension Pulley 33760-50090 | 1 | $60.65 | |||
| 160 | BOLT *** 01125-50895 | 1 | $5.04 | |||
| 180 | Washer 04011-50140 | 1 | $0.60 | |||
| 190 | M10 Plain Washer 04013-60100 04013-70100 | 1 | $0.60 | |||
| 200 | Spring Washer (Lock Washer) 04512-60100 04512-70100 | 1 | $0.60 | |||
| 210 | Nut 02114-60100 02114-50100 | 1 | $0.80 | |||
| 220 | Belt A/C 34070-79320 | 1 | $34.73 | |||
Showing 1 to 26 of 26 parts
