Scroll to zoom Click a part # to view details

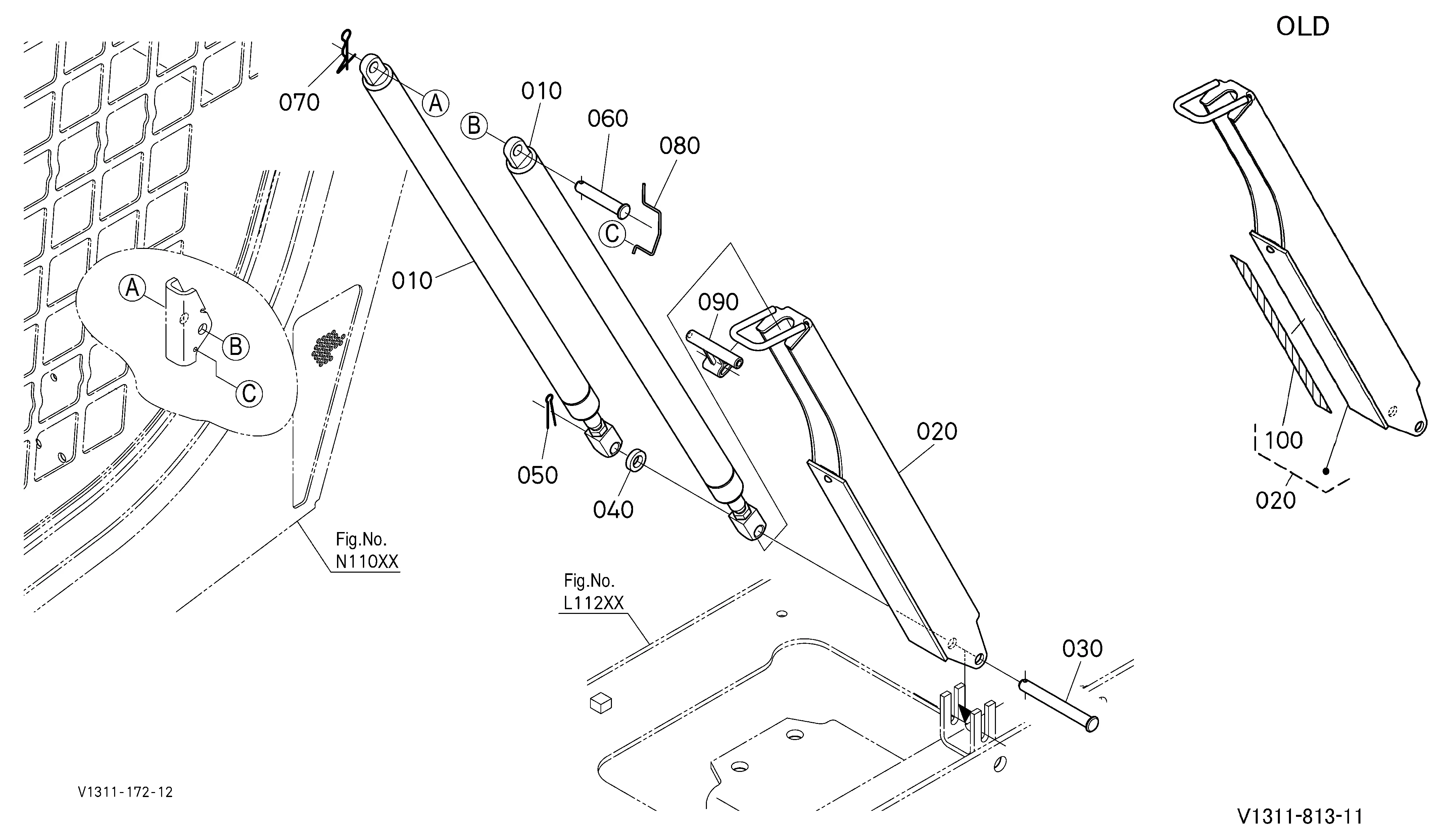

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | WINDOW, REAR V1311-33112 | 1 | $244.37 | |||
| 020 | WEATHERSTRIP(REAR) V1311-33120 V1311-33123 | 1 | $49.41 | |||
| 030 | ASSY HANDLE REAR T3635-84512 T3685-84510 | 1 | $47.93 | |||
| 030 | HANDLE,ASSY(REAR V1311-33130 | 1 | $94.64 | |||
| 040 | COVER(REARLOCK) T3635-84522 T3685-84520 | 1 | $14.66 | |||
| 050 | Cabin Window Glass Packing T0270-61770 | 1 | $3.15 | |||
| 060 | SCREW, PAN HEAD 03014-00614 03014-50614 | 1 | $0.60 | |||
| 070 | BRACKET, REARLOC T3635-84532 T3685-84530 | 1 | $19.63 | |||
| 080 | SCREW T0180-83560 | 1 | $0.64 | |||
| 090 | WINDOW, FRONT V1311-33150 | 1 | $441.53 | |||
| 100 | RUBBER, SEALING V1311-33140 | 1 | $11.31 | |||
| 110 | BOLT,CUP-SQ-NK 01611-50625 | 1 | $5.37 | |||
| 120 | Protector Rubber 30418-61742 | 1 | $2.52 | |||
| 130 | Washer 3F760-53540 | 1 | $4.15 | |||
| 140 | Lock Nut (Locknut) W2336-06100 02552-50060 | 1 | $1.51 | |||
Showing 1 to 15 of 15 parts
Related Assemblies
-
DIAG-N11001-93345 N11001 CABIN
View Diagram -
DIAG-N12001-93345 N12001 DAMPER
View Diagram -

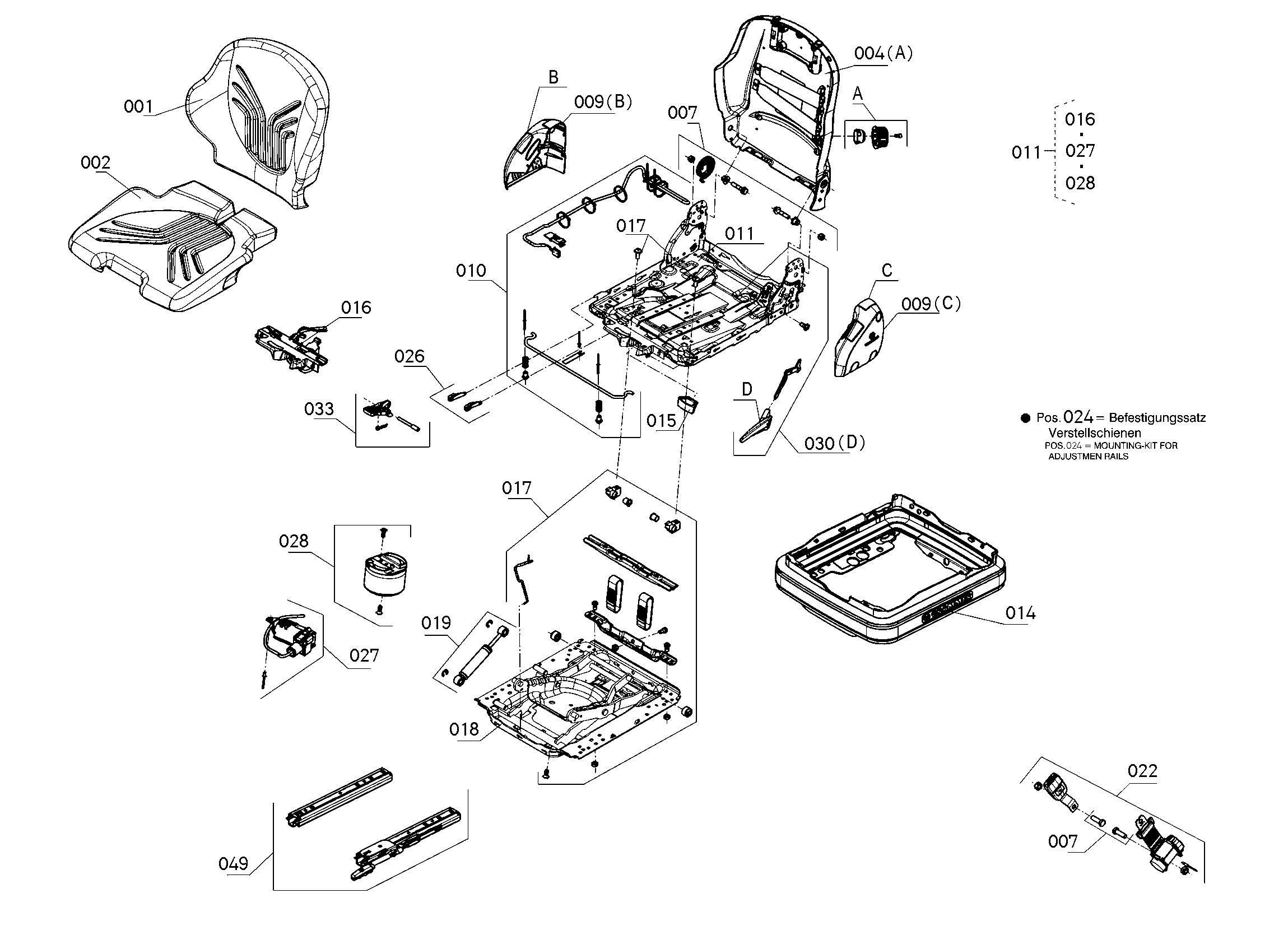

DIAG-M00300-93345 M00300 AIR RIDE SEAT
View Diagram
