Kubota SSV75C N11002 CABIN Parts Diagram
Exploded-view parts diagram "N11002 CABIN" for the Kubota SSV75C. 14 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| Bolt 01125-50816 | 1 | $0.99 | ||||
| BOLT V0511-34180 V0511-34182 | 1 | $17.96 | ||||
| BUSHING V0511-34480 PT001-66260 | 1 | $7.81 | ||||
| Cabin Cushion V0511-34110 | 1 | $46.99 | ||||
| CAP, RUBBER (PLU TD170-71070 | 1 | $2.09 | ||||
| COLLAR V0511-34122 V0511-34123 | 1 | $52.89 | ||||
| Cotter Pin (Split Pin) 05511-50540 | 1 | $0.60 | ||||
| COVER 66204-51160 | 1 | $10.60 | ||||
| COVER(CAB,REAR) V1311-33020 V1311-33022 | 1 | $36.46 | ||||
| CUSHION V0511-34130 | 1 | $36.17 | ||||
| CUSHION V0511-34150 | 1 | $92.56 | ||||
| GROMMET(18) V1311-33390 | 1 | $6.01 | ||||
| PIN V1311-34160 | 1 | $35.46 | ||||
| Plain Washer (Flat Washer) 04011-00160 04011-50160 | 1 | $0.60 | ||||
Showing 1 to 14 of 14 parts
Related Assemblies
-

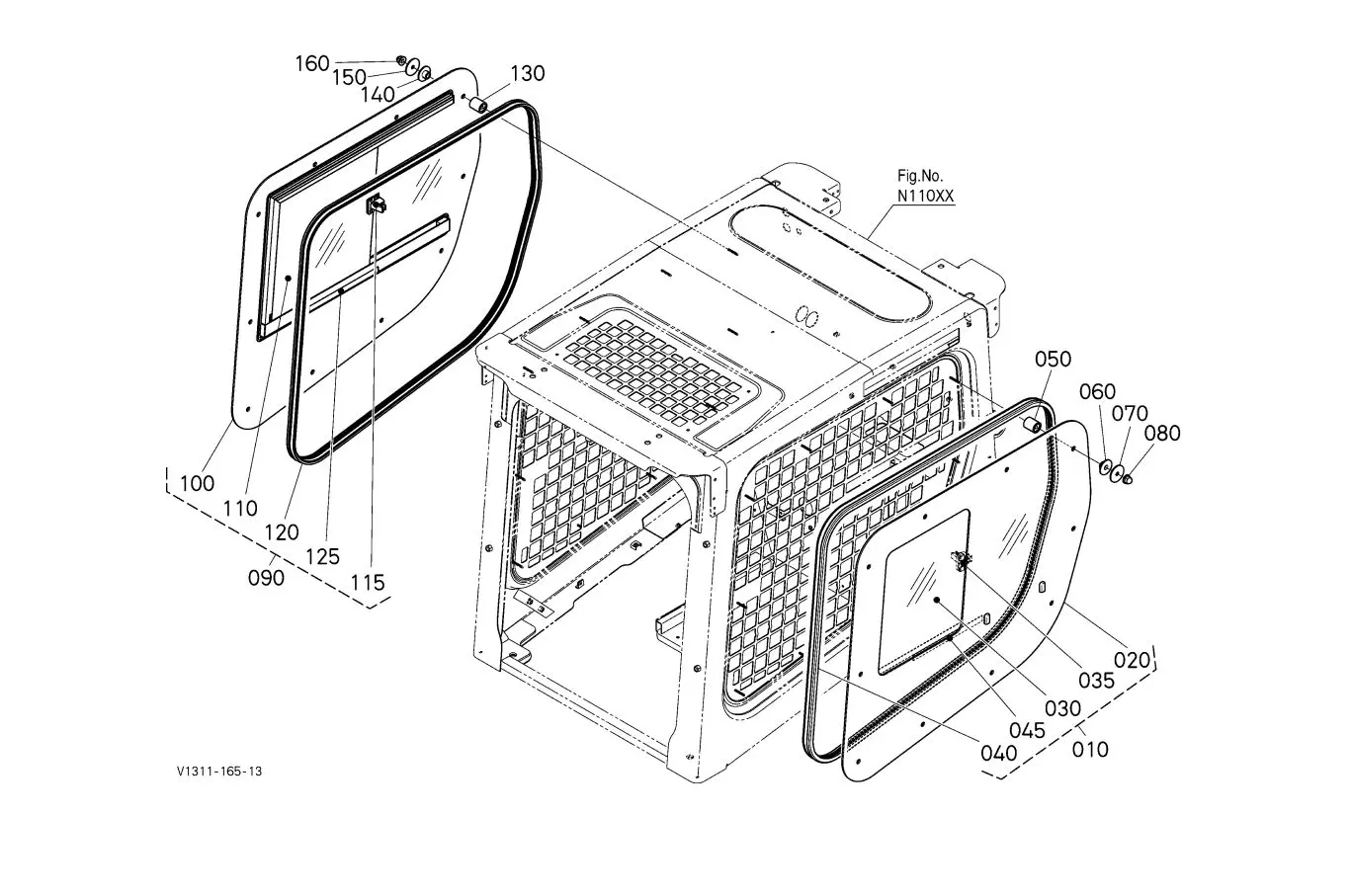

DIAG-N11200-93348 N11200 SIDE WINDOW
View Diagram -

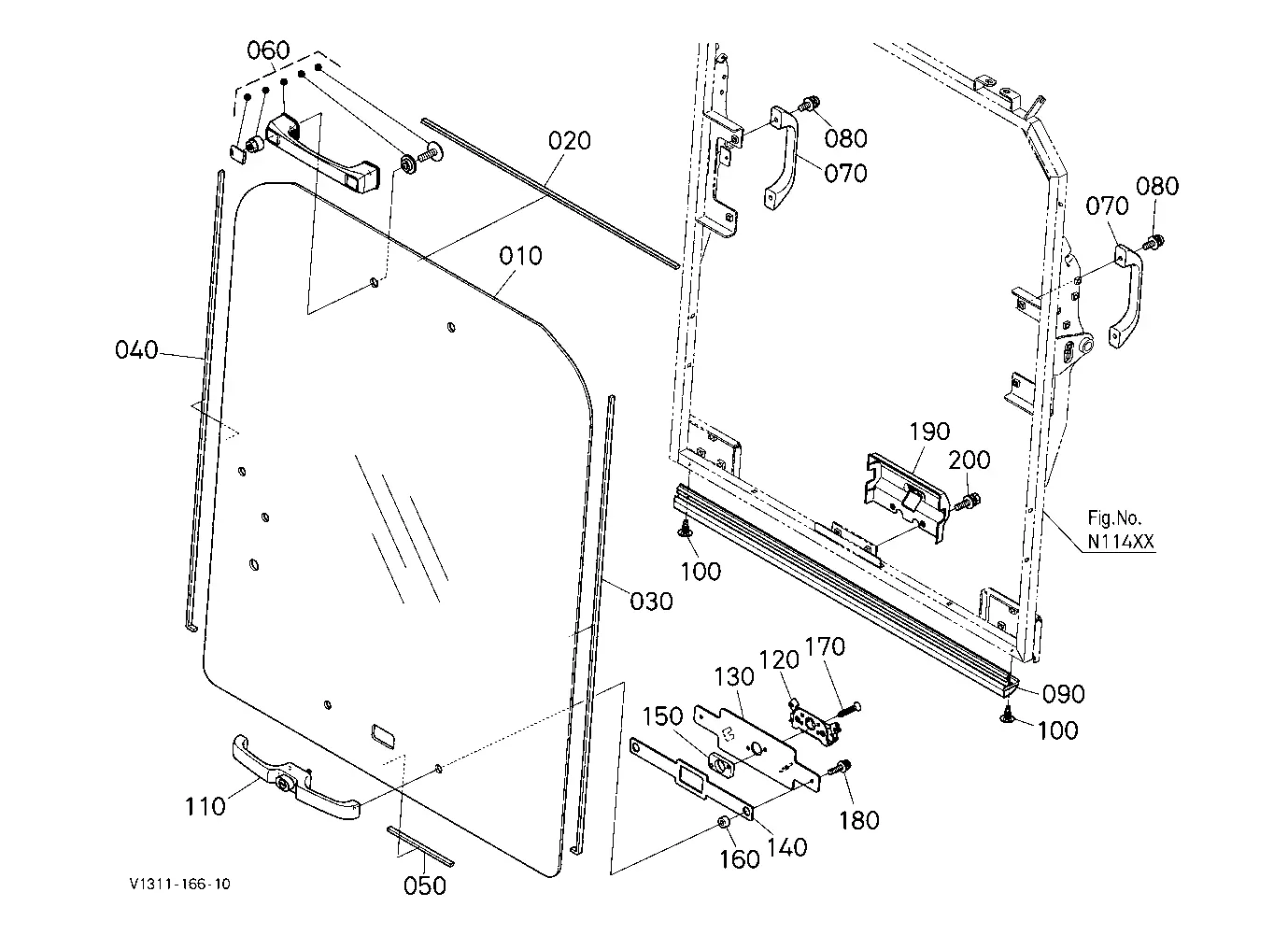

DIAG-N11300-93348 N11300 FRONT WINDOW GLASS
View Diagram -

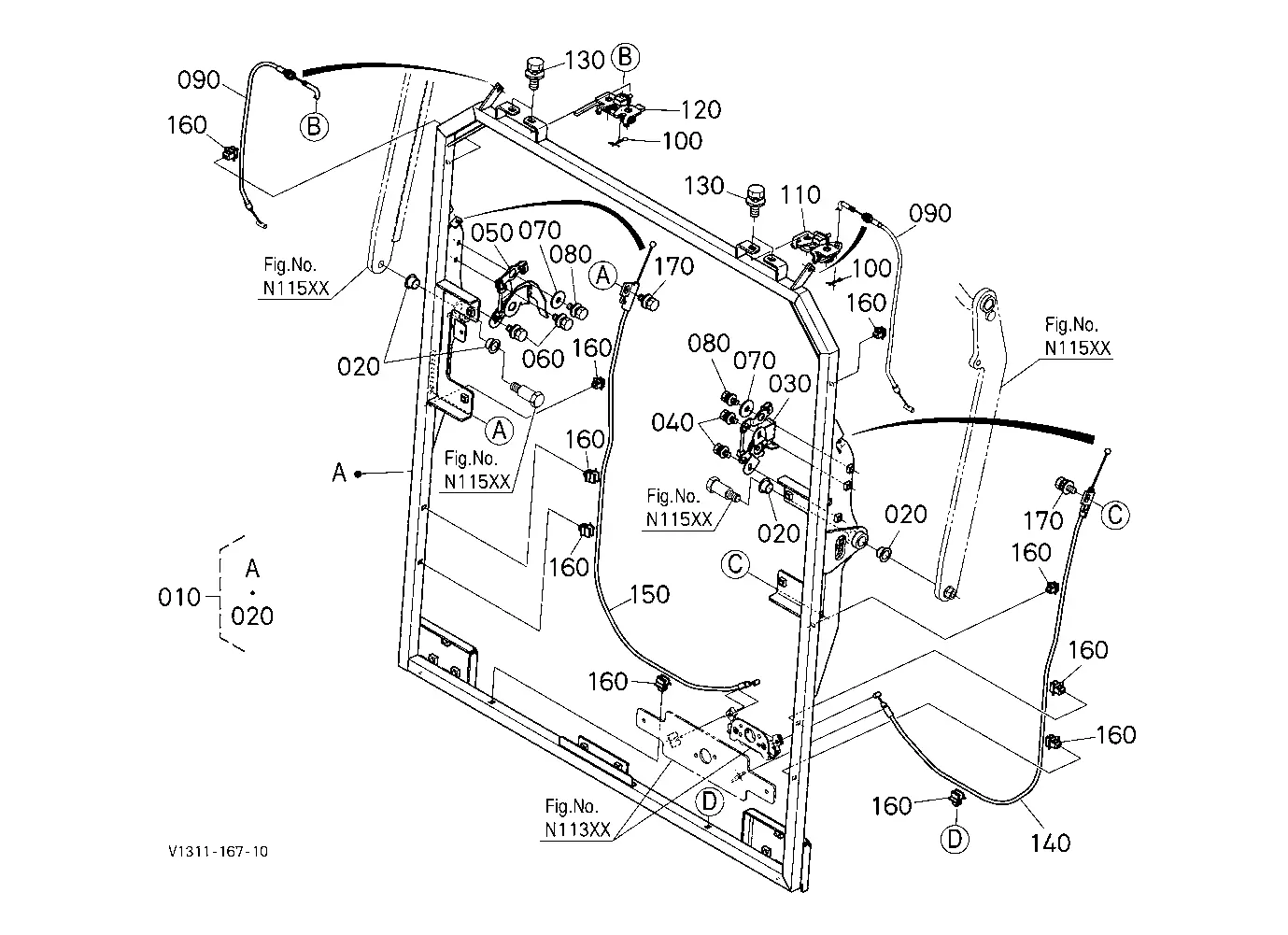

DIAG-N11400-93348 N11400 FRONT WINDOW FRAME
