| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| ABI ENGINE - 8035 ZTS 332/S8048 | 1 | $13,585.66 | ||||
| 2 | Plug 02/630456 | 1 | $3.46 | |||
| 3 | PLUG 02/634206 | 1 | $9.69 | |||
| 4 | Plug core d=40mm 333/D1839 | 1 | $12.79 | |||
| 7 | Screw 826/10731 | 1 | $14.18 | |||
| 10 | PLUG 02/630702 | 1 | $17.24 | |||
| 11 | Bearing 02/634203 400/11176 | 1 | $13.42 | |||
| 11 | Bush 02/634709 | 1 | $360.90 | |||
| 11 | Bush -0.5mm unders 02/634710 | 1 | $463.78 | |||
| 12 | DOWEL 02/630017 | 1 | $15.98 | |||
| 13 | DOWEL 02/630018 | 1 | $12.11 | |||
| 14 | BEARING 02/630013 | 1 | $28.23 | |||
| 15 | PLUG 02/630014 | 1 | $12.11 | |||
| 16 | BEARING 02/630707 | 1 | $60.24 | |||
| 17 | SEAL REAR OIL 02/634013 | 1 | $212.14 | |||
| 18 | Shaft kit oil pump 02/634768 332/G1855 | 1 | $1,302.54 | |||
| 19 | Dowel 02/630024 | 1 | $3.17 | |||
| 20 | STUD 826/10719 | 1 | $6.90 | |||
| 21 | Pin 02/630019 400/D2975 | 1 | $1.91 | |||
| 22 | Stud 826/10720 | 1 | $11.16 | |||
| 23 | STUD 02/630022 | 1 | $11.69 | |||
| 24 | PLUG 02/630007 | 1 | $11.32 | |||
| 25 | CAP -BEARING ASSY 02/634007 | 1 | $214.47 | |||
| 29 | SCREW 02/634005 | 1 | $13.05 | |||
| 30 | CAP -BEARING ASSY 02/634008 | 1 | $225.89 | |||
| 35 | CAP -BEARING ASSY 02/634009 | 1 | $207.16 | |||
| 40 | Seal oil 02/630544 | 1 | $104.17 | |||
| 41 | Bolt 02/634674 | 1 | $2.32 | |||
| 43 | SCREW 02/634112 | 1 | $18.30 | |||
| 45 | Screw 826/10745 | 1 | $10.82 | |||
| 46 | NUT 02/634059 | 1 | $4.93 | |||
| 47 | WASHER 02/630108 | 1 | $16.66 | |||
| 48 | WASHER SPRING 02/630134 | 1 | $16.66 | |||
| 50 | Cover 02/634767 | 1 | $12.64 | |||
| 51 | GASKET 02/203009 | 1 | $10.15 | |||
| 52 | Screw 02/630541 | 1 | $14.76 | |||
Showing 1 to 36 of 36 parts
Related Assemblies
-

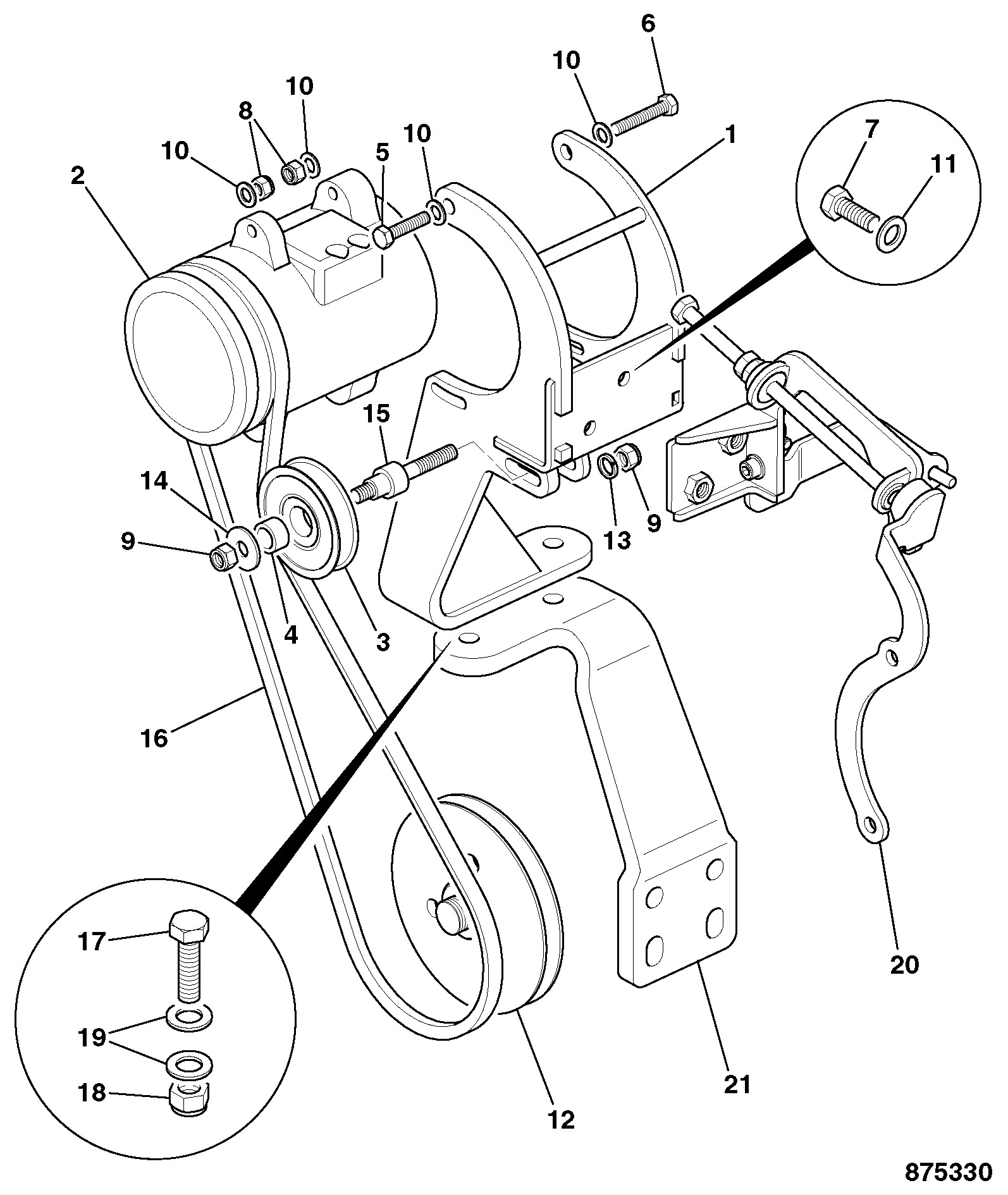

DIAG-M7-3-2-398070 M7-3-2 COMPRESSOR AIRCON OPTION 8035ZTS
View Diagram -

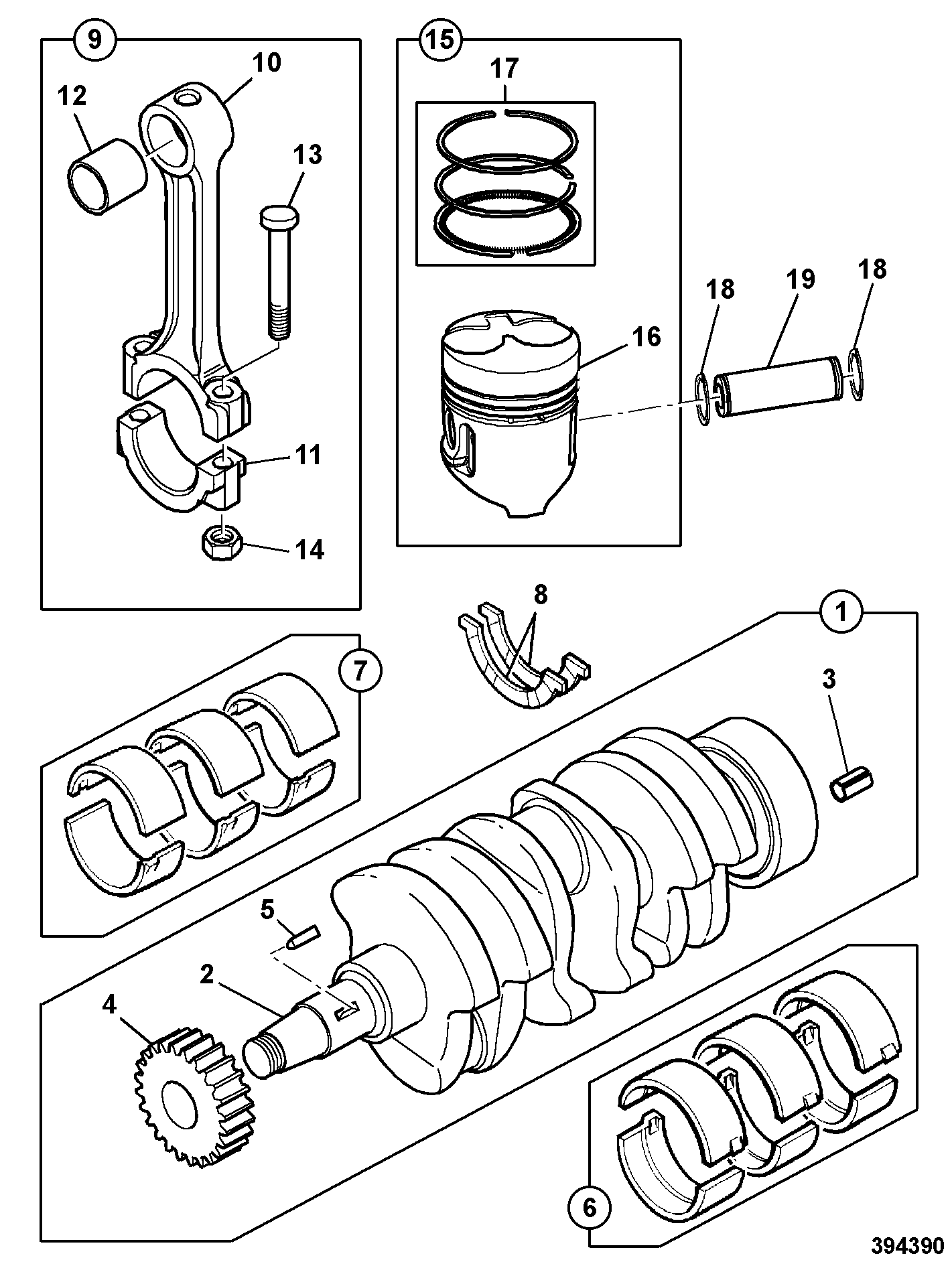

DIAG-N1-4-10-398070 N1-4-10 CRANKSHAFT BEARINGS, PISTONS CONRODS
View Diagram -

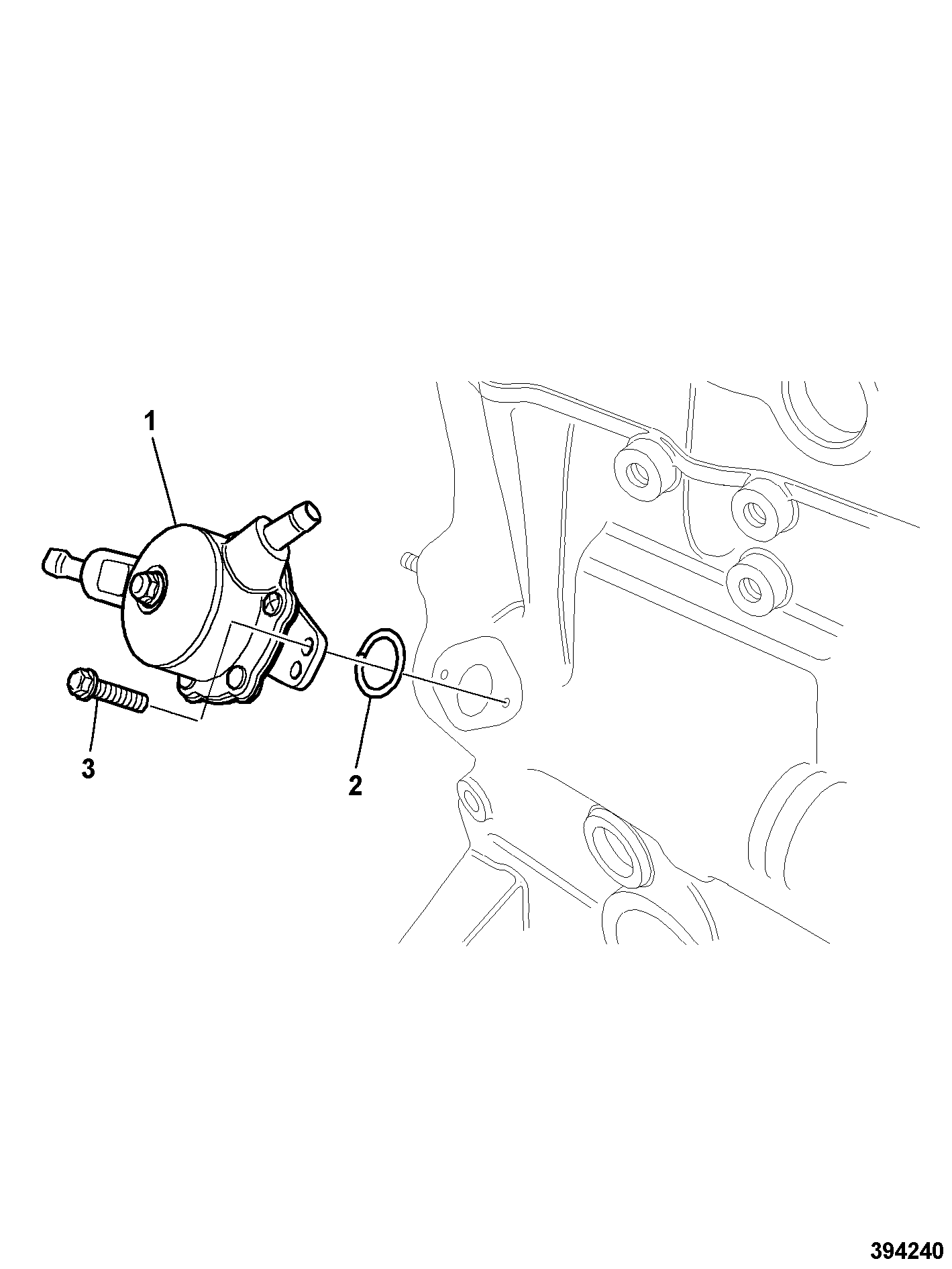

DIAG-M6-5-2-398070 M6-5-2 PUMP FUEL LIFT HM BUILD
View Diagram
