Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|

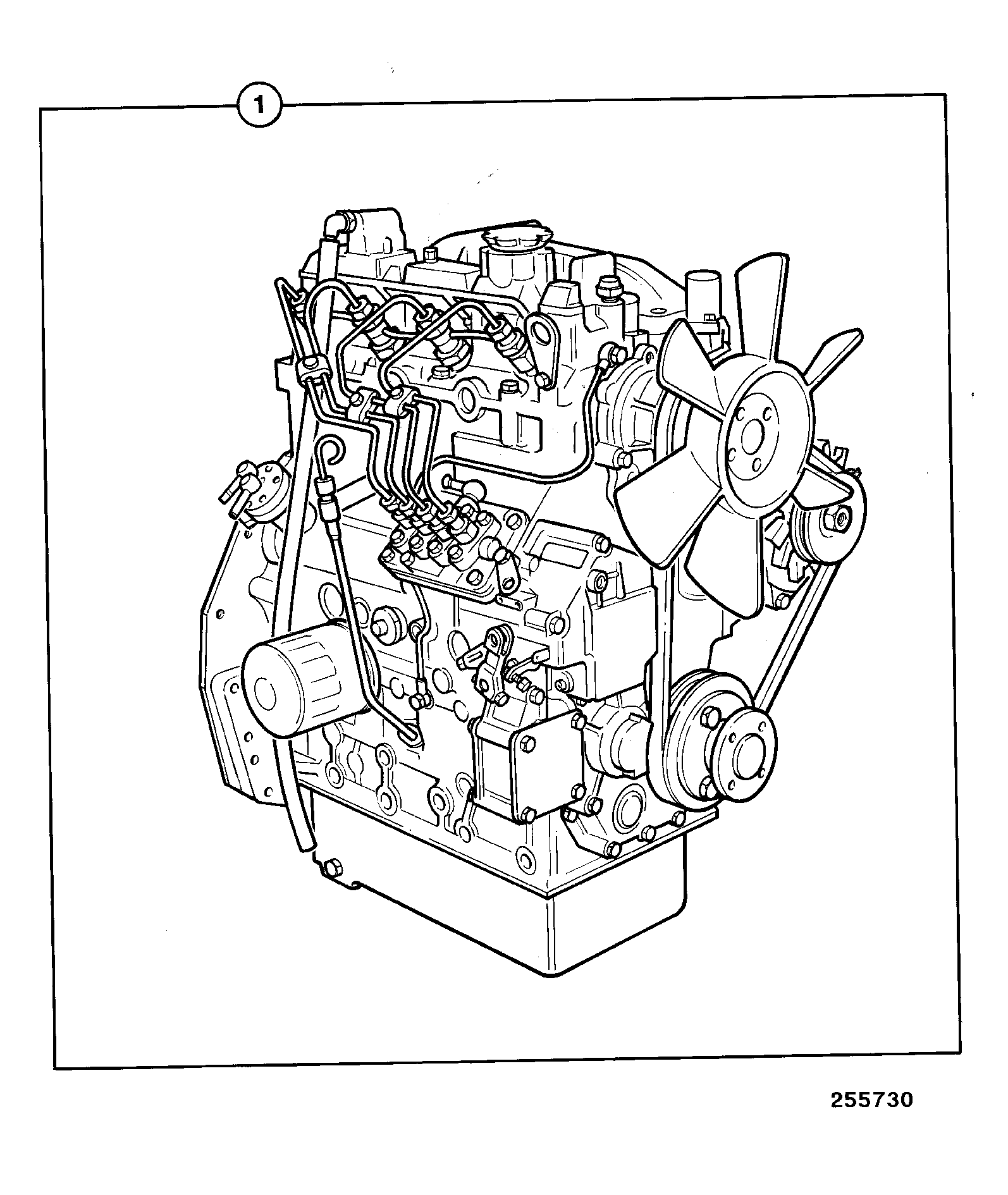

| Long engine 332/R7146 400/D4265 | 1 | $12,743.80 | ||||
| 2 | PLUG 02/634206 | 1 | $9.69 | |||
| 3 | Plug core d=40mm 333/D1839 | 1 | $12.79 | |||
| 4 | PLUG 02/634202 | 1 | $13.57 | |||
| 5 | PLUG 02/630702 | 1 | $17.24 | |||
| 7 | Plug 02/630456 | 1 | $3.46 | |||
| 8 | PLUG 02/630007 | 1 | $11.32 | |||
| 9 | Stud 826/10720 | 1 | $11.16 | |||
| 10 | STUD 02/630022 | 1 | $11.69 | |||
| 11 | Pin 02/630019 400/D2975 | 1 | $1.91 | |||
| 12 | Dowel 02/630024 | 1 | $3.17 | |||
| 13 | DOWEL 02/630017 | 1 | $15.98 | |||
| 14 | DOWEL 02/630018 | 1 | $12.11 | |||
| 15 | SEAL REAR OIL 02/634013 | 1 | $212.14 | |||
| 16 | PLUG 02/630014 | 1 | $12.11 | |||
| 17 | BEARING 02/630013 | 1 | $28.23 | |||
| 18 | BEARING NEEDLE 02/634002 | 1 | $17.91 | |||
| 19 | BEARING NEEDLE 02/634001 | 1 | $69.51 | |||
| 20 | Shaft kit oil pump 02/634768 332/G1855 | 1 | $1,302.54 | |||
| 21 | Bearing 02/634203 400/11176 | 1 | $13.42 | |||
| 21 | Bush 02/634709 | 1 | $360.90 | |||
| 21 | Bush -0.5mm unders 02/634710 | 1 | $463.78 | |||
| 22 | STUD 826/10719 | 1 | $6.90 | |||
| 23 | CAP -BEARING ASSY 02/634004 | 1 | $218.79 | |||
| 24 | SCREW 02/634005 | 1 | $13.05 | |||
| 26 | Screw 826/10744 | 1 | $13.93 | |||
| 27 | CAP -BEARING ASSY 02/634007 | 1 | $214.47 | |||
| 31 | CAP -BEARING ASSY 02/634008 | 1 | $225.89 | |||
| 35 | CAP -BEARING ASSY 02/634009 | 1 | $207.16 | |||
| 38 | Screw 826/10745 | 1 | $10.82 | |||
| 40 | PLATE 02/634010 | 1 | $115.56 | |||
| 41 | Screw 826/10731 | 1 | $14.18 | |||
| 42 | SCREW 02/634112 | 1 | $18.30 | |||
| 43 | Bolt 02/634674 | 1 | $2.32 | |||
| 44 | NUT 02/634059 | 1 | $4.93 | |||
| 45 | WASHER 02/630108 | 1 | $16.66 | |||
| 46 | WASHER SPRING 02/630134 | 1 | $16.66 | |||
| 47 | Cover . 02/634948 | 1 | $9.35 | |||
| 48 | GASKET 02/634094 | 1 | $12.69 | |||
| 49 | SCREW 02/630102 | 1 | $2.62 | |||
Showing 1 to 40 of 40 parts
Related Assemblies
-
DIAG-N1-1-1-394176 N1-1-1 ENGINE, COMPLETE
View Diagram -

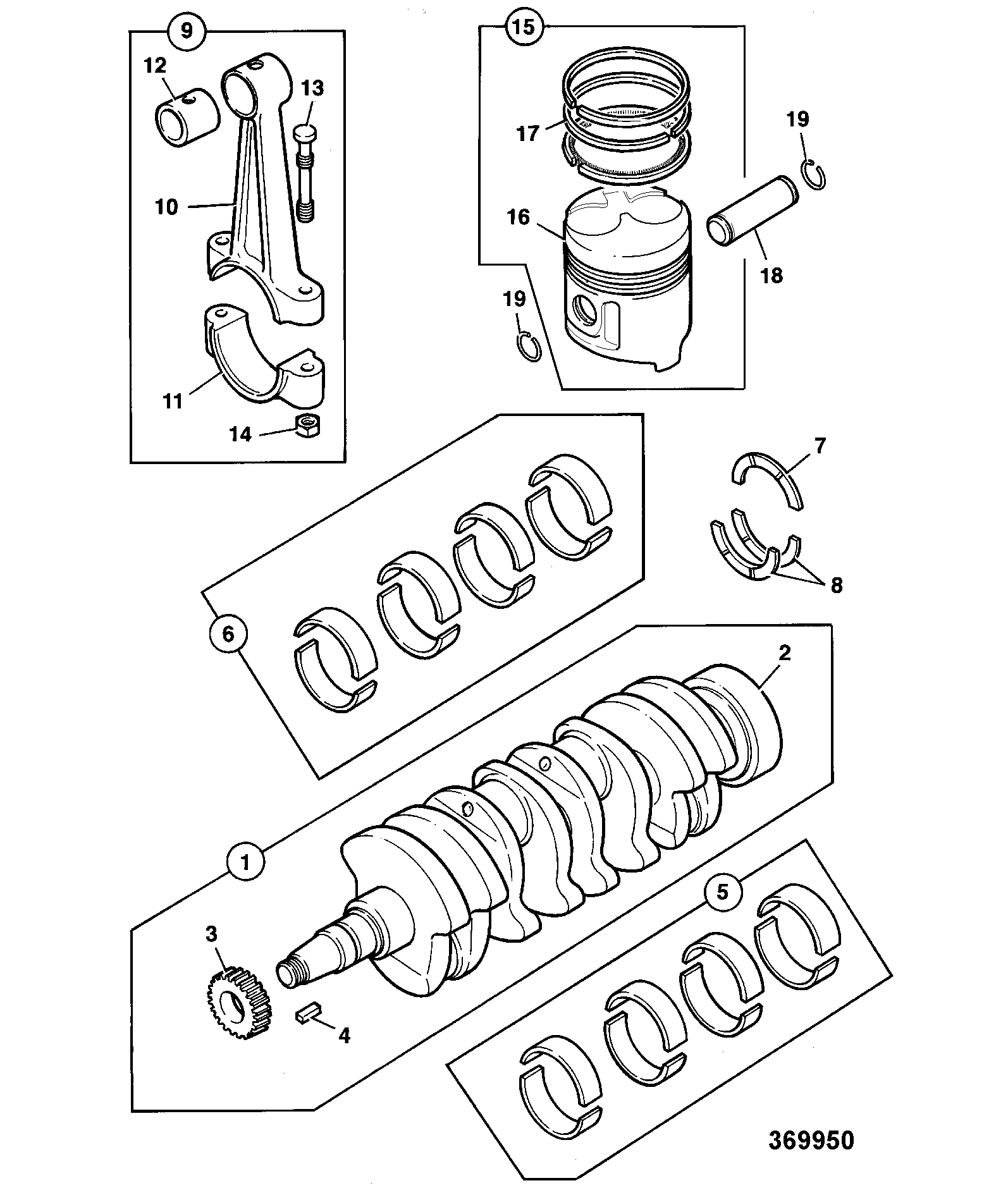

DIAG-N1-4-1-394176 N1-4-1 CRANKSHAFT, BEARINGS PISTONS & CON-RODS
View Diagram -
DIAG-M7-7-1-394176 M7-7-1 HEATER ENGINE BLOCK
View Diagram
