Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | RADIATOR 30/926586 | 1 | $1,151.41 | |||
| 2 | COOLER- OIL 30/926587 | 1 | $597.20 | |||
| 3 | RAD TOP HOSE 805 834/10620 | 1 | $254.11 | |||
| 4 | RAD BOTTOM HOSE - ATB 834/00847 | 1 | $154.31 | |||
| 5 | Bracket mounting e 234/03704 | 1 | $1,356.48 | |||
| 6 | TANK EXPANSION 162/03297 | 1 | $396.56 | |||
| 7 | CAP 30/926114 160/01980 | 1 | $55.99 | |||
| 8 | RUBBER HOSE 1100MM 648/21312 | 1 | $14.18 | |||
| 9 | CLIP - WORMDRIVE 40/60mm 2201/0011 2201/0010 | 1 | $1.86 | |||
| 10 | '(W) (P) CLIP - WORMDRIVE 12/22mm(KANBAN 2201/0003 | 1 | $5.72 | |||
| 11 | CLIP SNAPPER 231/40014 | 1 | $1.39 | |||
| 12 | CABLE TIE - BLACK 300mm 121/77603 | 1 | $0.45 | |||
| 13 | CABLE TIE 150mm 826/01162 | 1 | $4.17 | |||
| 14 | SET-SCREW M10 L-_30mm 1315/0408D | 1 | $1.55 | |||
| 15 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.00 | |||
| 16 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.00 | |||
| 17 | SET-SCREW M_8 L-_20mm 1315/0305D | 1 | $1.25 | |||
| 18 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $6.15 | |||
| 19 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.00 | |||
| 20 | WASHER PLAIN 7/16" 1411/0004D | 1 | $5.24 | |||
Showing 1 to 20 of 20 parts
Related Assemblies
-
DIAG-M4-3-1-398154 M4-3-1 RADIATOR FITTINGS & MOUNTINGS
View Diagram -
DIAG-M4-4-2-398154 M4-4-2 COOLING PACK
View Diagram -

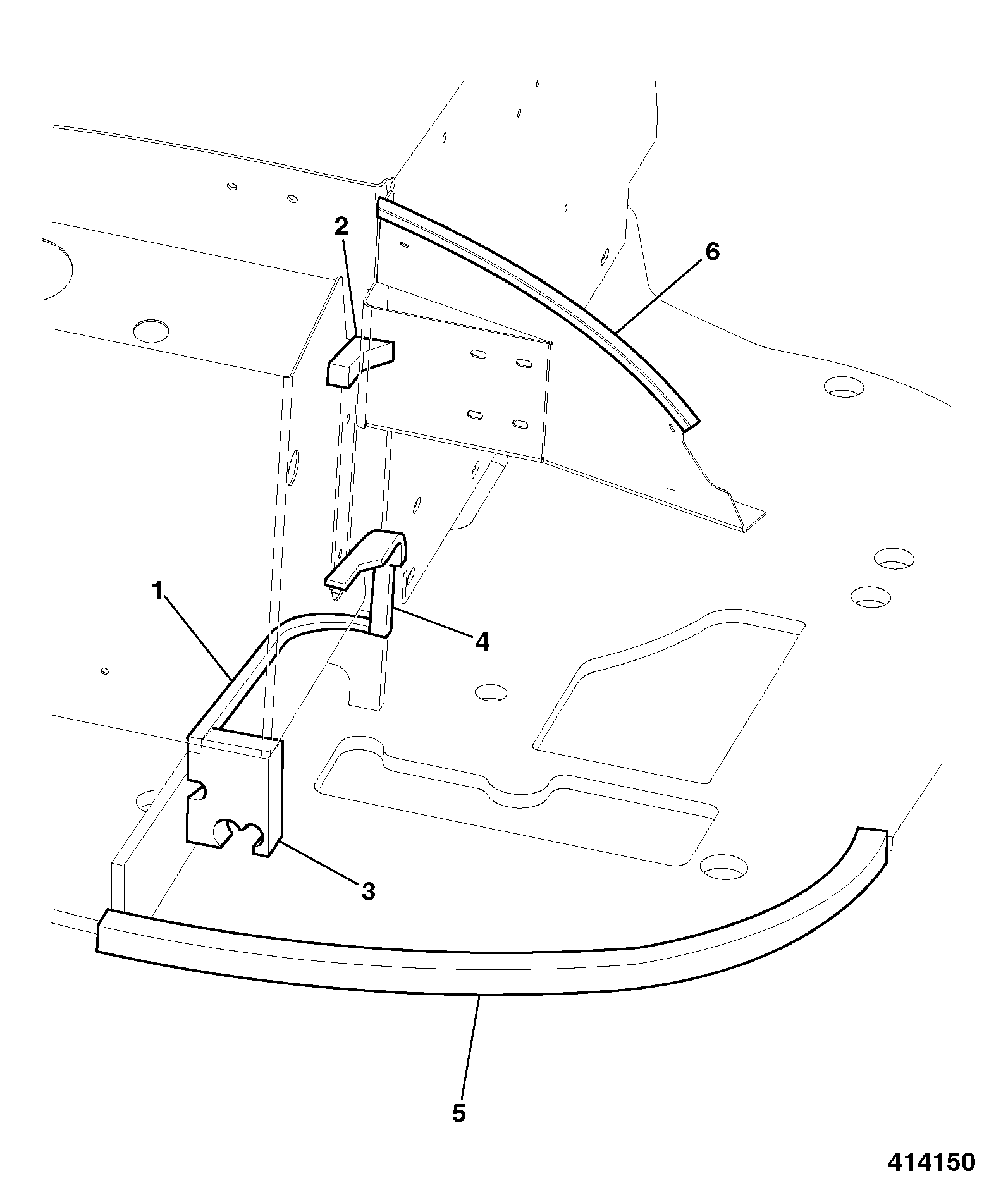

DIAG-M4-5-1-398154 M4-5-1 RADIATOR/OIL COOLER ANTI-RECIRCULATION SEALS
View Diagram
