Kubota M8200HD M31001 ROPS Parts Diagram
Exploded-view parts diagram "M31001 ROPS" for the Kubota M8200HD and Kubota M9000HD. 21 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 020 | BOLT * 0Y103-50624 | 1 | $2.23 | |||
| 020 | BOLT, FLANGE 01130-51040 01133-51040 | 1 | $2.87 | |||
| 025 | BOLT 01133-51032 | 1 | $3.31 | |||
| 025 | BOLT * 0Y103-50620 | 1 | $2.23 | |||
| 030 | WASHER, SPRING 0Y450-50060 | 1 | $0.64 | |||
| 040 | SET,BOLT 3A111-95200 3A112-95200 | 1 | $151.66 | |||
| 050 | Washer 04013-60600 04013-50200 | 1 | $0.60 | |||
| 060 | NUT 02254-50200 | 1 | $5.89 | |||
| 070 | Cotter Pin 05511-10430 05511-50430 | 1 | $0.41 | |||
| 080 | LABEL, ROPS CAUT 3A112-95540 3A111-95540 | 1 | $9.48 | |||
| 100 | BRACKET RH 3A151-91080 | 1 | $229.67 | |||
| 110 | BRACKET LH 3A151-91090 | 1 | $229.67 | |||
| 120 | BOLT 32530-71980 | 1 | $31.13 | |||
| 130 | Spring Washer - M16 04512-50160 04512-70160 | 1 | $1.05 | |||
| 140 | Nut Fastener 02076-50160 | 1 | $2.50 | |||
| 160 | ASSY BELT,SEAT 3A011-85300 Discontinued | 1 | $243.76 | |||
| 170 | COLLAR*** 52450-63660 | 1 | $9.97 | |||
| 170 | WASHER 58056-51170 | 1 | $5.61 | |||
| 180 | RUBBER, FENDER 3A011-87290 | 1 | $13.18 | |||
| 190 | RUBBER, FENDER 3A011-87340 | 1 | $13.18 | |||
| 200 | SPACER 38240-29940 | 1 | $3.67 | |||
Showing 1 to 21 of 21 parts
Related Assemblies
-
DIAG-000001-85847 000001 FREQUENTLY USED ITEMS
View Diagram -

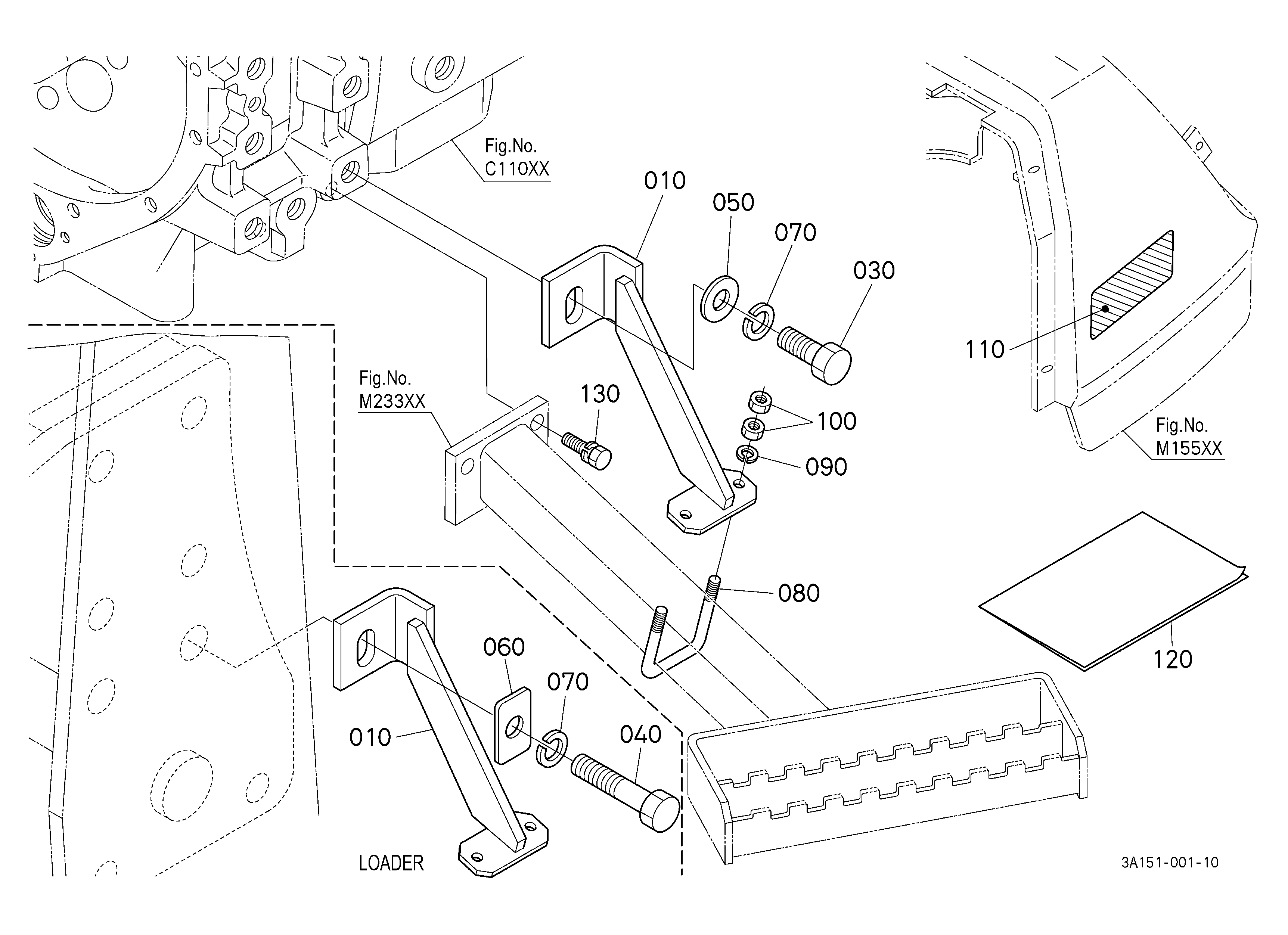

DIAG-U90500-85847 U90500 STEP SUPPORT KIT [OPTION]
View Diagram -

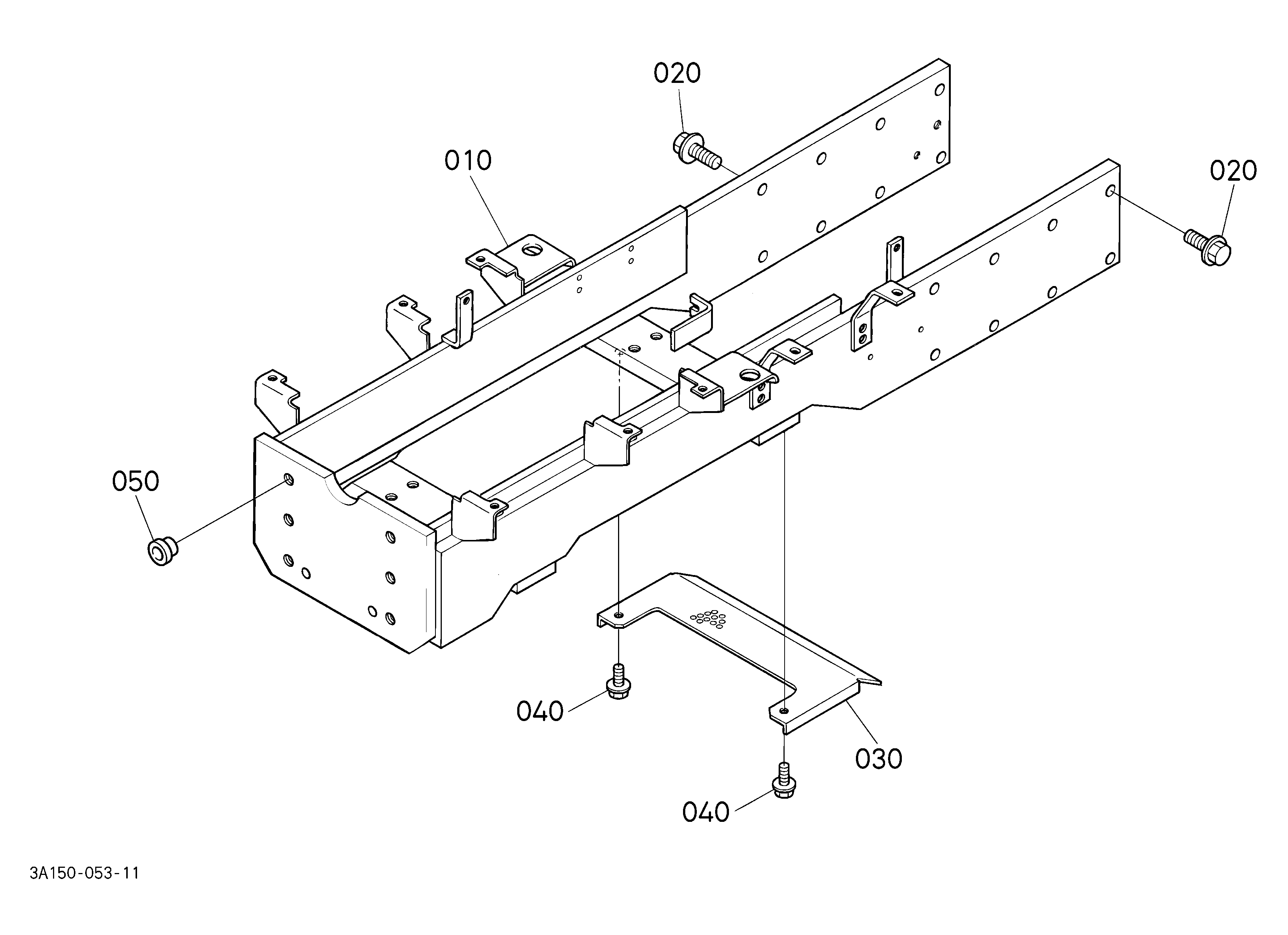

DIAG-G10500-85847 G10500 FRONT AXLE FRAME
