Kubota RTV900W8SE M31000 CANOPY Parts Diagram
Exploded-view parts diagram "M31000 CANOPY" for the Kubota RTV900W8SE. 6 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ROOF K7561-39612 K7561-39613 | 1 | $476.90 | |||
| 020 | BOLT (U, ROOF) K7561-39622 K7561-39623 | 1 | $6.29 | |||
| 030 | Accessory Kit Cushion K7561-39630 | 1 | $3.31 | |||
| 040 | Cushion (RTV Roof/Windshield/Canopy Kit Options) K7561-39640 | 1 | $4.46 | |||
| 050 | Cushion Plate K7561-39660 K7561-39662 | 1 | $4.34 | |||
| 060 | Locking Nut K7561-39650 K7561-39652 | 1 | $0.51 | |||
Showing 1 to 6 of 6 parts
Related Assemblies
-
DIAG-M30100-86229 M30100 ROPS
View Diagram -

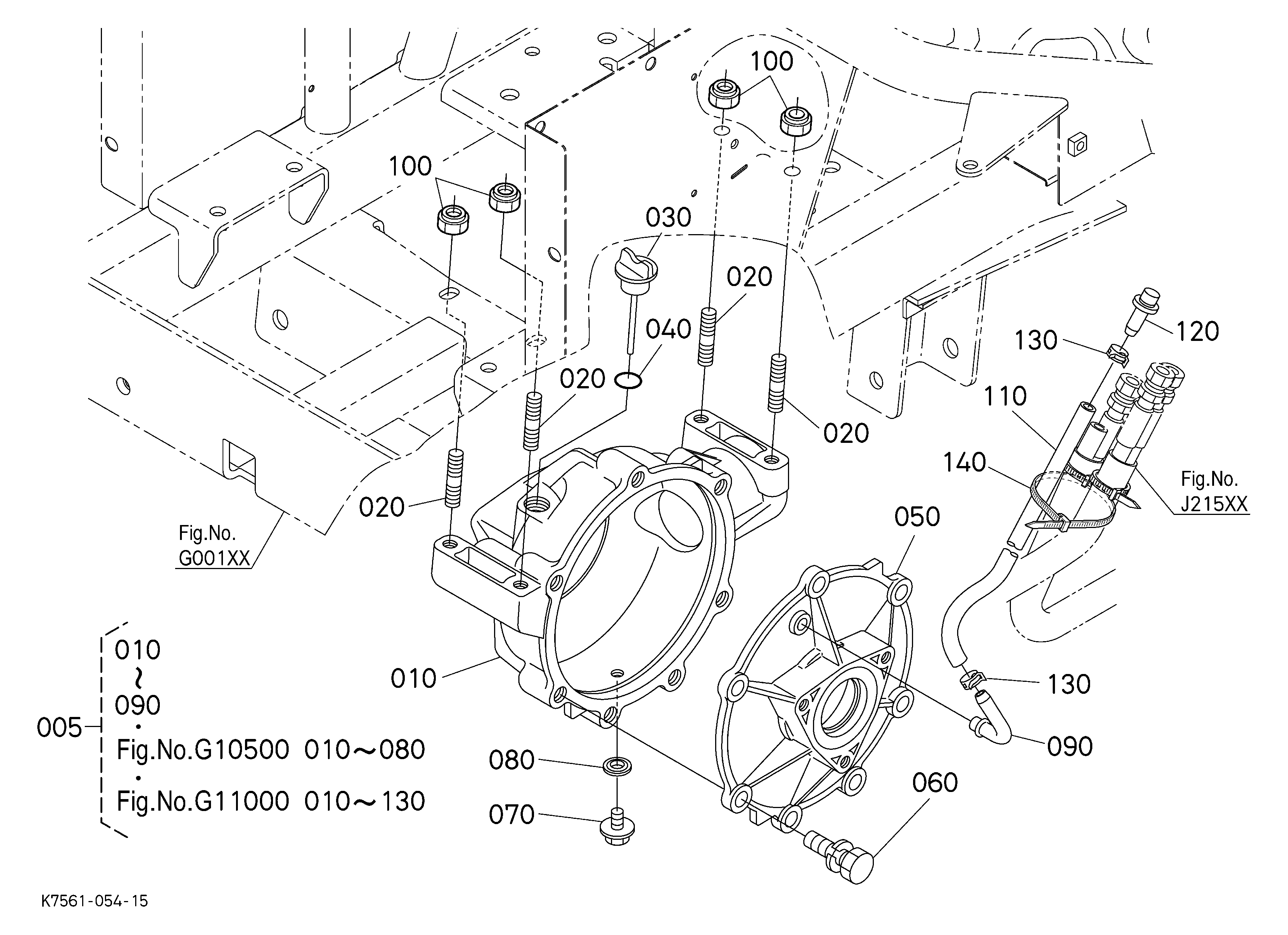

DIAG-G10100-86229 G10100 FRONT AXLE CASE
View Diagram -

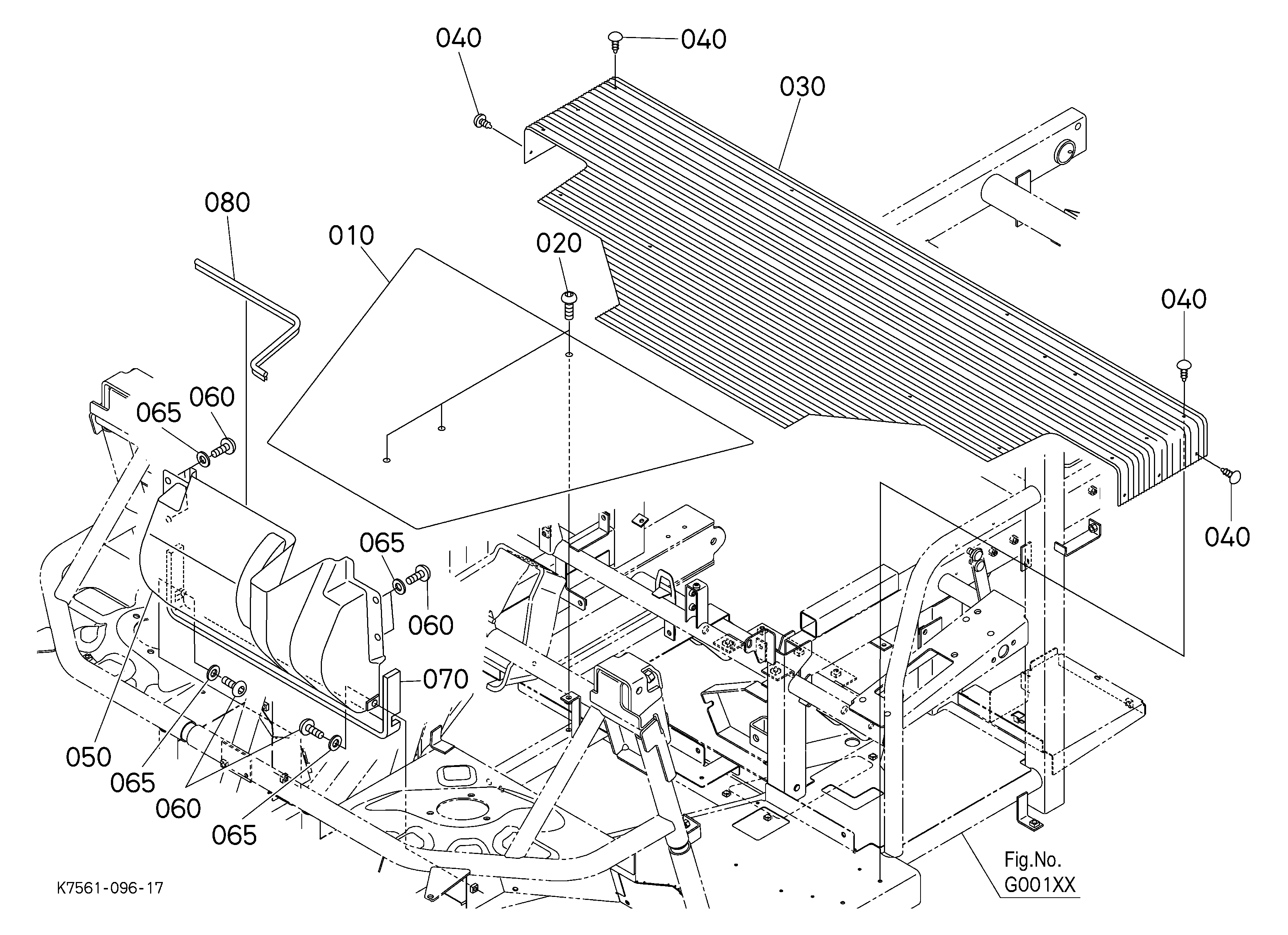

DIAG-M22500-86229 M22500 STEP
