Kubota BX23S M30100 ROPS Parts Diagram

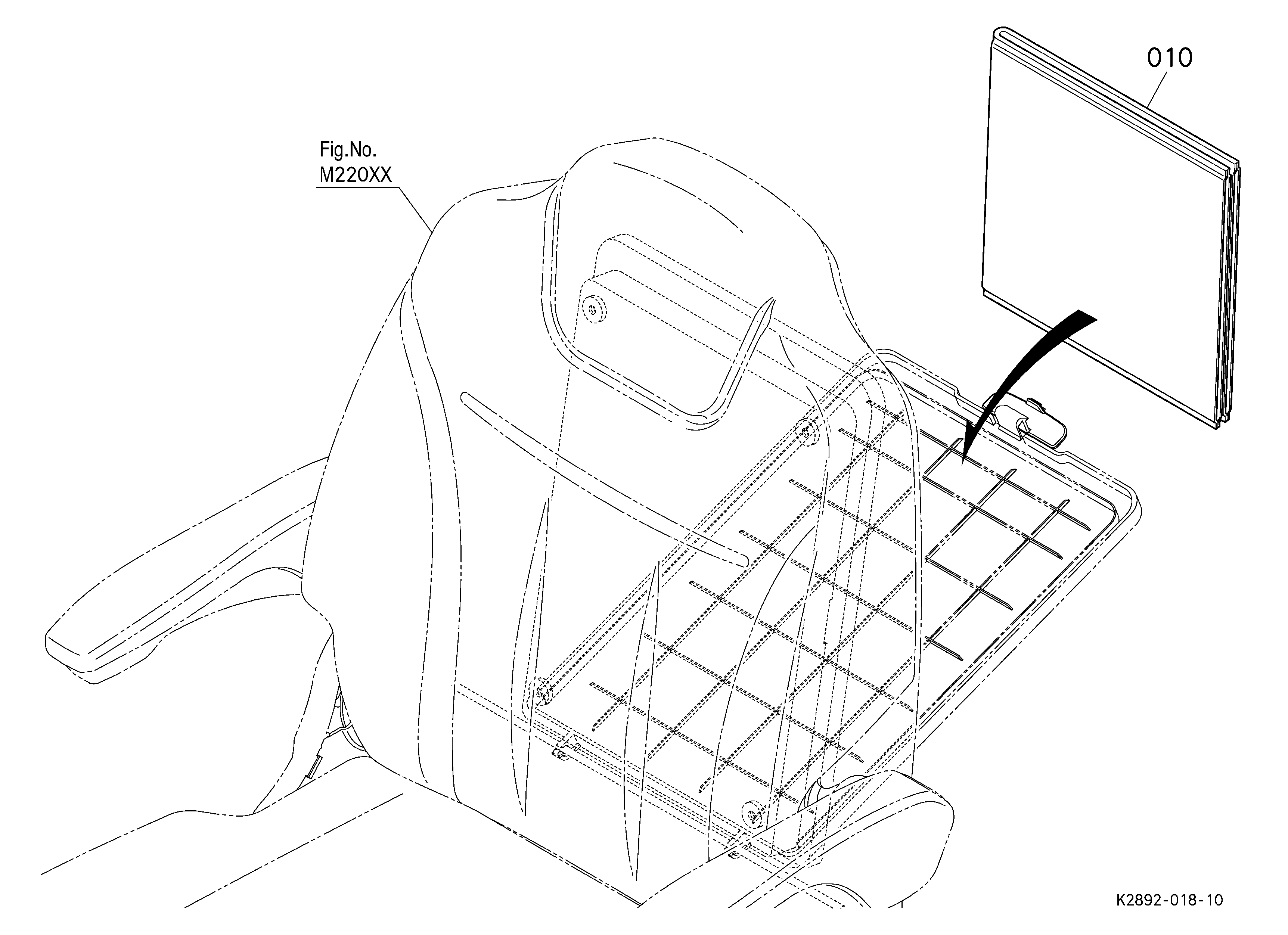

Exploded-view parts diagram "M30100 ROPS" for the Kubota BX23S and Kubota BX23S-1. 18 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.

Scroll to zoom Click a part # to view details

Ref # Part Number Qty. Avl. Price (USD) Action
020 LABEL, REFLECTOR K2591-65410 1 2 IN STOCK $7.75
030 Plain Washer (Flat Washer) 04013-10100 04013-50100 1 24 IN STOCK $0.60
040 BOLT 01138-51070 1 5 IN STOCK $6.86
060 LABEL, ROPS,WARN K2871-65640 1 AVAILABLE TO ORDER $3.35
090 LABEL WARNING (R K2591-65570 K2591-65572 1 AVAILABLE TO ORDER $3.52
100 BOLT, M16X2 K3211-82540 K3211-82543 1 AVAILABLE TO ORDER $7.38
110 ASSY PIN, SET K3211-82400 K3211-82403 1 AVAILABLE TO ORDER $13.11
120 NUT, HEX LOCK M1 K3211-82560 K3211-82563 1 AVAILABLE TO ORDER $2.60
130 BRACKET, RETAINE K2591-39560 K2591-39562 1 5 IN STOCK $2.87
140 Rail Cove Clamp 53721-61533 1 4 IN STOCK $23.87
150 M10 x 1.2 SQ Bolt K3151-82580 K3151-82583 1 7 IN STOCK $1.57
160 Flange Nut 02771-50100 1 1 IN STOCK $3.06
170 STAY(LIFT ROD) K2871-39180 1 AVAILABLE TO ORDER $17.72
180 ASSY BELT, SEAT K3411-56860 1 2 IN STOCK $125.59
190 Bolt, Flange 01774-51225 1 AVAILABLE TO ORDER $4.33
200 Locking Nut 02574-50120 02572-50120 1 13 IN STOCK $6.24
210 LABEL(ROPS WARNI K2877-65640 1 AVAILABLE TO ORDER $15.67
220 SET LABEL, ROPS K2597-65570 K3181-65903 1 AVAILABLE TO ORDER $6.59

Showing 1 to 18 of 18 parts
