Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | WA - EXHAUST BOX 332/W5784 | 1 | $115.15 | |||
| 2 | PRESSING -RH SIDE 332/W5782 | 1 | $47.59 | |||
| 4 | BASE EXHAUST -BOX SOUND PROOFING 332/W8526 | 1 | $106.74 | |||
| 5 | LH EXHAUST-BOX SOUND PROOFING 332/W8447 | 1 | $63.38 | |||
| 6 | RH EXHAUST-BOX SOUND PROOFING 332/W8465 | 1 | $81.78 | |||
| 7 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 8 | SET-SCREW M_8 L-_30mm 1315/0308D | 1 | $1.63 | |||
| 9 | SET-SCREW M_8 L-_20mm 1315/0305D | 1 | $10.29 | |||
| 10 | SET-SCREW M10 L-_40mm 1315/0410D | 1 | $2.49 | |||
| 11 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 12 | NUT M10 STD SELF LOCK 1370/0303Z 1370/0303D | 1 | $0.65 | |||
| 13 | NUT M_6 STD SELF LOCK 1370/0103 1370/0103D | 1 | $0.17 | |||
| 14 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 15 | WA - EXHAUSET NOISE DEFLECTOR 333/R1440 | 1 | $894.52 | |||
Showing 1 to 14 of 14 parts
Related Assemblies
-
DIAG-M3-5-1-400502 M3-5-1 MANIFOLD, EXHAUST
View Diagram -
DIAG-M3-6-2-400502 M3-6-2 EXHAUST BOX, ASSEMBLY
View Diagram -

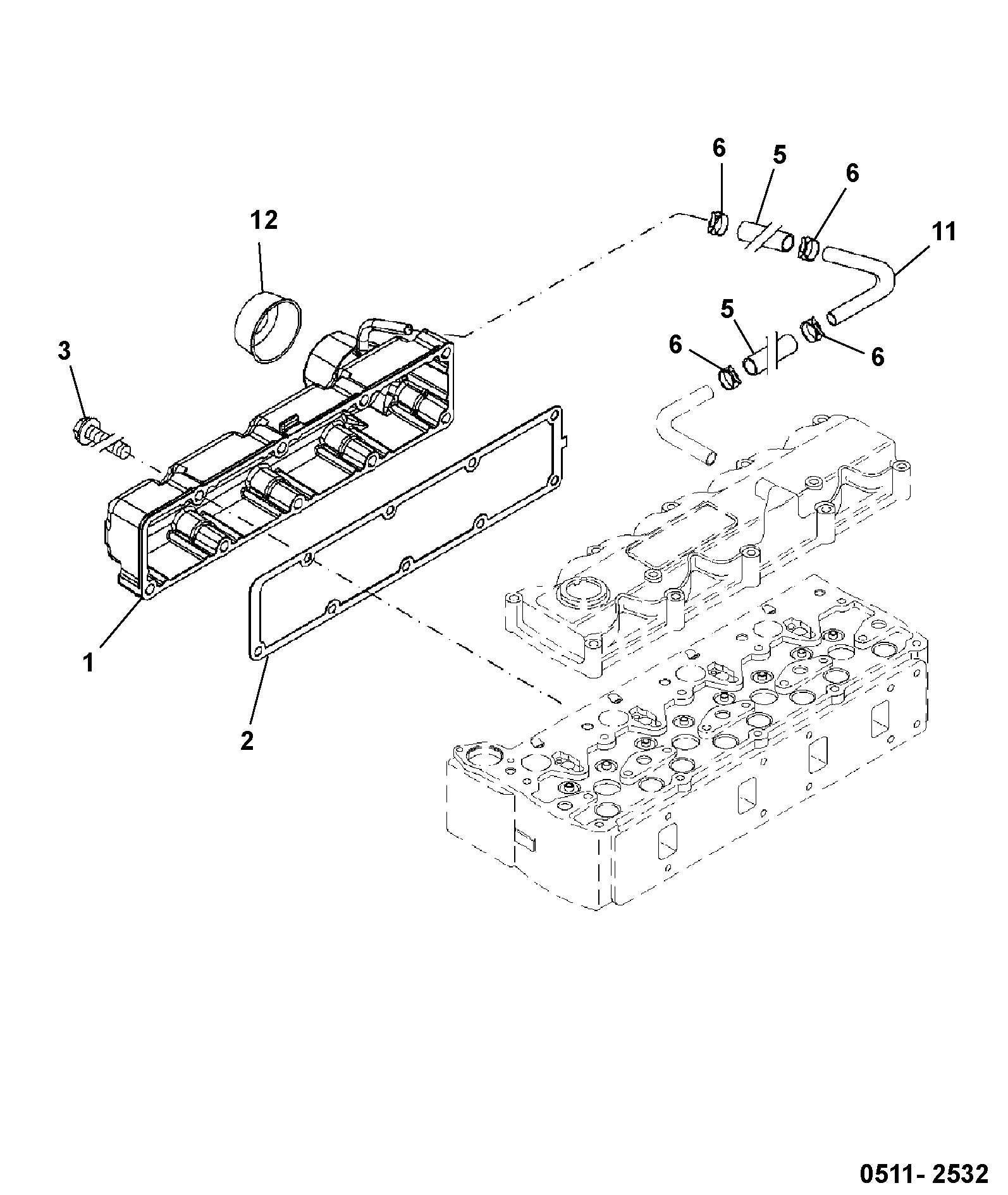

DIAG-M3-4-1-400502-12798394 M3-4-1 INTAKE MANIFOLD AND BREATHER
View Diagram
