Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| Adapter 90deg elbo 32/919301 32/925521 | 1 | $32.92 | ||||
| 1 | FILTER ASSEMBLY 32/919000 | 1 | $301.23 | |||
| 2 | ELEMENT, AIR FILTER-MAIN-PQ98 32/919001 | 1 | $48.47 | |||
| 3 | ELEMENT, AIR FILTER safety-PQ100 32/919002 | 1 | $33.04 | |||
| 4 | COVER ASSEMBLY 32/919003 | 1 | $54.14 | |||
| 4A | LATCH OVERCENTRE 32/925174 | 1 | $16.43 | |||
| 5 | VALVE VACCUATOR 32/915704 | 1 | $27.51 | |||
| 6 | AIR CLEANER MNTG BRKT 32/919100 | 1 | $27.10 | |||
| 7 | 54m BAR SWITCH (EM&LP) 335/D3073 716/F2027 | 1 | $76.83 | |||
| 8 | AIR FILTER MNTG BRKT 331/22151 | 1 | $41.54 | |||
| 9 | SETSCREW M8x35 1315/0309D | 1 | $2.40 | |||
| 10 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 11 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 12 | SET-SCREW M_8 L-_25mm 1315/0307D | 1 | $0.37 | |||
| 13 | TURBO INDUCTION HOSE 834/11020 | 1 | $44.35 | |||
| 14 | INDUCTION HOSE (INLET) 834/10981 | 1 | $18.23 | |||
| 15 | CLIP - WORMDRIVE 80/100mm(KANBAN) 2201/0015 | 1 | $7.00 | |||
| 16 | 'SPRING BAND CLIP 50-70mm(KANBAN) (P282) 2201/0012 2206/5070 | 1 | $12.64 | |||
| 17 | '(W) (P) CLIP - WORMDRIVE 12/22mm(KANBAN 2201/0003 | 1 | $5.72 | |||
Showing 1 to 19 of 19 parts
Related Assemblies
-

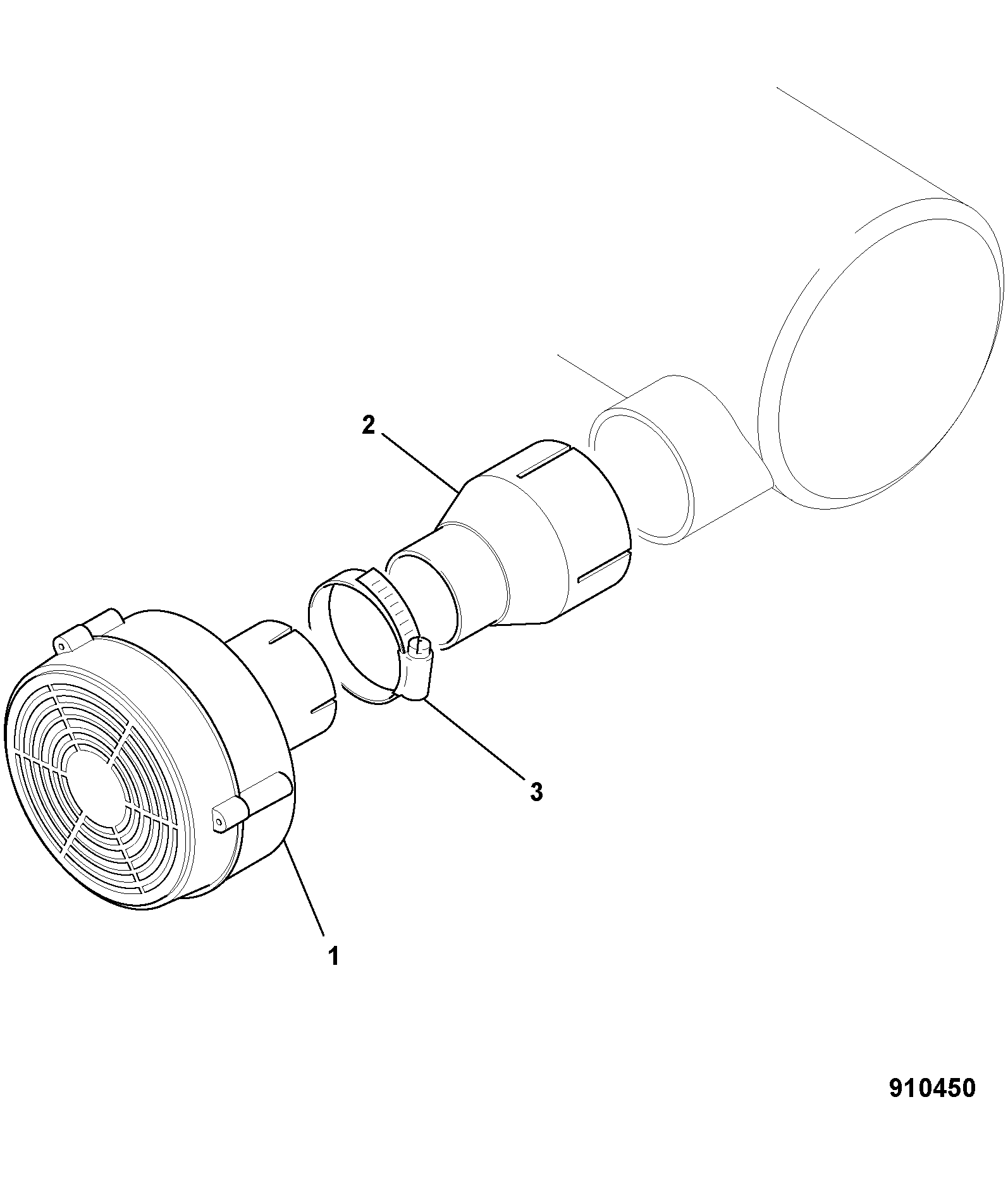

DIAG-M3-3-4-395377 M3-3-4 FILTER PRE-CLEANER HR OPTIONAL
View Diagram -

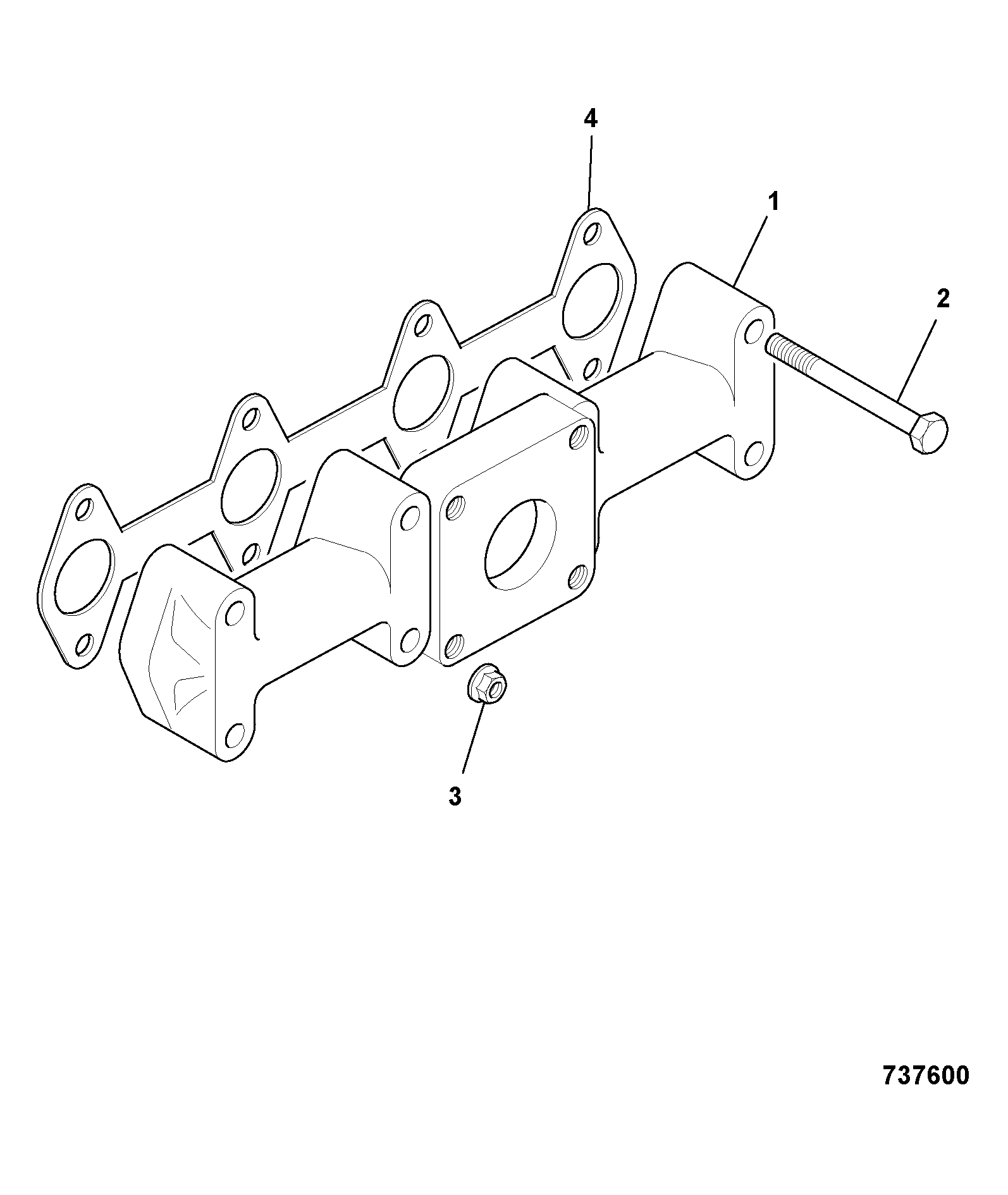

DIAG-M3-2-2-395377 M3-2-2 MANIFOLD, EXHAUST HR BUILD
View Diagram -

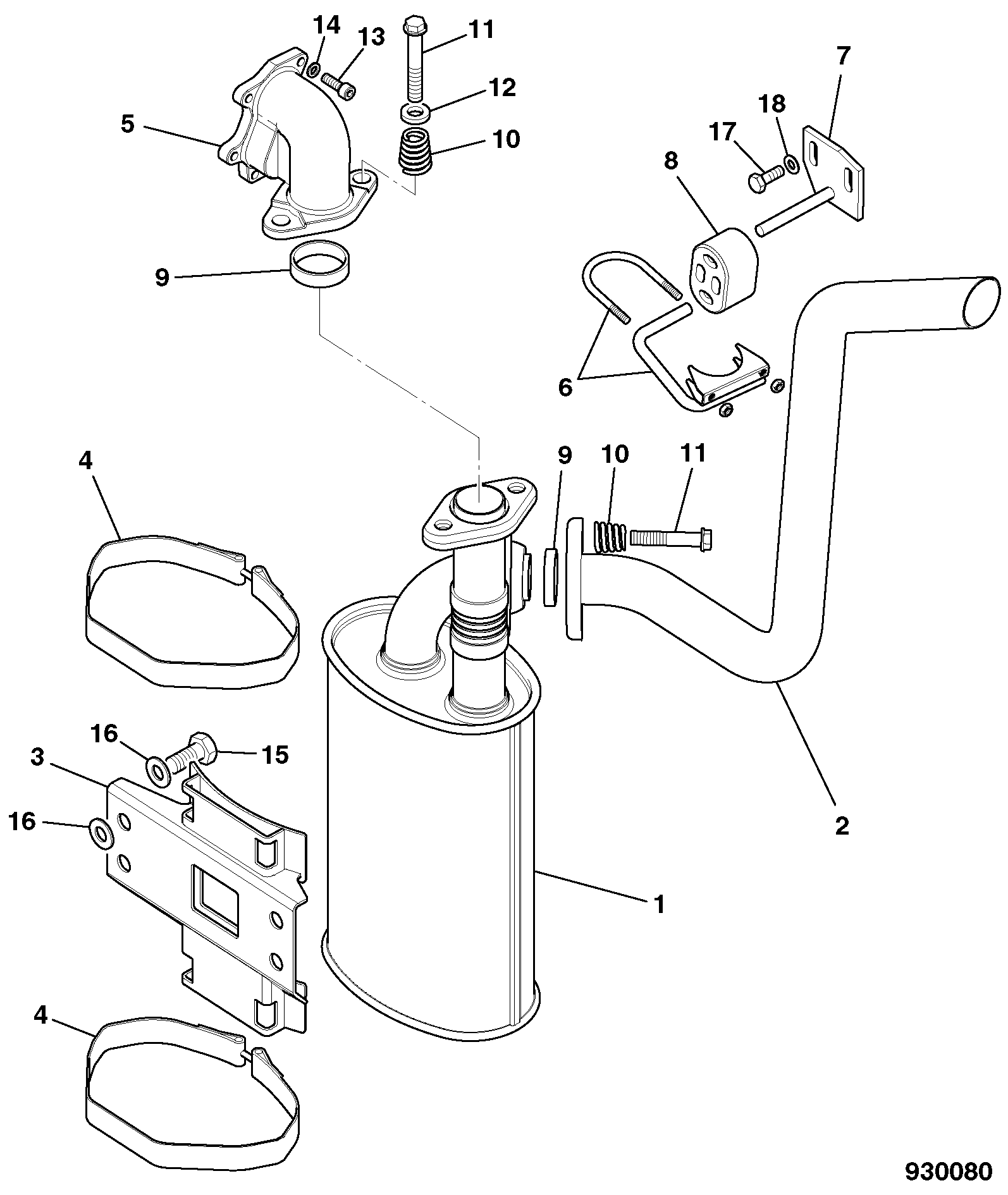

DIAG-M3-4-2-395377 M3-4-2 EXHAUST SYSTEM SPARK ARRESTER
View Diagram
