| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|

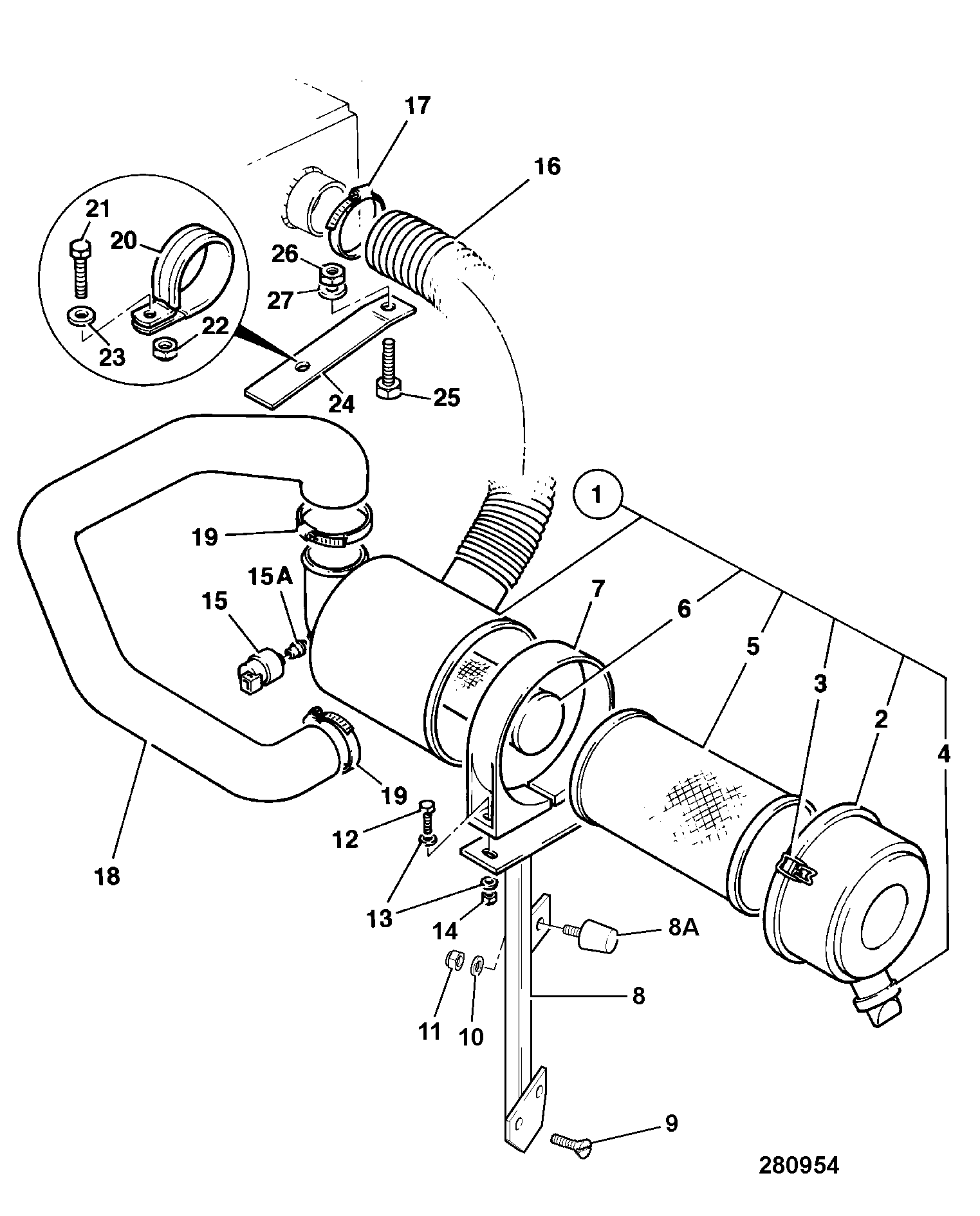

| 1 | FILTER ASSEMBLY 32/919000 | 1 | $301.23 | |||
| 2 | COVER ASSEMBLY 32/919003 | 1 | $54.14 | |||
| 3 | LATCH OVERCENTRE 32/925174 | 1 | $16.43 | |||
| 4 | VALVE vacuum dump 332/C4909 | 1 | $34.53 | |||
| 5 | ELEMENT, AIR FILTER-MAIN-PQ98 32/919001 | 1 | $48.47 | |||
| 6 | ELEMENT, AIR FILTER safety-PQ100 32/919002 | 1 | $33.04 | |||
| 7 | AIR CLEANER MNTG BRKT 32/919100 | 1 | $27.10 | |||
| 8 | 54m BAR SWITCH (EM&LP) 335/D3073 716/F2027 | 1 | $76.83 | |||
| 9 | ADAPTER ASSEMBLY 333/L8475 816/65035 | 1 | $62.83 | |||
| 10 | BRACKET AIR CLEANER 331/13866 | 1 | $94.46 | |||
| 10A | BRACKET AIR FILTER 331/18143 | 1 | $492.18 | |||
| 11 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| 11A | SET SCREW M8x30(KANBAN) 1315/0308Z | 1 | $2.17 | |||
| 11B | SET SCREW M8x35(KANBAN) 1315/0309Z | 1 | $2.57 | |||
| 12 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 13 | NUT M_8 STD SELF LOCK(KANBAN) 1370/0203Z | 1 | $0.26 | |||
| 14 | BOLT M24X320 1315/4036Z | 1 | $133.78 | |||
| 15 | WASHER M24 PLAIN 1420/0014Z | 1 | $6.23 | |||
| 16 | NUT M24 STD SELF LOCK 1370/0903Z | 1 | $36.38 | |||
| 17 | BRACKET SUPPORT AI 331/14118 | 1 | $494.59 | |||
| 19 | 'SPRING BAND CLIP 50-70mm(KANBAN) (P282) 2201/0012 2206/5070 | 1 | $12.64 | |||
| 20 | HOSE AIR INDUCTION 834/10233 | 1 | $116.66 | |||
| 21 | FILTER -PRE CLEAN 32/208100 | 1 | $171.32 | |||
| 22 | COVER & W/NUT 32/206202 | 1 | $172.07 | |||
| 24 | CLIP - WORMDRIVE 60/80mm(KANBAN) 2201/0013 | 1 | $7.78 | |||
| 25 | HARNESS-AIRCLEANER SWITCH 721/10301 | 1 | $64.79 | |||
Showing 1 to 26 of 26 parts
Related Assemblies
-
DIAG-M3-3-1-397130 M3-3-1 FILTER, AIR
View Diagram -
DIAG-M3-4-1-397130 M3-4-1 EXHAUST SYSTEM
View Diagram -
DIAG-M3-4-2-397130 M3-4-2 EXHAUST SYSTEM GROUND
View Diagram
