Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | FILTER AIR ASSY 580/12133 | 1 | $123.39 | |||
| 2 | ELEMENT MAIN 32/925348 | 1 | $80.41 | |||
| 3 | ELEMENT SAFETY 32/925349 | 1 | $85.56 | |||
| 4 | ASSEMBLY COVER 335/C2854 32/925361 | 1 | $44.75 | |||
| 4A | LATCH OVERCENTRE 32/925174 | 1 | $16.43 | |||
| 5 | VALVE VACCUATOR 32/915704 | 1 | $27.51 | |||
| 6 | Bracket air filter 32/925362 | 1 | $17.60 | |||
| 7 | 54m BAR SWITCH (EM&LP) 335/D3073 716/F2027 | 1 | $76.83 | |||
| 8 | ADAPTER ELBOW 90 816/40057 | 1 | $5.00 | |||
| 9 | SET-SCREW M_8 L-25mm 1315/0307 1315/0307Z | 1 | $3.11 | |||
| 10 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 11 | HOSE AIR INTAKE 834/10479 | 1 | $74.46 | |||
| 12 | HOSE 834/10393 | 1 | $87.79 | |||
| 13 | HOSE 834/10506 | 1 | $104.14 | |||
| 14 | 'SPRING BAND CLIP 50-70mm(KANBAN) (P282) 2201/0012 2206/5070 | 1 | $12.64 | |||
Showing 1 to 15 of 15 parts
Related Assemblies
-

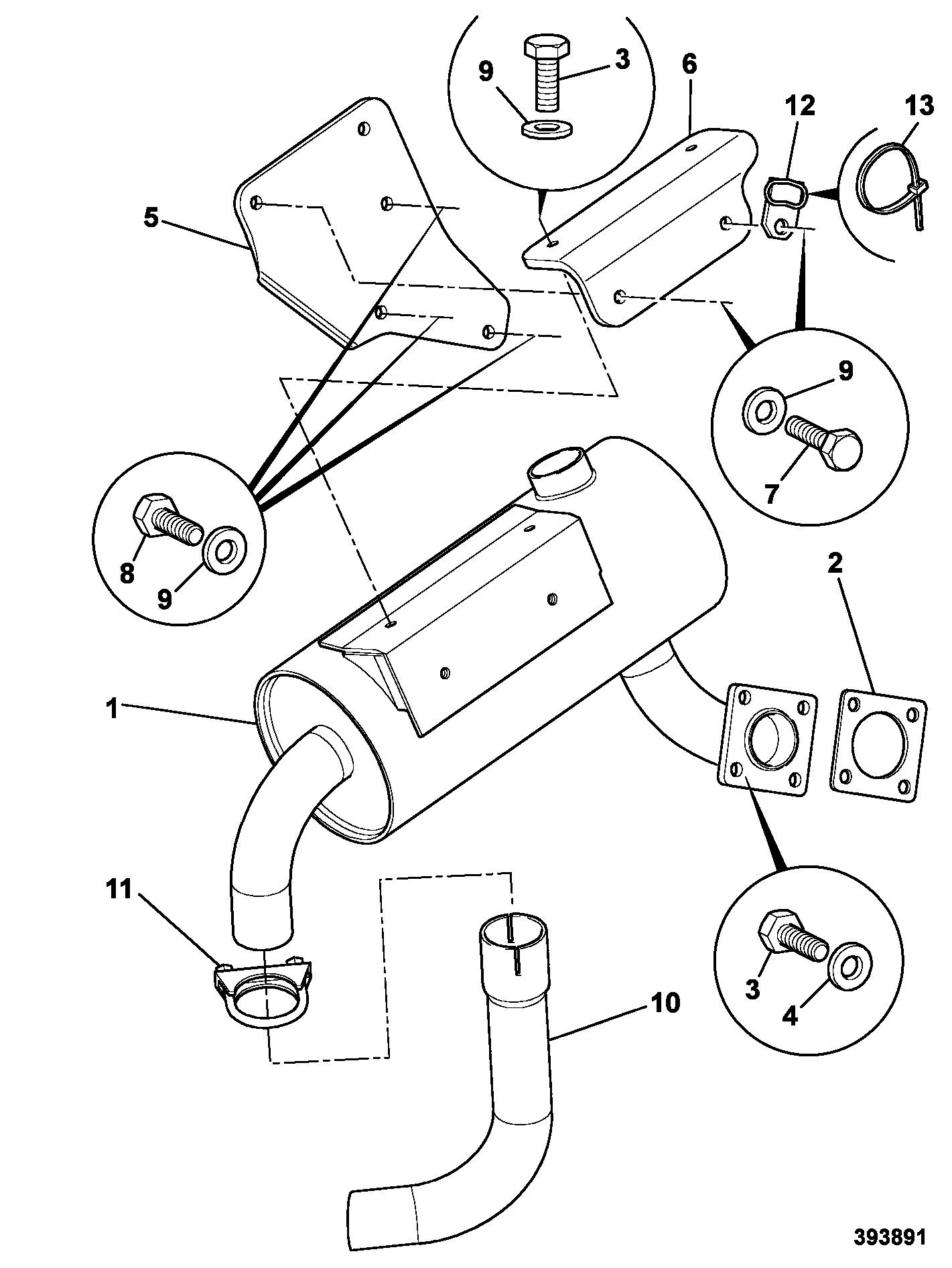

DIAG-M3-4-1-397993 M3-4-1 EXHAUST SYSTEM
View Diagram -

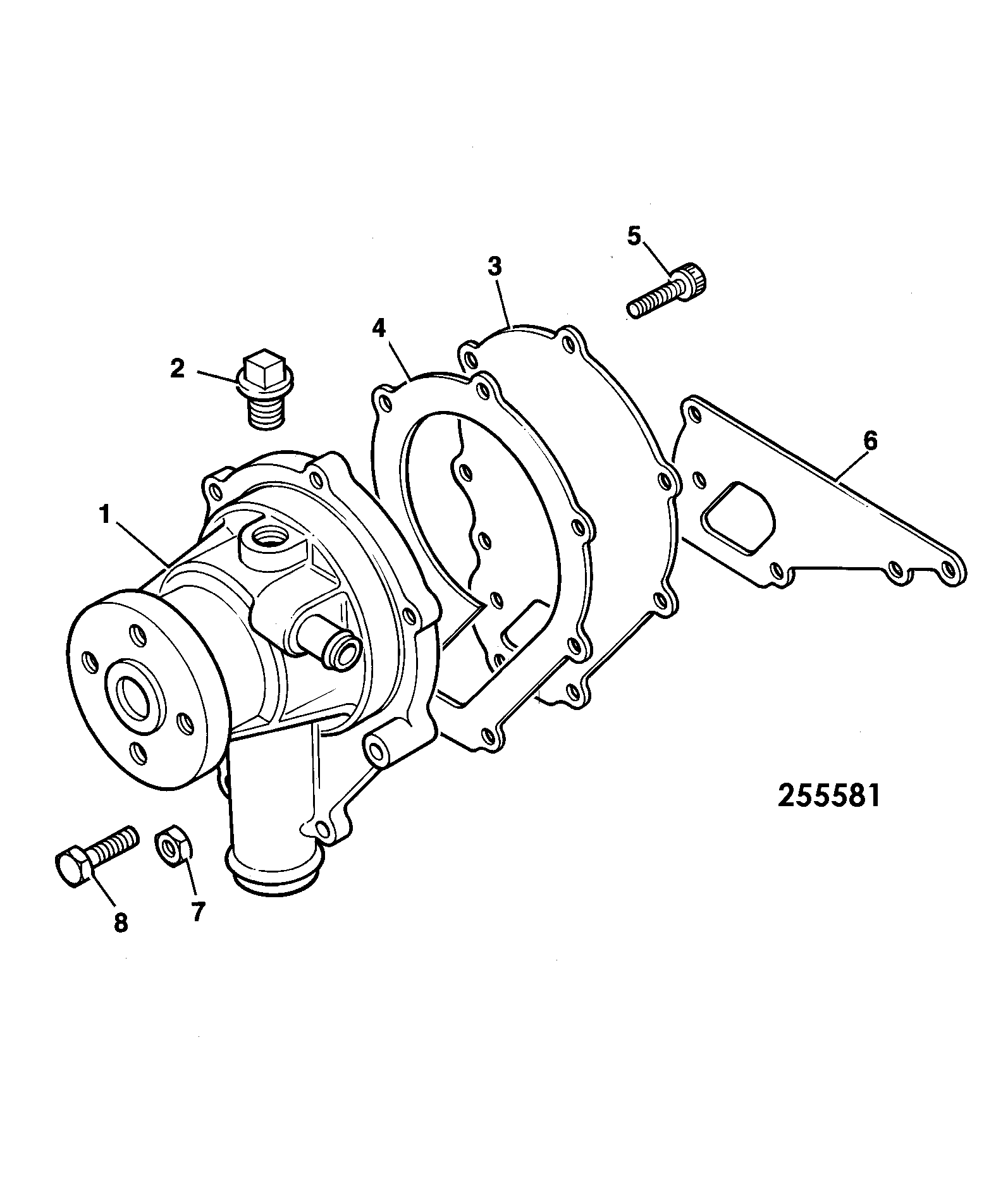

DIAG-M4-1-1-397993 M4-1-1 PUMP, WATER HL BUILD
View Diagram -

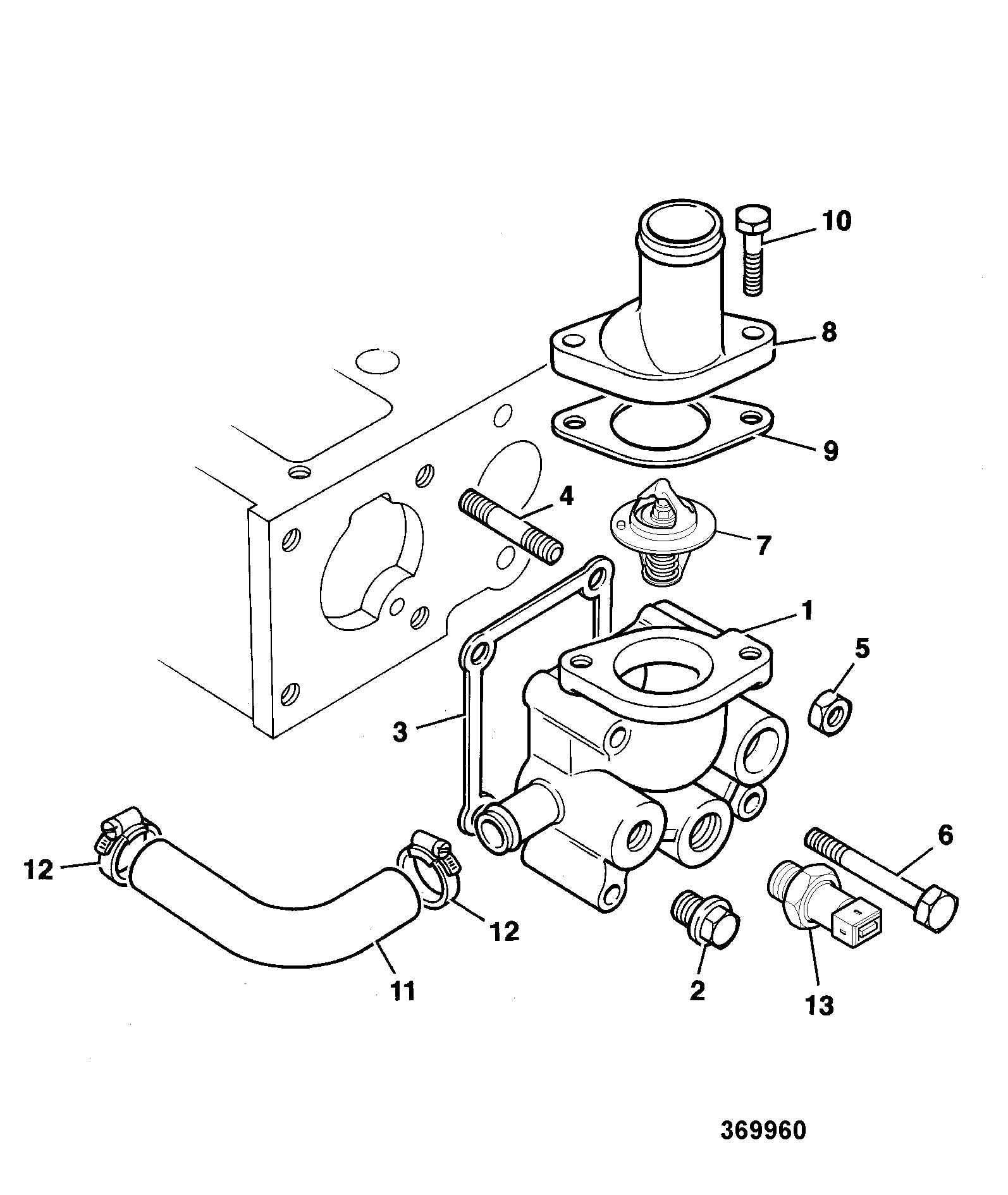

DIAG-M4-2-1-397993 M4-2-1 THERMOSTAT, HOUSING INLET & OUTLET HL BUILD
View Diagram
