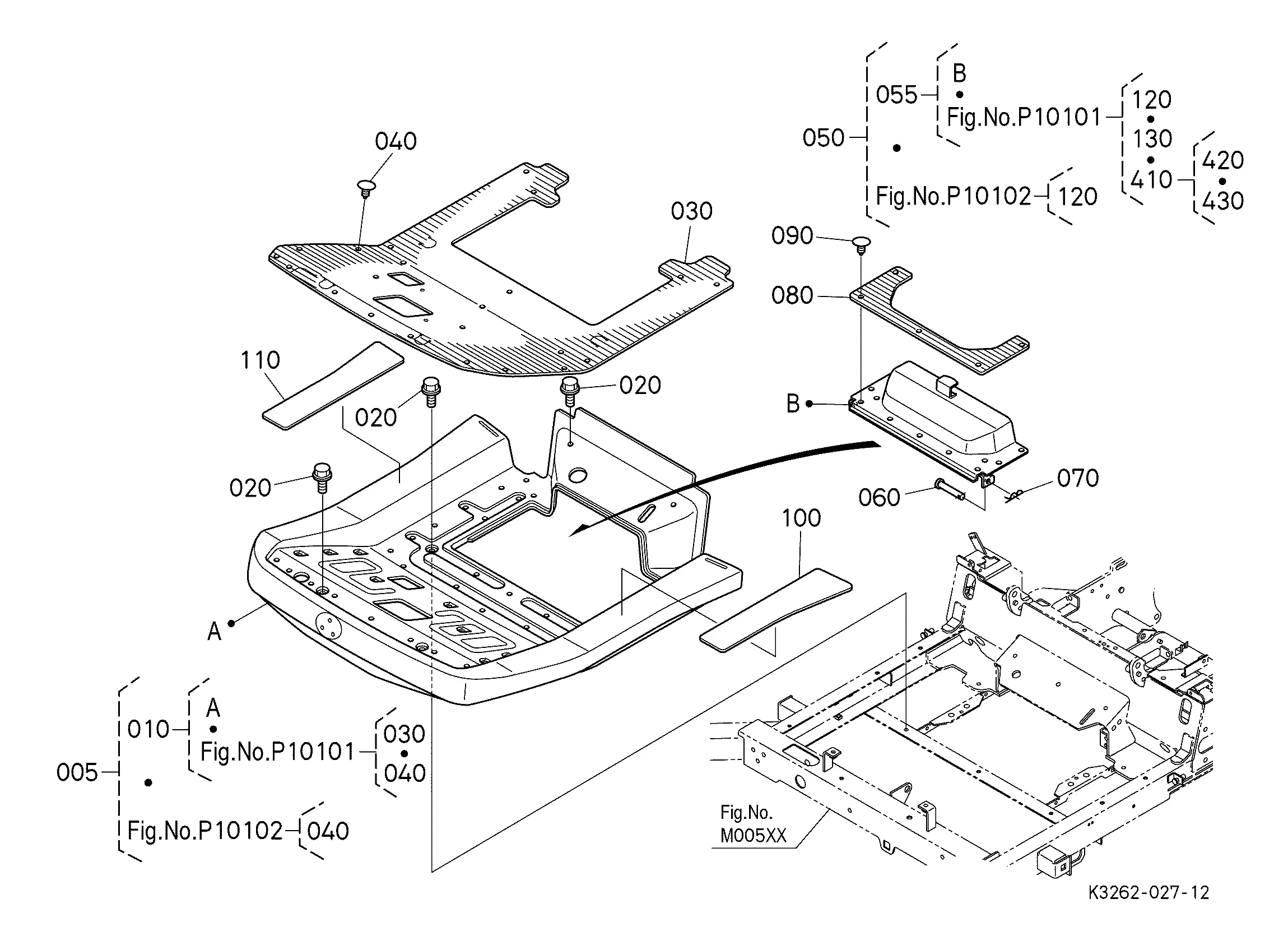

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | PLATE, KIT (DUST K3272-96180 | 1 | $281.69 | |||
| 020 | Bolt Fastener 01754-50820 | 1 | $4.70 | |||
| 030 | TRIM (DUST) K3272-84520 | 1 | $10.27 | |||
| 040 | COVER (FILTER) K3272-81542 | 1 | $15.75 | |||
| 060 | COVER (UNDER, OP K3272-81723 K3272-81724 | 1 | $26.62 | |||
| 070 | ROD (UNDER) K3272-81742 | 1 | $13.01 | |||
| 080 | SPRING (COVER) K3272-81812 | 1 | $5.89 | |||
| 090 | Spring Pin 05511-00218 05511-50218 | 1 | $0.36 | |||
| 100 | Rue Ring Cotter (Retaining Ring) K1211-91120 K1211-91122 | 1 | $0.51 | |||
| 110 | ROD (OPEN) K3272-81754 K3272-81755 | 1 | $14.39 | |||
| 130 | HAIRPIN COTTER * K5651-72720 75599-56004 | 1 | $0.51 | |||
| 135 | SPRING, BONNET 33251-83902 33251-83900 | 1 | $13.56 | |||
| 140 | SPRING ROD,LOWER K3272-81760 | 1 | $7.81 | |||
| 145 | SPRING ROD,UPPER K3272-81770 | 1 | $7.81 | |||
| 150 | SCREW 03024-50516 | 1 | $0.60 | |||
Showing 1 to 15 of 15 parts
Related Assemblies
-
DIAG-M22500-86462 M22500 STEP
View Diagram -

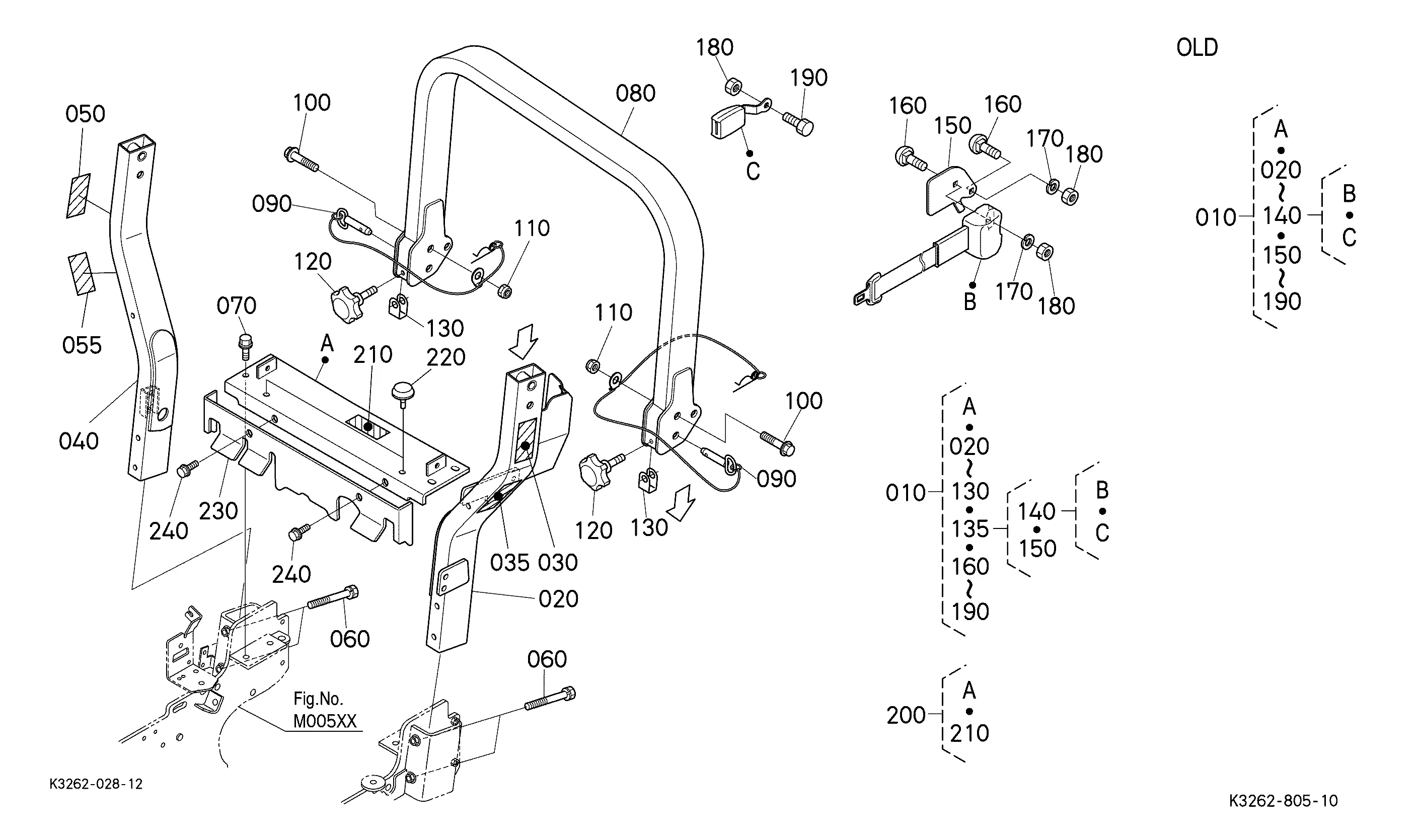

DIAG-M30100-86462 M30100 ROPS
