Kubota M5660SUH M22000 FENDER [OLD] Parts Diagram

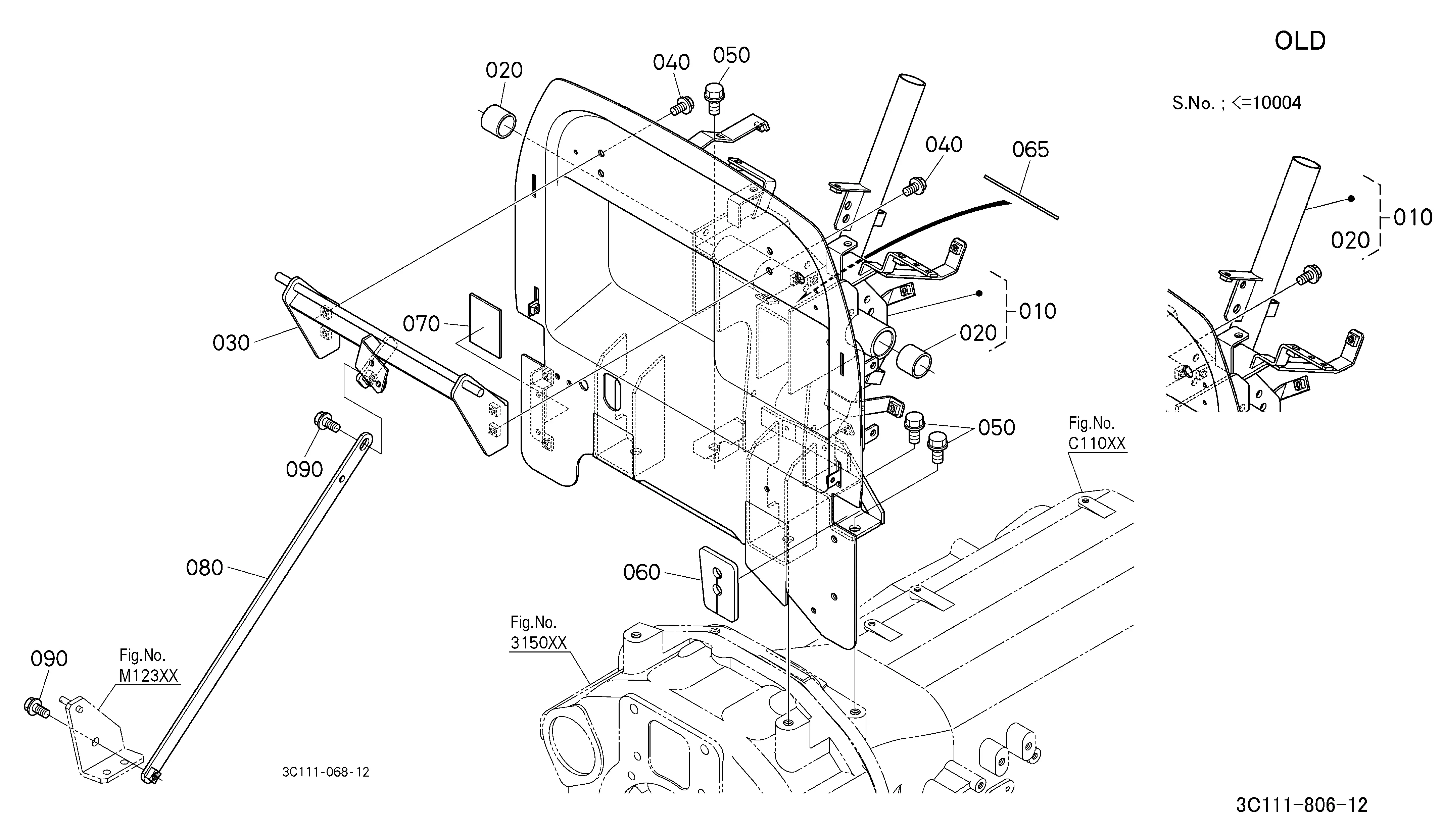

Exploded-view parts diagram "M22000 FENDER [OLD]" for the Kubota M5660SUH and Kubota M5660SUHD. 26 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 012 | KIT FENDER,A 3C111-97340 | 1 | $1,547.03 | |||
| 013 | LABEL, CAUTION ( TA041-49300 TA040-49302 | 1 | $5.15 | |||
| 014 | LABEL, PARKING 6C151-47430 6C150-47430 | 1 | $8.62 | |||
| 015 | LABEL,LIFT ROD,W 3C111-98560 | 1 | $7.50 | |||
| 018 | LABEL,LIFT ROD 3C112-98560 | 1 | $5.73 | |||
| 019 | PLUG 67950-51810 | 1 | $6.03 | |||
| 020 | KIT, FENDER B***ENGLISH LABEL*** 3C111-97320 3C111-97324 | 1 | $1,333.48 | |||
| 030 | LABEL,SAFETY,WAR TC660-49970 | 1 | $8.74 | |||
| 035 | LABEL(EMC) 3S201-98250 | 1 | $4.54 | |||
| 035 | LABEL(EMC) 6C430-47550 | 1 | $2.79 | |||
| 040 | LABEL, CAUTION R 3A111-98482 | 1 | $9.91 | |||
| 045 | LABEL(PROPOSITIO TC650-65970 | 1 | $8.25 | |||
| 050 | LABEL (FILLER, E TC420-49560 | 1 | $5.15 | |||
| 060 | COVER (REAR, FE 3C081-87462 | 1 | $172.46 | |||
| 070 | COVER (REAR, FE 3C081-87472 | 1 | $172.46 | |||
| 080 | M6 Flange Bolt 01754-50616 | 1 | $2.36 | |||
| 090 | Flange Nut 02751-50060 | 1 | $0.60 | |||
| 110 | Right-Hand Fender Grip Assembly T1060-29470 | 1 | $78.51 | |||
| 120 | Flange Nut 02771-50100 | 1 | $3.06 | |||
| 130 | Bolt T1060-47370 | 1 | $1.51 | |||
| 150 | BOLT T1270-47470 | 1 | $1.35 | |||
| 160 | Flange Nut TA140-18310 02751-50080 | 1 | $4.62 | |||
| 170 | KIT, FENDER B 3C112-97322 Discontinued | 1 | $1,077.76 | |||
| 180 | LABEL SAFETY,WAR TC661-49970 | 1 | $9.75 | |||
| 190 | LABEL, ROPS WARN 3A112-98480 TA240-98482 | 1 | $11.76 | |||
| 200 | LABEL FILTER, E4 TC410-49560 Discontinued | 1 | $5.67 | |||
Showing 1 to 26 of 26 parts
