Kubota B2320HSD M22000 SEAT Parts Diagram

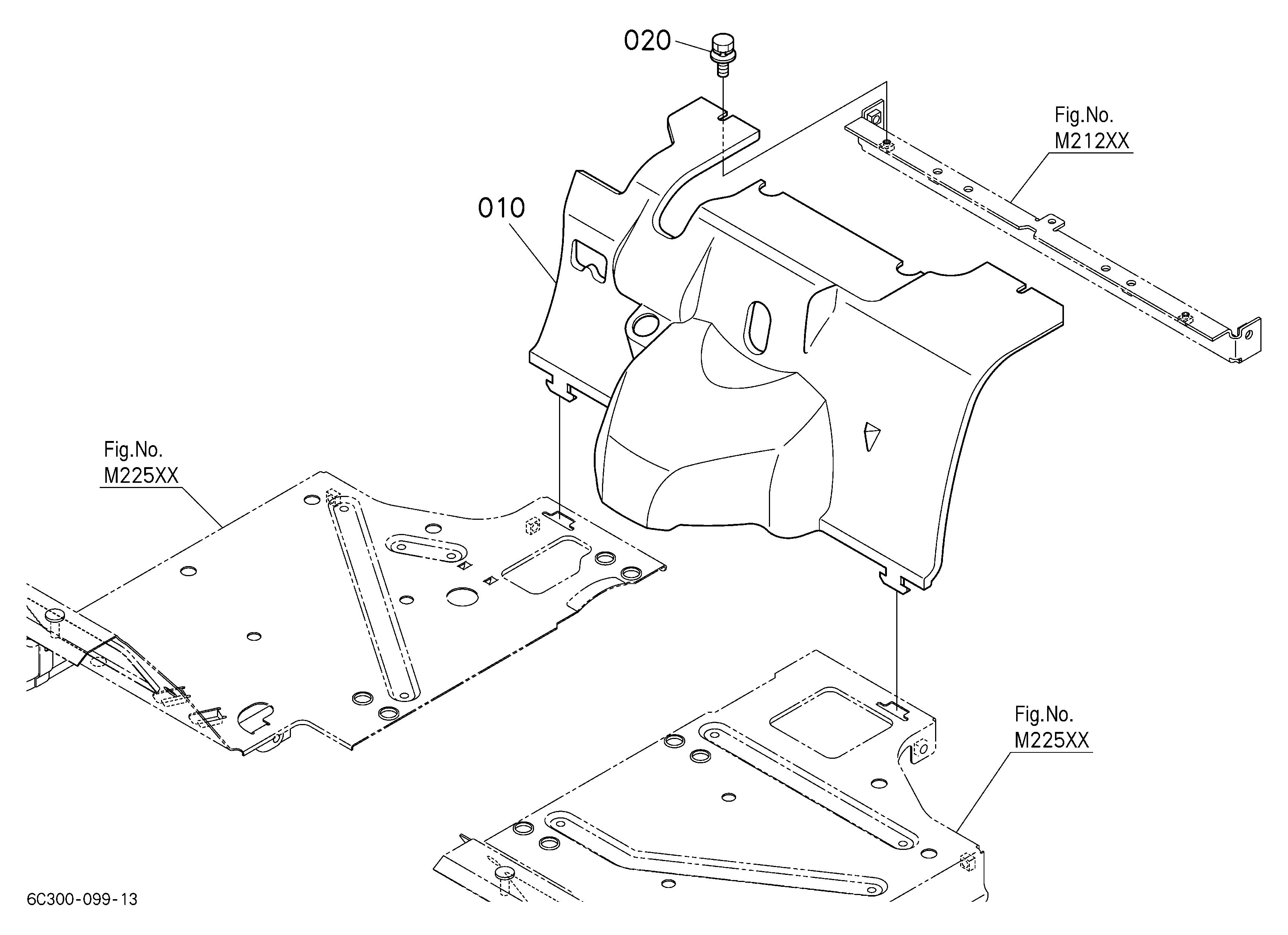

Exploded-view parts diagram "M22000 SEAT" for the Kubota B2320HSD. 5 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | Seat K2571-56110 K2571-56112 | 1 | $445.96 | |||
| 020 | STAY, SEAT 6C190-45960 | 1 | $11.63 | |||
| 030 | PLATE, SPRING (S 6C190-45732 | 1 | $18.46 | |||
| 040 | Pin for Tractor & Mower Assemblies 05525-50080 05525-50800 | 1 | $1.31 | |||
| 050 | Bolt Fastener for Equipment Assemblies 01120-50820 01123-50820 | 1 | $0.99 | |||
Showing 1 to 5 of 5 parts
