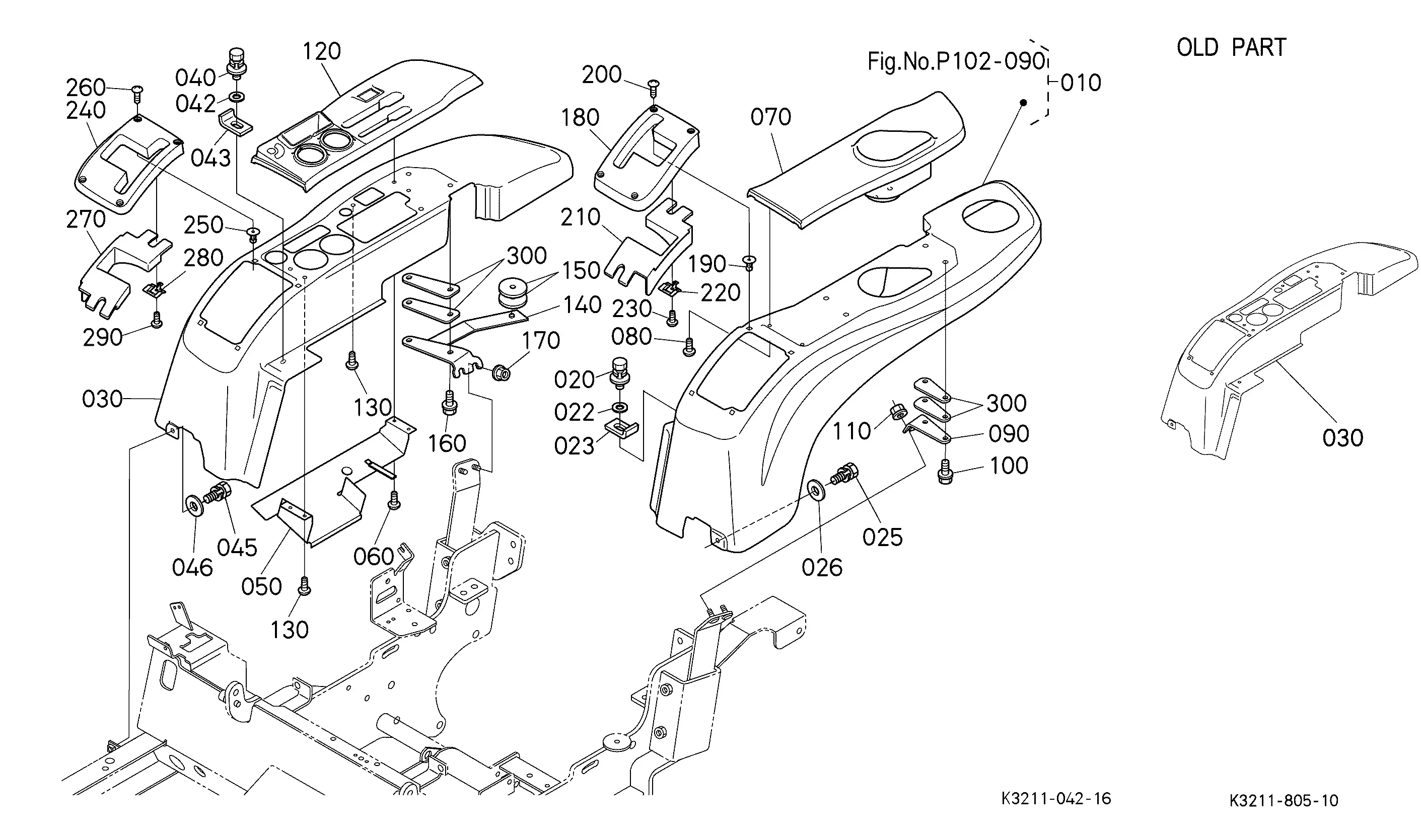

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ASSY SEAT *** K3211-56730 K3211-56113 Discontinued | 1 | $356.84 | |||
| 020 | ARM REST RH K3111-56770 | 1 | $135.15 | |||
| 030 | ARM REST LH K3111-56780 | 1 | $135.15 | |||
| 050 | CUSHION, LOWER** K3211-56740 | 1 | $284.99 | |||
| 060 | Hex Bolt 5/16" x 1" 70002-00418 75599-01220 | 1 | $0.80 | |||
| 070 | Spring Washer 04512-50080 | 1 | $0.87 | |||
| 080 | Plain Washer (Flat Washer) 04013-50800 04013-50080 | 1 | $0.36 | |||
| 090 | CAP, SPRING K2561-56790 | 1 | $5.28 | |||
| 100 | SPRING,SEAT K3211-56250 K3211-56252 | 1 | $33.31 | |||
| 110 | Bolt Fastener 01754-50820 | 1 | $4.70 | |||
| 120 | PLATE, SEAT OPEN K3211-56440 K3211-56442 | 1 | $11.52 | |||
| 130 | Rue Ring Cotter Pin K1211-91110 K1211-91112 | 1 | $1.16 | |||
Showing 1 to 12 of 12 parts
