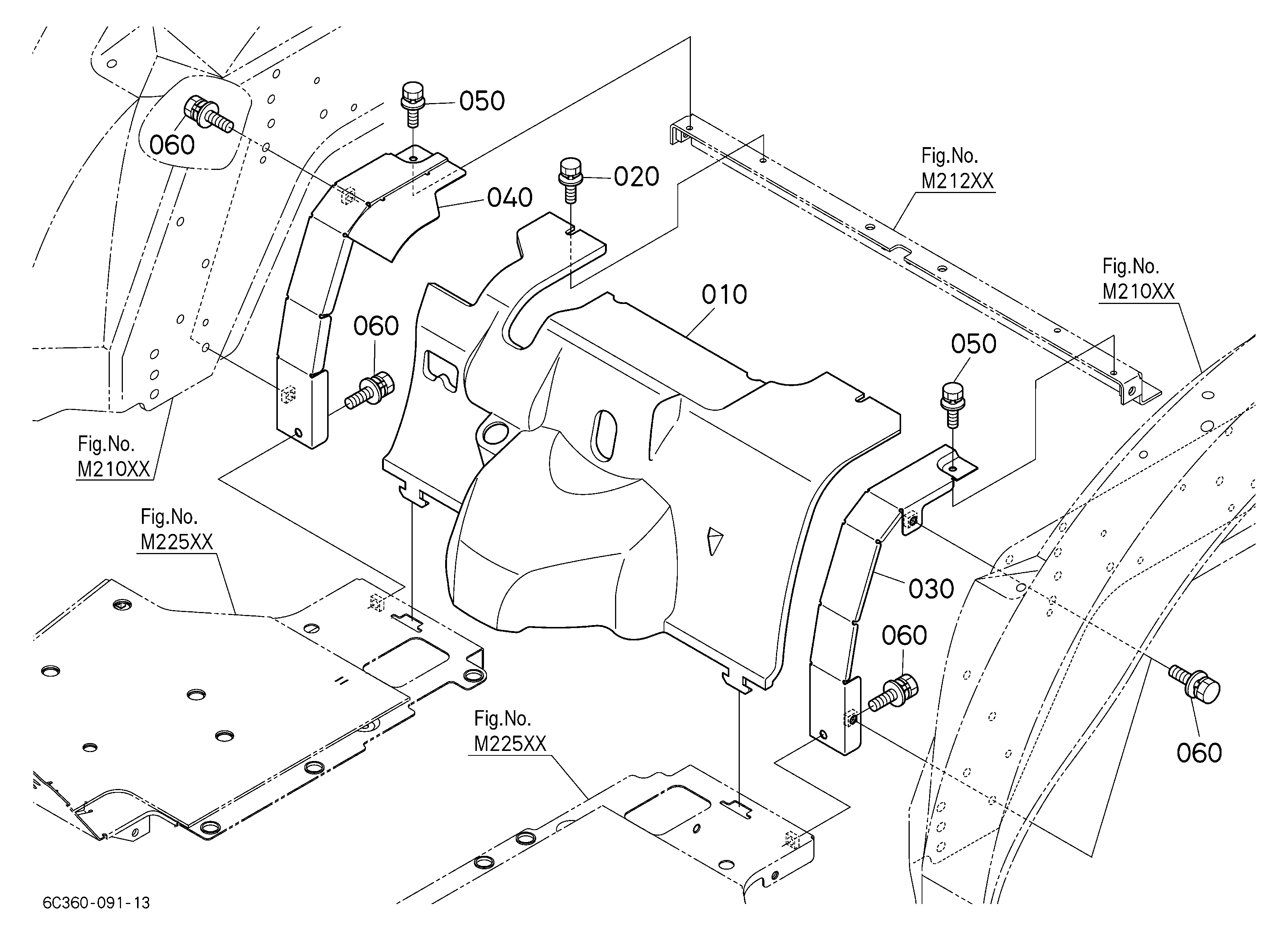

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | Seat K2571-56110 K2571-56112 | 1 | $445.96 | |||
| 020 | Bolt Fastener for Equipment Assemblies 01120-50820 01123-50820 | 1 | $0.99 | |||
| 030 | STAY,SEAT 6C070-45960 | 1 | $15.31 | |||
| 040 | PLATE, SPRING 6C070-45730 | 1 | $22.12 | |||
| 050 | Pin for Tractor & Mower Assemblies 05525-50080 05525-50800 | 1 | $1.31 | |||
Showing 1 to 5 of 5 parts
Related Assemblies
-
DIAG-M21700-84536 M21700 SEAT SUPPORT
View Diagram -
DIAG-M22500-84536 M22500 STEP
View Diagram -
DIAG-M21500-84536 M21500 FLOOR SHEET
View Diagram
