Kubota B1700D M21700 SEAT SUPPORT Parts Diagram

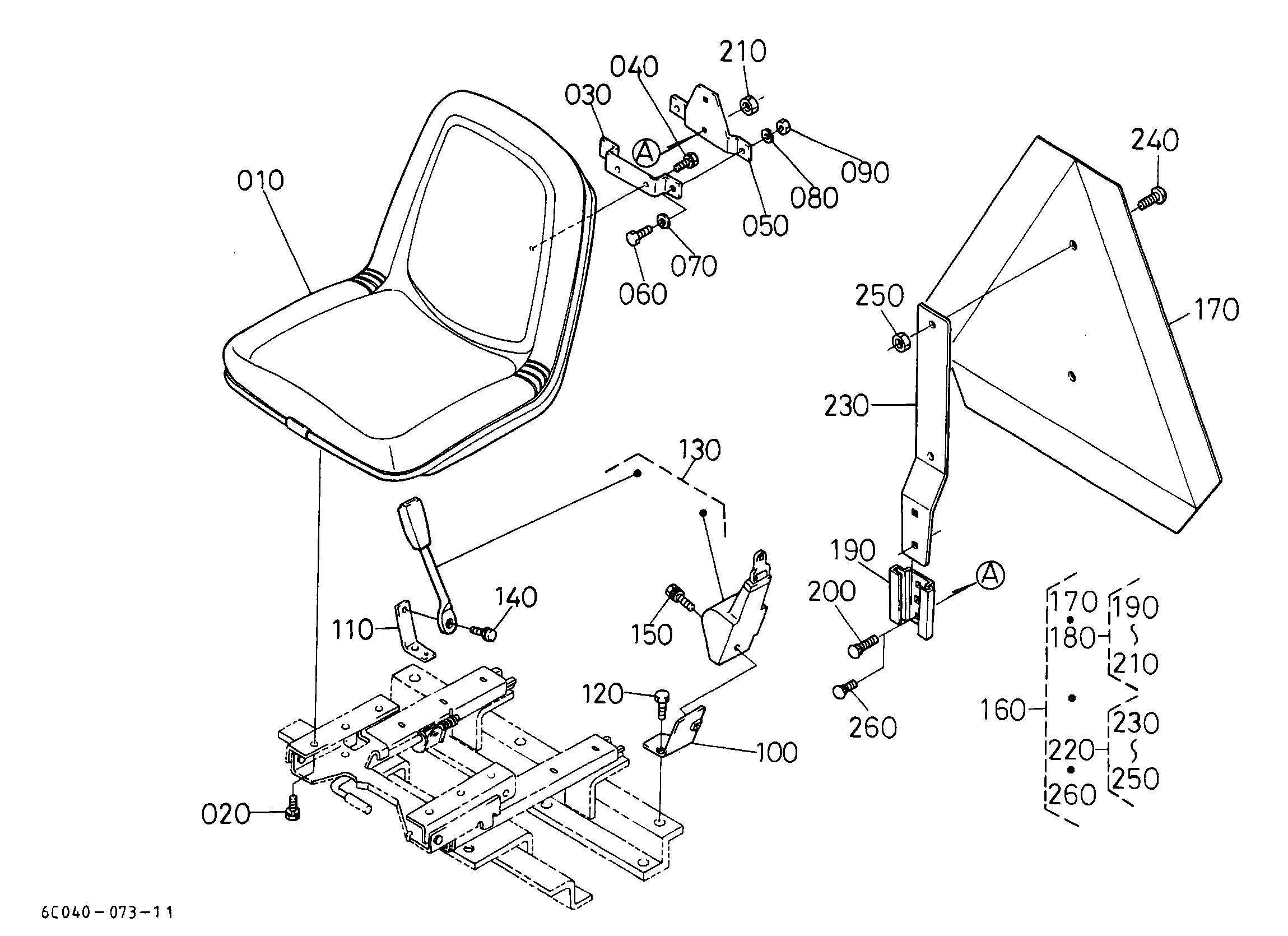

Exploded-view parts diagram "M21700 SEAT SUPPORT" for the Kubota B1700D, Kubota B2100D and Kubota B2400D. 17 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | ADJUSTER, SEAT L 6C040-45910 | 1 | $103.45 | |||
| 020 | ADJUSTER, SEAT R 6C040-45920 | 1 | $103.45 | |||
| 030 | Nut 02131-50100 | 1 | $0.60 | |||
| 040 | BOLT, HEX-SOC-HD 01311-10820 | 1 | $1.37 | |||
| 050 | Spring Washer 04512-50080 | 1 | $0.87 | |||
| 060 | STAY, SEAT RAIL 6C040-45954 | 1 | $112.58 | |||
| 060 | STAY, SEAT RAIL 6C040-45950 | 1 | $126.11 | |||
| 070 | Bolt 01123-50816 | 1 | $0.80 | |||
| 080 | SPRING, SEAT 6C040-45990 | 1 | $65.08 | |||
| 090 | BOLT 01127-50830 | 1 | $1.77 | |||
| 100 | Seat Support Cap 66301-52820 | 1 | $12.65 | |||
| 110 | COVER, SEAT UNDE 6C040-51370 6C040-51376 | 1 | $79.03 | |||
| 130 | Bolt Fastener 01125-60816 01125-70816 | 1 | $0.99 | |||
| 130 | Bolt with Washer 01125-50820 | 1 | $1.37 | |||
| 140 | STAY, SEAT (S/N 6C040-45960 | 1 | $122.41 | |||
| 140 | STAY, SEAT (S/N 6C040-45962 | 1 | $52.98 | |||
| 150 | Pin for Tractor & Mower Assemblies 05525-50080 05525-50800 | 1 | $1.31 | |||
Showing 1 to 17 of 17 parts
