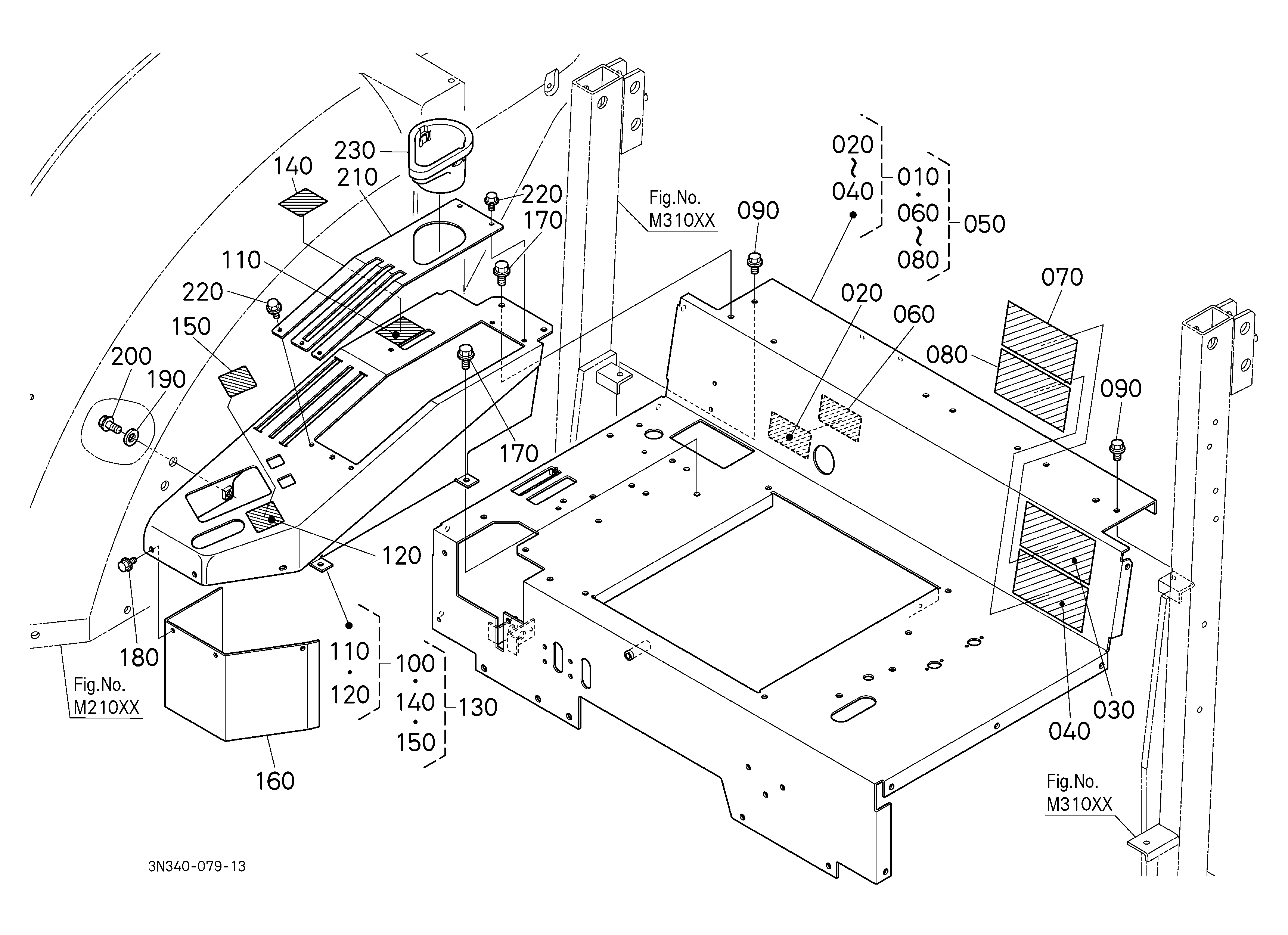

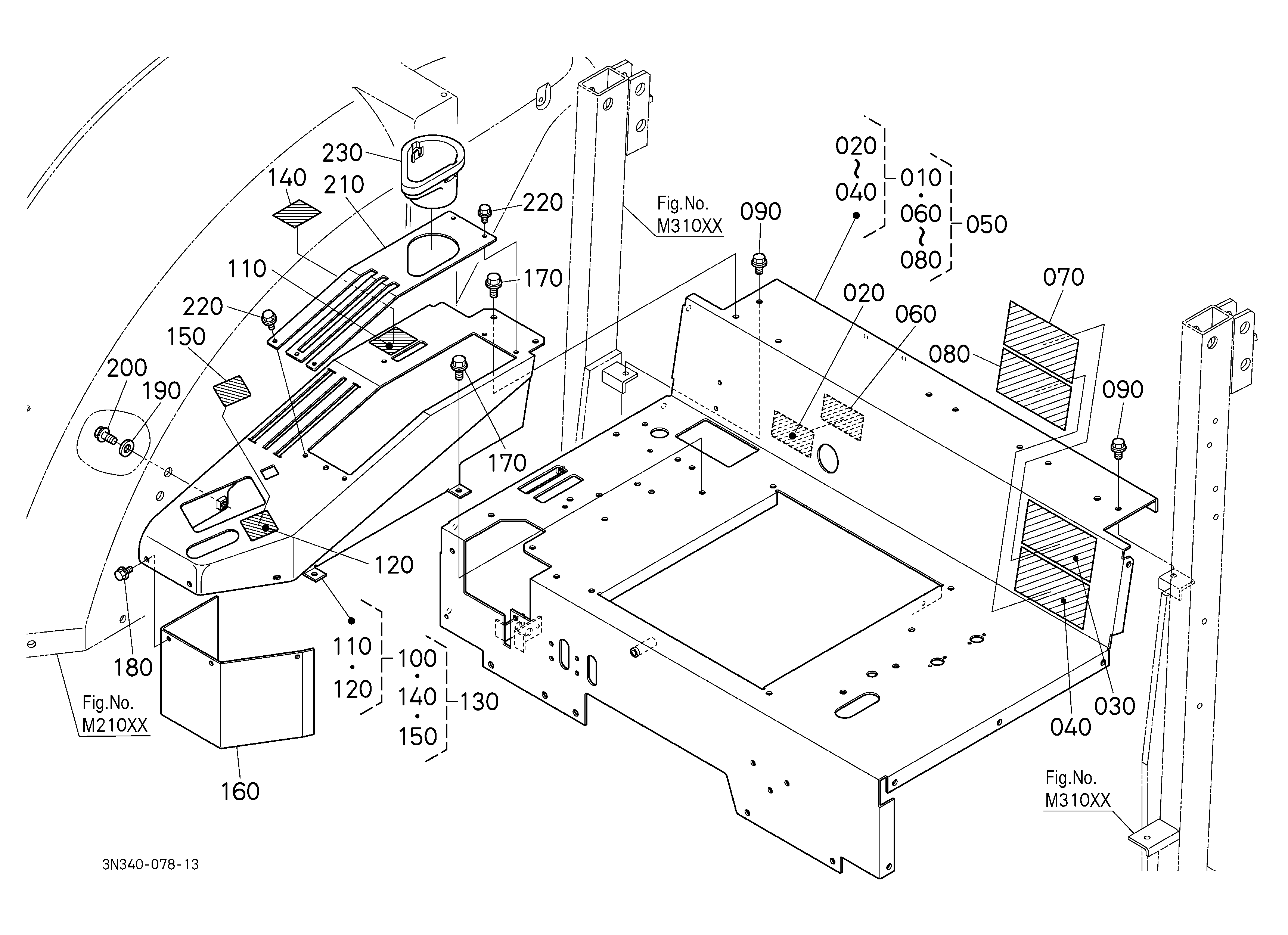

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | FENDER,LH OUTER 3N340-76025 3N340-76026 | 1 | $1,816.60 | |||
| 020 | Plain Flat Washer 04015-50100 | 1 | $0.60 | |||
| 030 | Flange Nut 02771-50100 | 1 | $3.06 | |||
| 040 | Flange Bolt 01174-51020 01774-51020 | 1 | $3.34 | |||
| 045 | BOLT 01135-61020 01135-71020 | 1 | $1.99 | |||
| 046 | Plain Washer 04015-60100 04015-70100 | 1 | $1.05 | |||
| 047 | Hex Nut, M10-1.25mm (6T) 70090-33403 02176-50100 | 1 | $0.80 | |||
| 050 | SUPPORT,FENDER L 3N340-68983 3N340-68985 | 1 | $110.93 | |||
| 060 | CLAMP,CORD 15272-67590 | 1 | $2.34 | |||
| 070 | M6 Flange Bolt 30400-19060 | 1 | $1.07 | |||
| 080 | Flange Nut 02751-50060 | 1 | $0.60 | |||
| 090 | RAIL, HAND LH 3N340-70740 | 1 | $290.19 | |||
| 100 | BOLT, FLANGE 30810-18870 | 1 | $1.07 | |||
| 110 | WASHER 3F760-53500 | 1 | $3.15 | |||
| 120 | Flange Nut TA140-18310 02751-50080 | 1 | $4.62 | |||
Showing 1 to 15 of 15 parts
