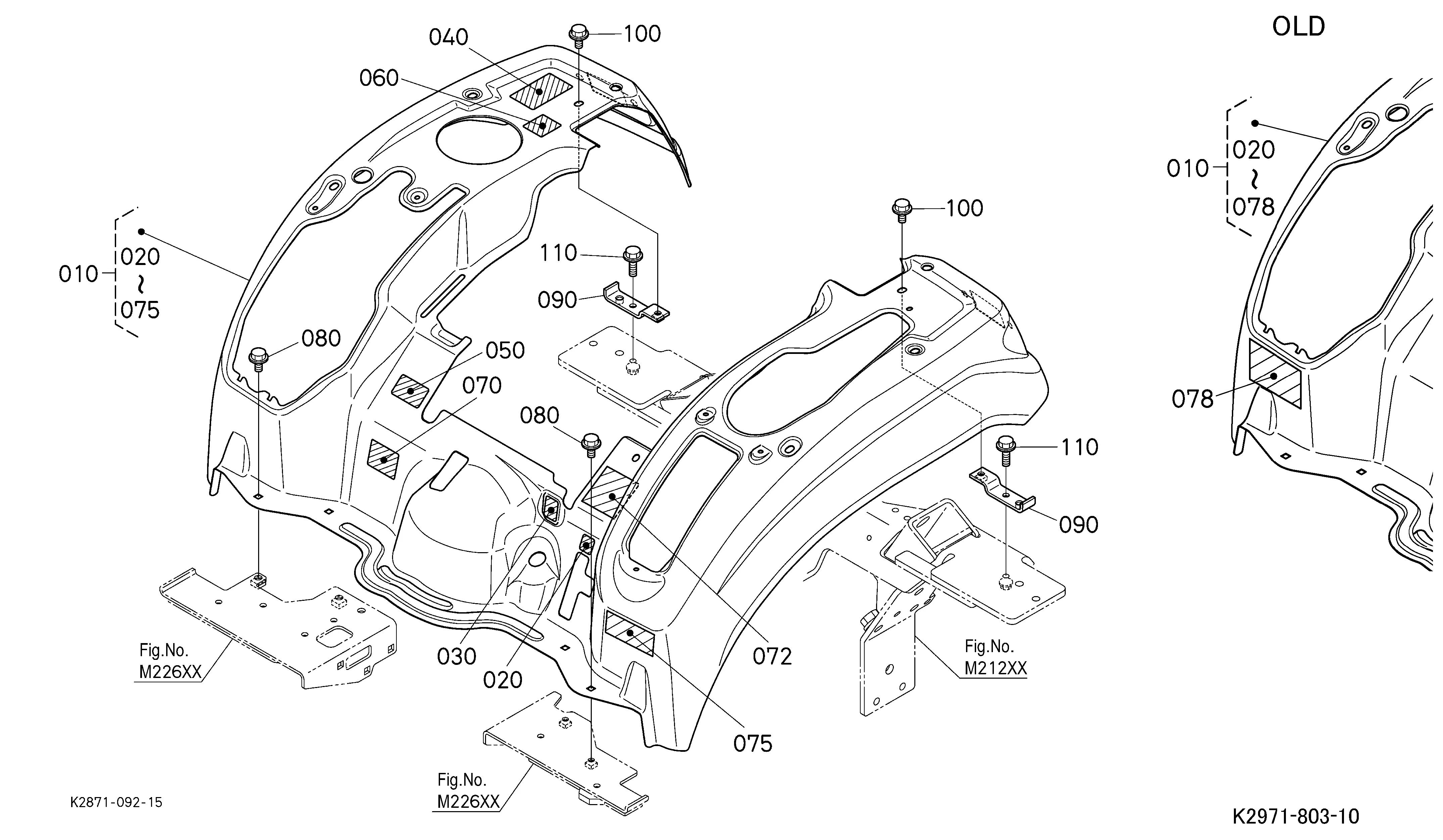

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | BRACKET(FENDER,LH) K2871-39012 K2871-39013 | 1 | $112.49 | |||
| 020 | KIT BRACKET, FEN K2871-93920 | 1 | $221.80 | |||
| 020 | KIT FENDER, BRAC K2877-93920 | 1 | $261.39 | |||
| 030 | PLATE, HITCH K2581-39180 | 1 | $17.69 | |||
| 040 | BOLT 01133-51440 | 1 | $3.53 | |||
| 060 | Plain Washer (9) 75599-32516 | 1 | $0.71 | |||
| 070 | NUT, FLANGE 02771-50140 | 1 | $3.16 | |||
| 080 | STAY(FENDER CENTER) * K2871-39135 K2871-39136 | 1 | $828.66 | |||
| 085 | CLAMP, CORD K3441-62220 | 1 | $2.72 | |||
| 100 | Bolt 01133-61035 01133-51035 | 1 | $2.77 | |||
| 105 | Flange Nut 02771-50100 | 1 | $3.06 | |||
| 110 | COVER, FUEL,TUBE K2871-39743 | 1 | $15.56 | |||
| 120 | BOLT 01050-50625 01053-50625 | 1 | $0.99 | |||
| 130 | Plain Washer (Flat Washer) 04015-50060 | 1 | $0.60 | |||
Showing 1 to 14 of 14 parts
