Kubota RTV-X1120DR M20300 PANEL COVER Parts Diagram

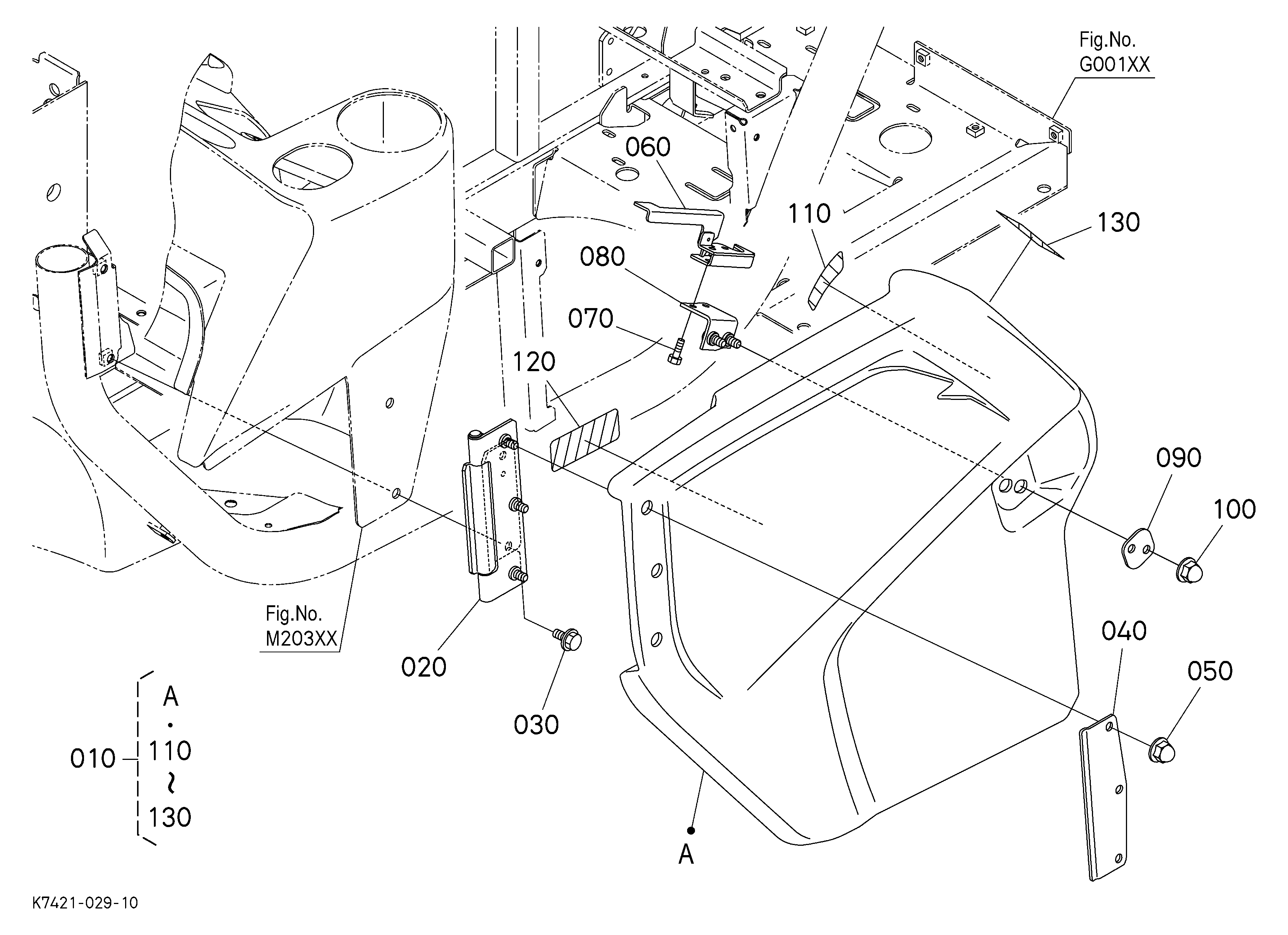

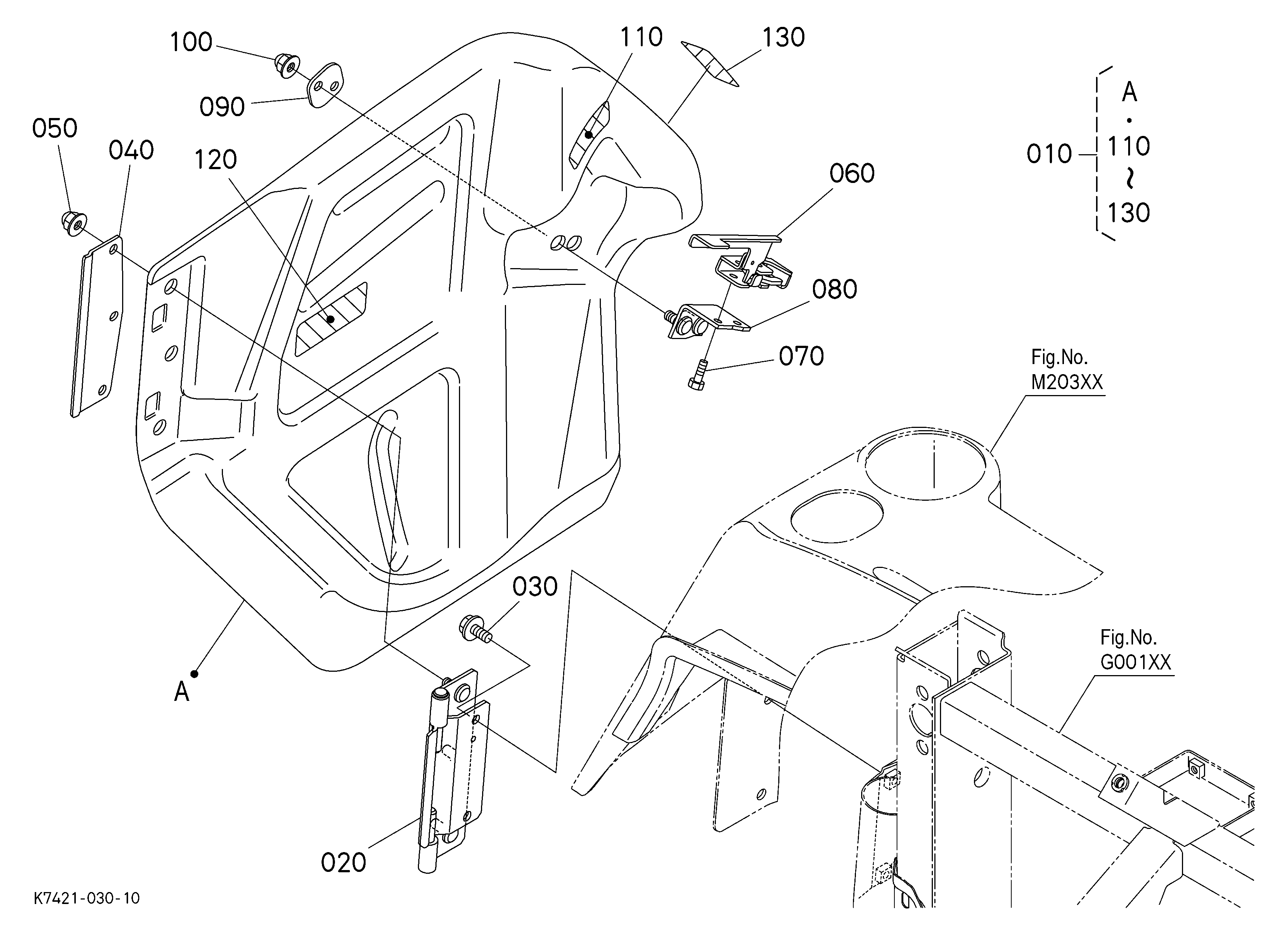

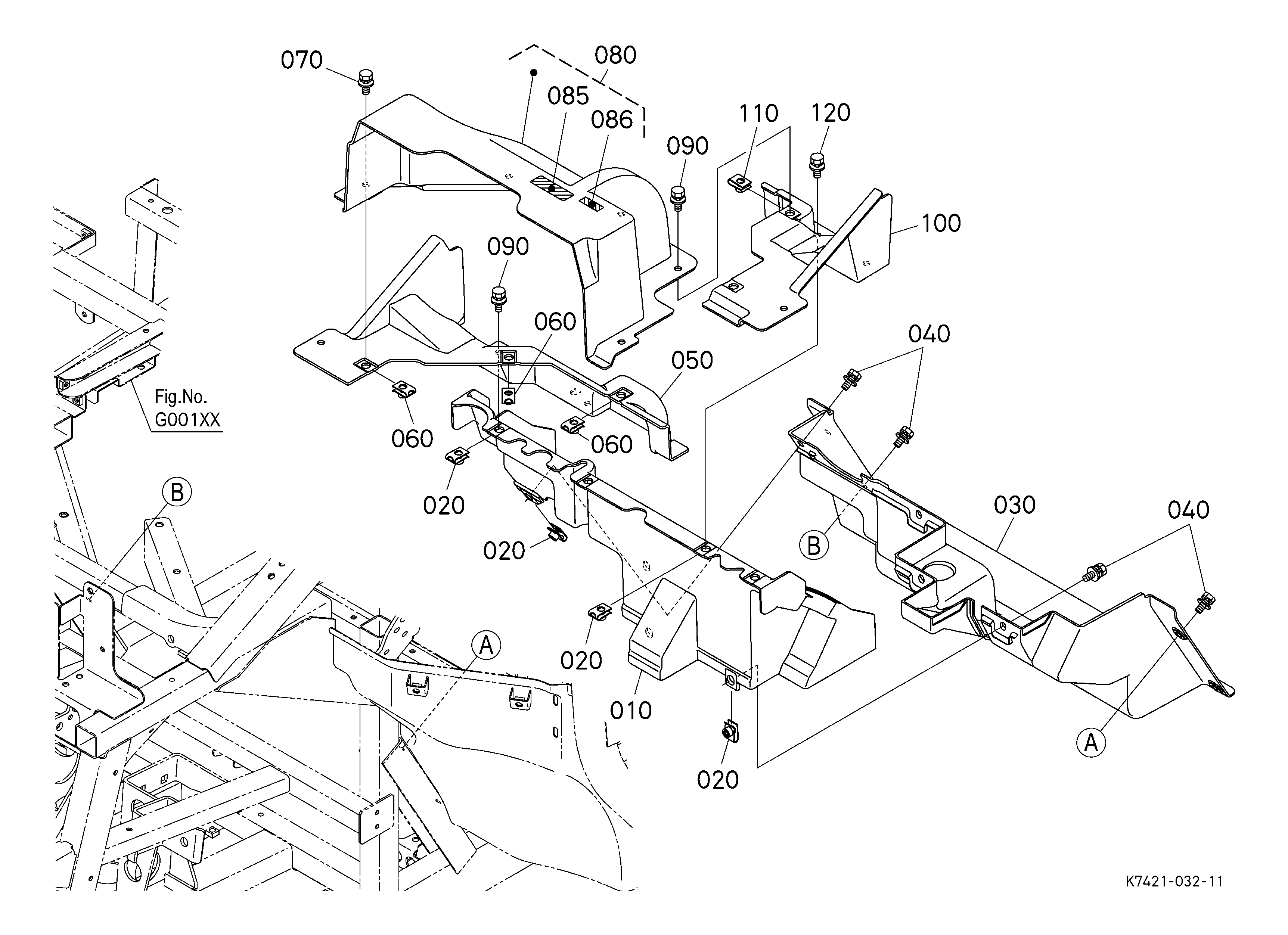

Exploded-view parts diagram "M20300 PANEL COVER" for the Kubota RTV-X1120DR and Kubota RTV-X1120DW. 11 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | PANEL,KIT(LABEL) K7421-97402 K7421-97405 | 1 | $492.87 | |||
| 010 | PANEL,KIT(LABEL) K7427-97403 K7427-97404 | 1 | $565.73 | |||
| 010 | PANEL,KIT(LABEL) K7427-97402 K7427-97405 | 1 | $865.95 | |||
| 020 | COVER(APPENTICE) K7591-57150 | 1 | $17.80 | |||
| 030 | Button Screw K1211-54362 K1211-54363 | 1 | $0.80 | |||
| 040 | Plain Washer K7711-29780 K7711-29782 | 1 | $0.26 | |||
| 050 | TRIM(PANEL) K7591-59310 | 1 | $35.61 | |||
| 060 | TUBE,FUEL 09664-81300 | 1 | $20.34 | |||
| 070 | Retaining Clip 09318-88125 | 1 | $2.26 | |||
| 080 | CLAMP, CORD K1042-61250 | 1 | $0.80 | |||
| 090 | HOLDER, CUP K7571-57180 | 1 | $6.69 | |||
Showing 1 to 11 of 11 parts
