Kubota RTV900XTG M20101 PANEL FRAME Parts Diagram

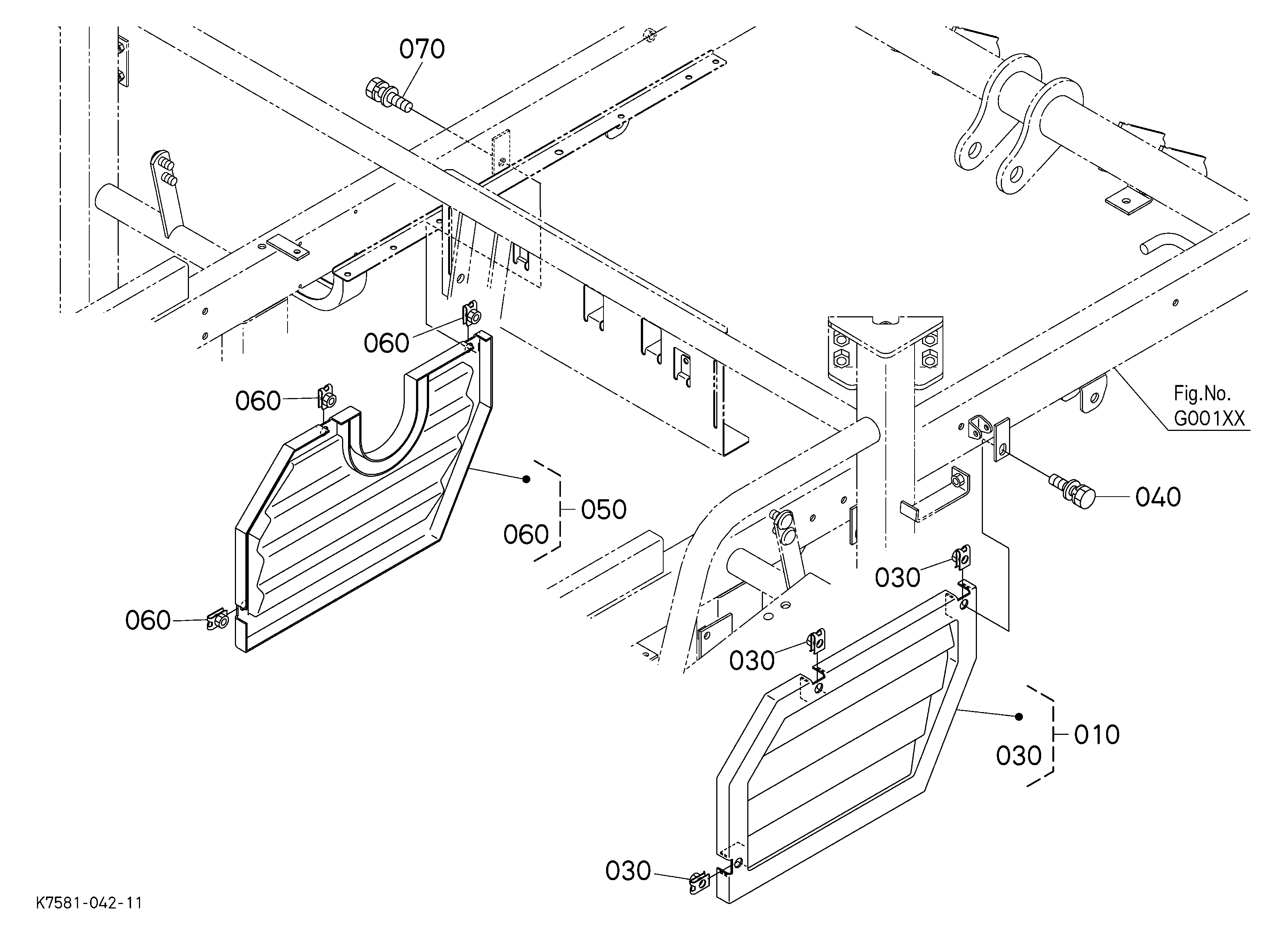

Exploded-view parts diagram "M20101 PANEL FRAME" for the Kubota RTV900XTG. 21 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | EX KIT COVER LAB K7567-97803 | 1 | $343.67 | |||
| 010 | KIT COVER, CENTE K7581-97800 | 1 | $904.69 | |||
| 020 | Spring Nut (Clip Nut / Speed Nut) K1122-91810 | 1 | $2.05 | |||
| 025 | GROMMET, CENTER K7561-56540 K7561-56542 | 1 | $15.87 | |||
| 030 | Button Screw K1211-54362 K1211-54363 | 1 | $0.80 | |||
| 040 | Plain Washer K7711-29780 K7711-29782 | 1 | $0.26 | |||
| 060 | EX KIT COVER,LAB K7567-97700 Discontinued | 1 | $122.08 | |||
| 060 | KIT COVER, LH (L K7561-97702 K7561-97703 | 1 | $300.78 | |||
| 075 | M5 Series Plain Washer 04015-60080 04015-70080 | 1 | $0.60 | |||
| 080 | Bolt Fastener 01127-60820 01127-70820 | 1 | $1.37 | |||
| 090 | COVER** K7561-55620 | 1 | $8.46 | |||
| 120 | KIT COVER, LABEL K7567-97903 | 1 | $449.21 | |||
| 120 | KIT COVER, LABEL K7571-97902 K7571-97903 | 1 | $422.03 | |||
| 150 | KIT PANEL, LABEL K7577-97602 K7571-97602 | 1 | $711.76 | |||
| 160 | SSCREW, M8 BINDI K2561-57160 K2561-57162 | 1 | $1.62 | |||
| 180 | TRIM, PANEL K7561-59312 K7561-59313 | 1 | $27.34 | |||
| 190 | TUBE,FUEL 09661-80440 | 1 | $10.89 | |||
| 200 | Retaining Clip 09318-88125 | 1 | $2.26 | |||
| 210 | HOLDER, CUP K7571-57180 | 1 | $6.69 | |||
| 220 | STAY, PANEL K7611-57120 | 1 | $48.12 | |||
| 230 | Bolt with Washer 01125-50820 | 1 | $1.37 | |||
Showing 1 to 21 of 21 parts
