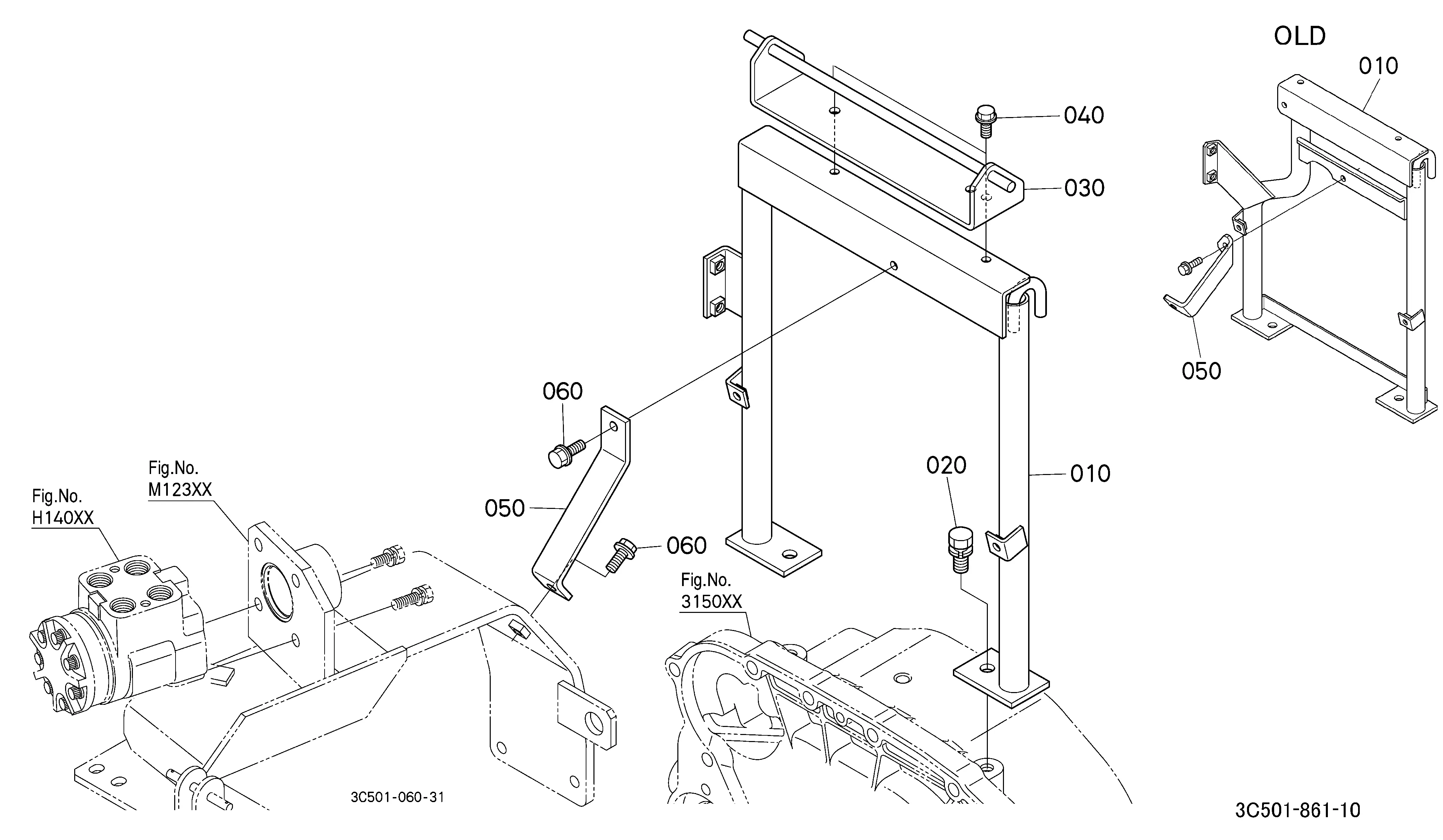

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | SUPPORT BONNET REAR 3C501-83594 3C501-83596 | 1 | $193.97 | |||
| 020 | 12 mm x 25 mm Bolt 01133-51225 | 1 | $2.17 | |||
| 030 | SUPPORT, BONNET 3C581-83652 | 1 | $63.59 | |||
| 040 | M8 Flange Bolt 01754-50816 | 1 | $4.33 | |||
| 050 | STAY (STRG.) 3C501-83582 3C501-83583 | 1 | $327.56 | |||
| 060 | Flange Bolt 01754-50825 | 1 | $5.09 | |||
| 070 | STAY (SUPPORT) 3C501-83342 | 1 | $100.20 | |||
| 070 | STAY, DAMPER 3C501-83340 | 1 | $146.45 | |||
| 080 | Bolt Fastener for Equipment Assemblies 01120-50820 01123-50820 | 1 | $0.99 | |||
Showing 1 to 9 of 9 parts
Related Assemblies
-
DIAG-M12700-85766 M12700 HOOD(BONNET) SIDE COVER
View Diagram -
DIAG-M14002-85766 M14002 BONNET SUPPORT [NEW]
View Diagram -
DIAG-M12400-85766 M12400 BONNET LOCK
View Diagram
