Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | PLATE(DOOR LOCK,1) TC860-85100 | 1 | $56.67 | |||
| 020 | RUBBER TC860-85110 | 1 | $21.97 | |||
| 030 | RUBBER(DOOR LOCK,2) TC860-85120 | 1 | $21.97 | |||
| 040 | PLATE(DOOR LOCK2) TC860-85140 | 1 | $67.43 | |||
| 050 | Cap Nut 34070-71060 | 1 | $2.50 | |||
| 060 | ASSY HANDLE REAR T3635-84512 T3685-84510 | 1 | $47.93 | |||
| 070 | SCREW 03054-50620 03014-50620 | 1 | $0.36 | |||
| 070 | SCREW, PAN HEAD 03014-60616 03014-50616 | 1 | $0.64 | |||
| 080 | COLLAR(DOOR) TC860-85150 | 1 | $8.14 | |||
| 090 | Nut Fastener 02013-50060 02014-50060 | 1 | $0.60 | |||
| 100 | Plain Flat Washer 3J099-05763 04013-50060 | 1 | $0.60 | |||
| 110 | STAY(DOOR,LOCK) TC860-85172 TC860-85192 | 1 | $34.20 | |||
| 120 | BRACKET, REARLOC T3635-84532 T3685-84530 | 1 | $19.63 | |||
| 130 | SCREW, PAN HEAD 03054-50514 | 1 | $0.26 | |||
| 140 | NUT T0270-70890 | 1 | $9.13 | |||
| 150 | BOLT, FLANGE 30810-18870 | 1 | $1.07 | |||
| 160 | LEVER(DOOR,LOCK) TC860-85200 TC860-85202 | 1 | $13.38 | |||
| 170 | Plain Washer (Flat Washer) 04015-50080 | 1 | $0.36 | |||
| 180 | SPRING 37560-44880 | 1 | $1.44 | |||
| 190 | Nut Fastener 15021-05280 02552-50080 | 1 | $0.60 | |||
| 200 | COLLAR T0270-61610 | 1 | $2.42 | |||
| 210 | LEVER, ASSY(DOOR,LOCK) TC860-85220 | 1 | $61.64 | |||
Showing 1 to 22 of 22 parts
Related Assemblies
-

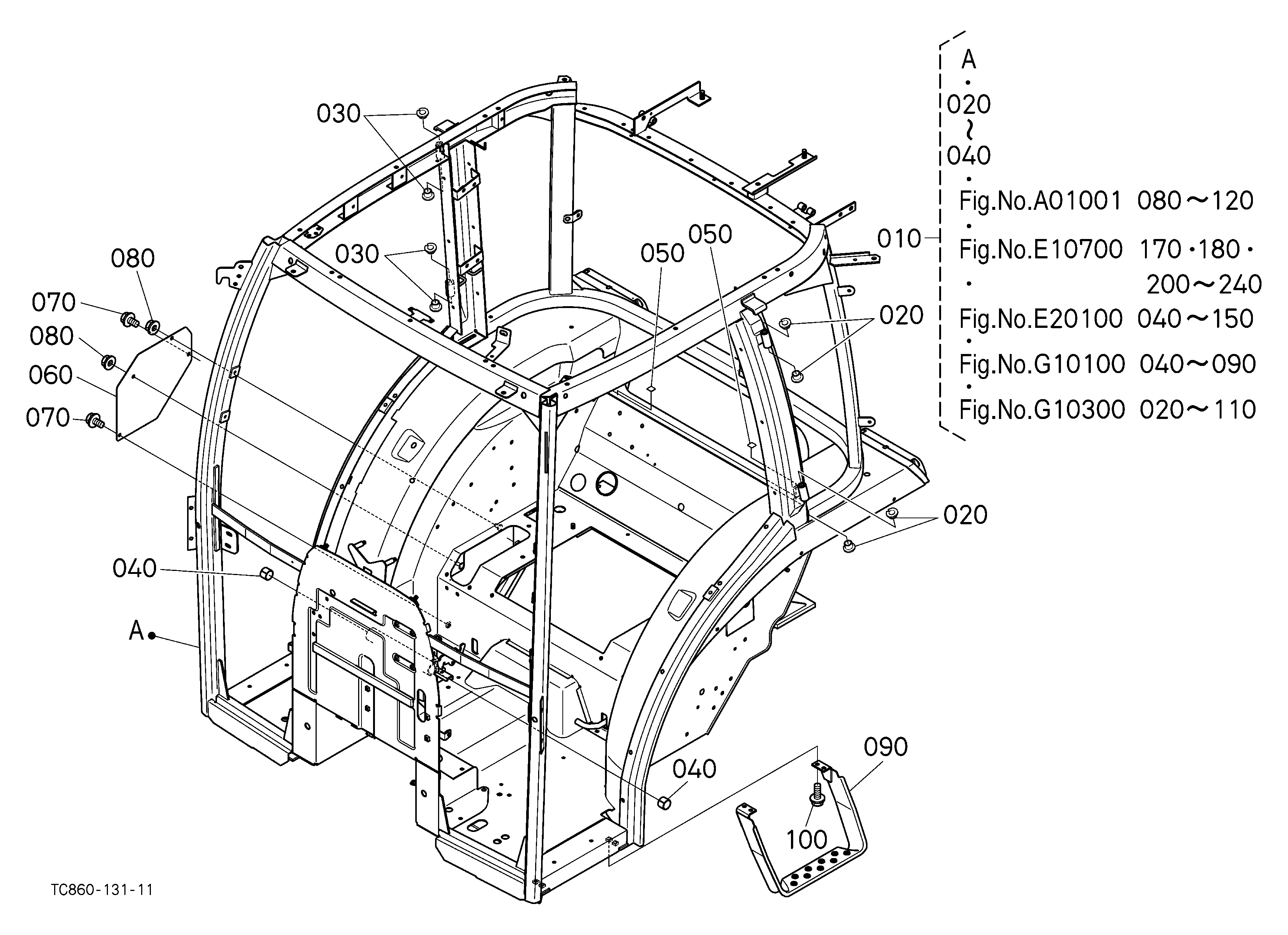

DIAG-M10101-125554 M10101 CAB FRAME
