Kubota M5-091HD M14000 BONNET SUPPORT Parts Diagram

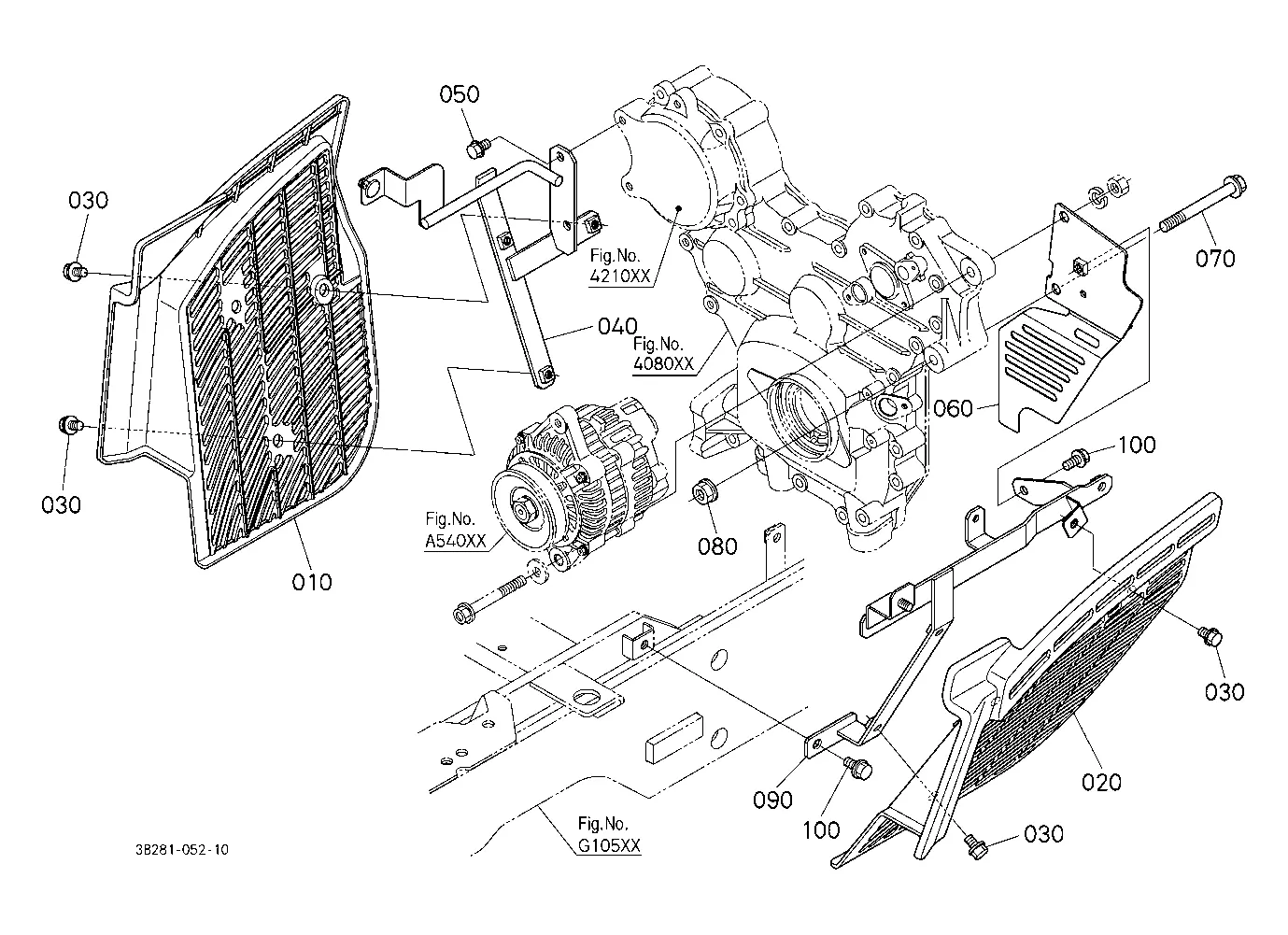

Exploded-view parts diagram "M14000 BONNET SUPPORT" for the Kubota M5-091HD, Kubota M5-091HD12, Kubota M5-091HF, Kubota M5-111HD, Kubota M5-111HD12 and Kubota M5-111HF. 12 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 12 mm x 25 mm Bolt 01133-51225 | 1 | $2.17 | ||||
| BOLT 01025-50816 01125-50825 | 1 | $1.77 | ||||
| Bolt Fastener for Equipment Assemblies 01120-50820 01123-50820 | 1 | $0.99 | ||||
| COVER, STEERING 3B291-63163 | 1 | $118.12 | ||||
| Flange Bolt - M8 x 1.25 x 16 mm 01754-50816 | 1 | $4.33 | ||||
| GRIP, FRONT LH 3B291-87972 | 1 | $107.54 | ||||
| GROMMET 3C081-63330 | 1 | $4.88 | ||||
| M6 Flange Bolt 01754-50616 | 1 | $2.36 | ||||
| STAY 3B291-77740 | 1 | $103.64 | ||||
| STAY SUPPOR, BON 3B291-83580 | 1 | $10.39 | ||||
| SUPPORT(BONNET R 3B291-83592 3B291-83593 | 1 | $407.88 | ||||
| SUPPORT,BONNET R 3B791-83650 | 1 | $103.25 | ||||
