Kubota M8200SDTN-CAB M12502 HOOD(BONNET) SIDE [CAB TYPE] Parts Diagram
Exploded-view parts diagram "M12502 HOOD(BONNET) SIDE [CAB TYPE]" for the Kubota M8200SDTN-CAB. 15 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | KIT SIDE PANEL L 3E481-97330 | 1 | $511.65 | |||
| 020 | LABEL, WARNING 32310-49580 | 1 | $5.15 | |||
| 030 | COMP. BONNET, SI 3E481-83160 | 1 | $511.65 | |||
| 040 | BRACKET 3A011-83240 | 1 | $13.36 | |||
| 050 | Bolt (Fastener) 01754-50610 | 1 | $1.48 | |||
| 060 | ASSY GRILLE 3A751-83220 3A751-83222 | 1 | $285.73 | |||
| 065 | RUBBER INSULATOR 3A751-17270 | 1 | $12.39 | |||
| 070 | RUBBER INSULATOR 3A751-17280 | 1 | $17.28 | |||
| 080 | NUT 3A011-83490 | 1 | $2.50 | |||
| 090 | NUT 3A011-83260 | 1 | $1.91 | |||
| 110 | M6 Flange Bolt 01754-50616 | 1 | $2.36 | |||
| 120 | Plain Flat Washer 04015-60060 04015-70060 | 1 | $0.60 | |||
| 130 | NUT 12264-92020 | 1 | $1.45 | |||
| 140 | SHEILD, BONNET S 3A111-83810 | 1 | $31.46 | |||
| 150 | SPONGE 3A011-17200 | 1 | $22.38 | |||
Showing 1 to 15 of 15 parts
Related Assemblies
-
DIAG-M12002-85849 M12002 HOOD(BONNET) UPPER [CAB TYPE]
View Diagram -
DIAG-M12702-85849 M12702 HOOD(BONNET) SIDE COVER [CAB TYPE]
View Diagram -

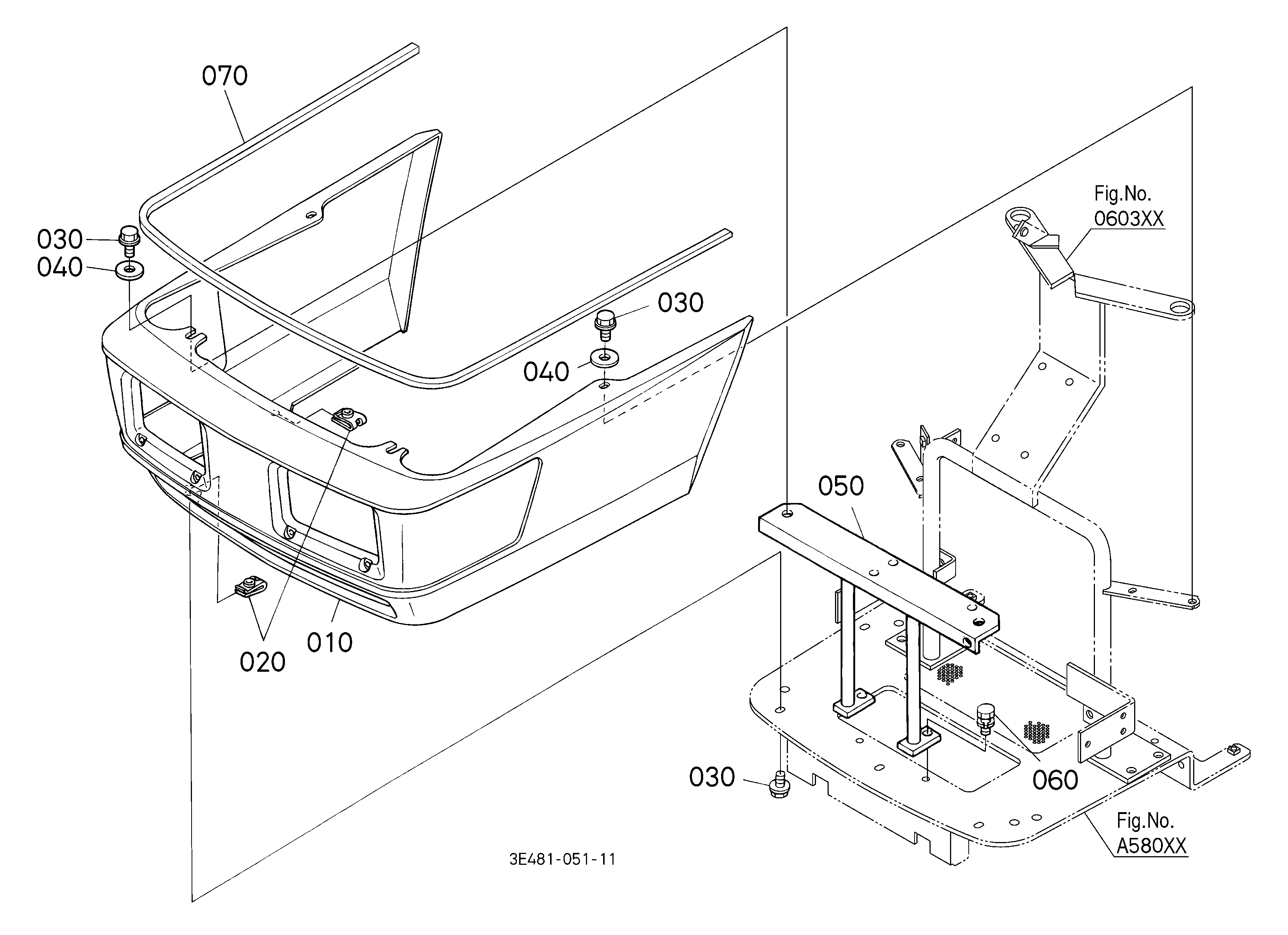

DIAG-M11502-85849 M11502 HOOD(BONNET) FRONT [CAB TYPE]
