Kubota M8200DTN/M8200SDTN M12501 HOOD(BONNET) SIDE [ROPS TYPE] Parts Diagram

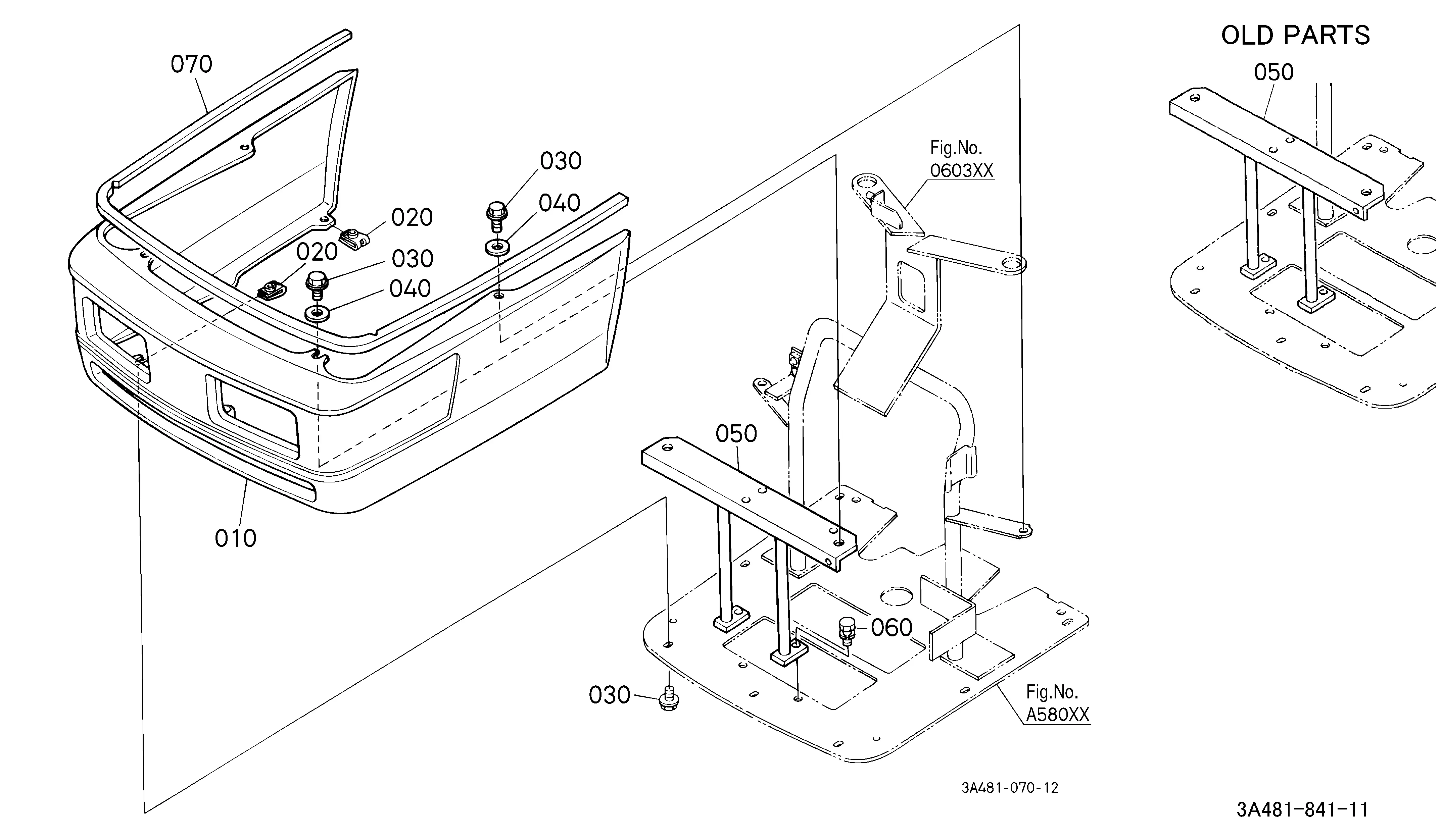

Exploded-view parts diagram "M12501 HOOD(BONNET) SIDE [ROPS TYPE]" for the Kubota M8200DTN/M8200SDTN. 16 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.

Scroll to zoom Click a part # to view details

Ref # Part Number Qty. Avl. Price (USD) Action
010 KIT BONNET,SIDE 3A111-97330 1 AVAILABLE TO ORDER $511.51
020 LABEL, WARNING 32310-49580 1 AVAILABLE TO ORDER $5.15
030 COMP BONNET SIDE 3A111-83160 3A111-83162 1 AVAILABLE TO ORDER $511.51
040 BRACKET 3A011-83240 1 AVAILABLE TO ORDER $13.36
050 Bolt (Fastener) 01754-50610 1 10 IN STOCK $1.48
060 ASSY GRILLE 3A751-83220 3A751-83222 1 AVAILABLE TO ORDER $285.73
070 NUT 3A011-83490 1 5 IN STOCK $2.50
080 NUT 3A011-83260 1 AVAILABLE TO ORDER $1.91
085 RUBBER INSULATOR 3A751-17270 1 AVAILABLE TO ORDER $12.39
090 RUBBER INSULATOR 3A751-17280 1 AVAILABLE TO ORDER $17.28
110 M6 Flange Bolt 01754-50616 1 13 IN STOCK $2.36
120 Plain Flat Washer 04015-60060 04015-70060 1 14 IN STOCK $0.60
130 Flange Nut 02751-50060 1 6 IN STOCK $0.60
130 NUT 12264-92020 1 AVAILABLE TO ORDER $1.45
140 SHEILD, BONNET S 3A111-83810 1 AVAILABLE TO ORDER $31.46
150 SPONGE 3A011-17200 1 AVAILABLE TO ORDER $22.38

Showing 1 to 16 of 16 parts
