Kubota M4800SU-F M12500 HOOD(BONNET) SIDE Parts Diagram

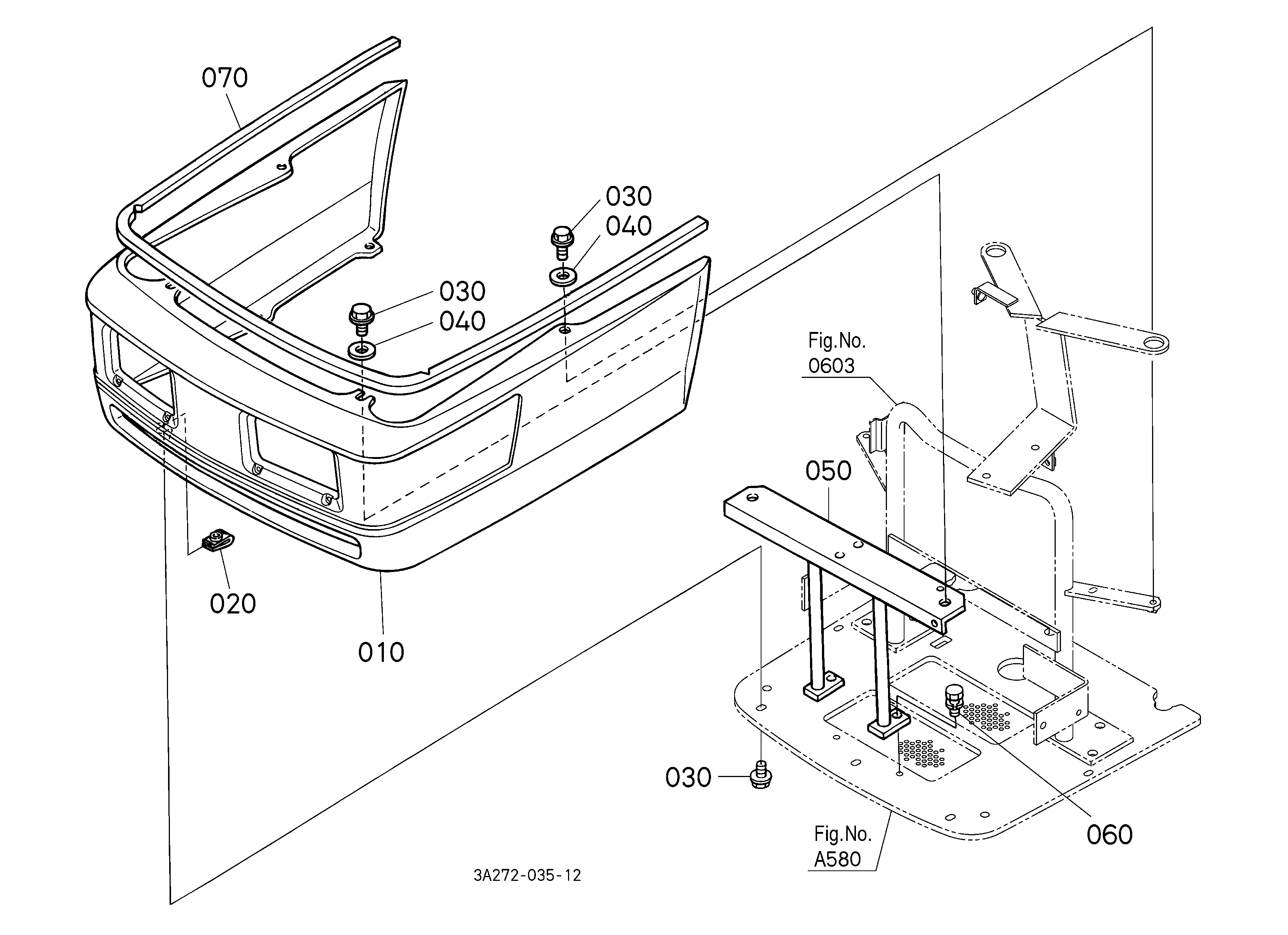

Exploded-view parts diagram "M12500 HOOD(BONNET) SIDE" for the Kubota M4800SU-F and Kubota M4800SUD-F. 17 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | KIT BONNET,SIDE 3A111-97330 | 1 | $511.51 | |||
| 020 | LABEL, WARNING 32310-49580 | 1 | $5.15 | |||
| 030 | COMP BONNET SIDE 3A111-83160 3A111-83162 | 1 | $511.51 | |||
| 040 | BRACKET 3A011-83240 | 1 | $13.36 | |||
| 050 | Flange Bolt 01754-50612 | 1 | $1.87 | |||
| 060 | ASSY GRILLE 3A751-83220 3A751-83222 | 1 | $285.73 | |||
| 080 | NUT 3A011-83490 | 1 | $2.50 | |||
| 090 | NUT 3A011-83260 | 1 | $1.91 | |||
| 095 | RUBBER INSULATOR 3A751-17270 | 1 | $12.39 | |||
| 096 | RUBBER INSULATOR 3A751-17280 | 1 | $17.28 | |||
| 100 | Bolt (Fastener) 01754-50610 | 1 | $1.48 | |||
| 110 | M6 Flange Bolt 01754-50616 | 1 | $2.36 | |||
| 120 | Plain Flat Washer 04015-60060 04015-70060 | 1 | $0.60 | |||
| 130 | NUT 12264-92020 | 1 | $1.45 | |||
| 140 | SPONGE 3A011-17200 | 1 | $22.38 | |||
| 150 | INSULATION,HEAT 3A275-83810 | 1 | $19.34 | |||
| 150 | SHEILD, BONNET S 3A111-83810 | 1 | $31.46 | |||
Showing 1 to 17 of 17 parts
