Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | BRACKET, LOCK 3C081-21792 TC420-41810 | 1 | $23.86 | |||
| 020 | PIN, JOINT 05122-50614 | 1 | $1.51 | |||
| 030 | Plain Flat Washer 04015-60060 04015-70060 | 1 | $0.60 | |||
| 030 | Plain Washer 04014-20060 04014-50060 | 1 | $0.46 | |||
| 040 | Snap Pin 05525-50600 05525-70600 | 1 | $1.48 | |||
| 050 | SPRING, LOCK BON TC402-21720 | 1 | $6.91 | |||
| 060 | LEVER, BONNET 3N300-83472 TC250-83470 | 1 | $16.23 | |||
Showing 1 to 7 of 7 parts
Related Assemblies
-

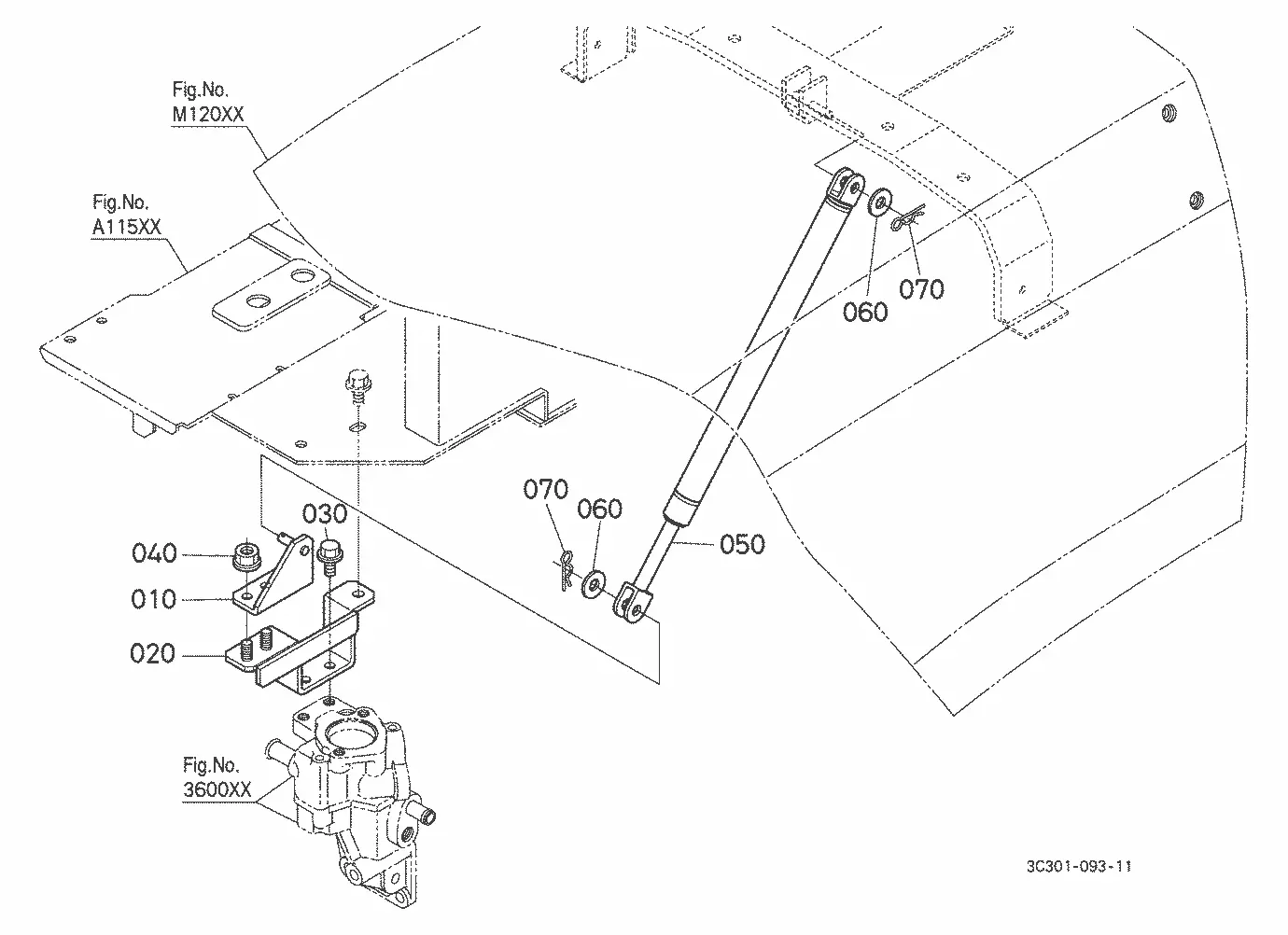

DIAG-M12300-85745 M12300 HOOD(BONNET) DAMPER
View Diagram -
DIAG-M12700-85745 M12700 HOOD(BONNET) SIDE COVER
View Diagram -

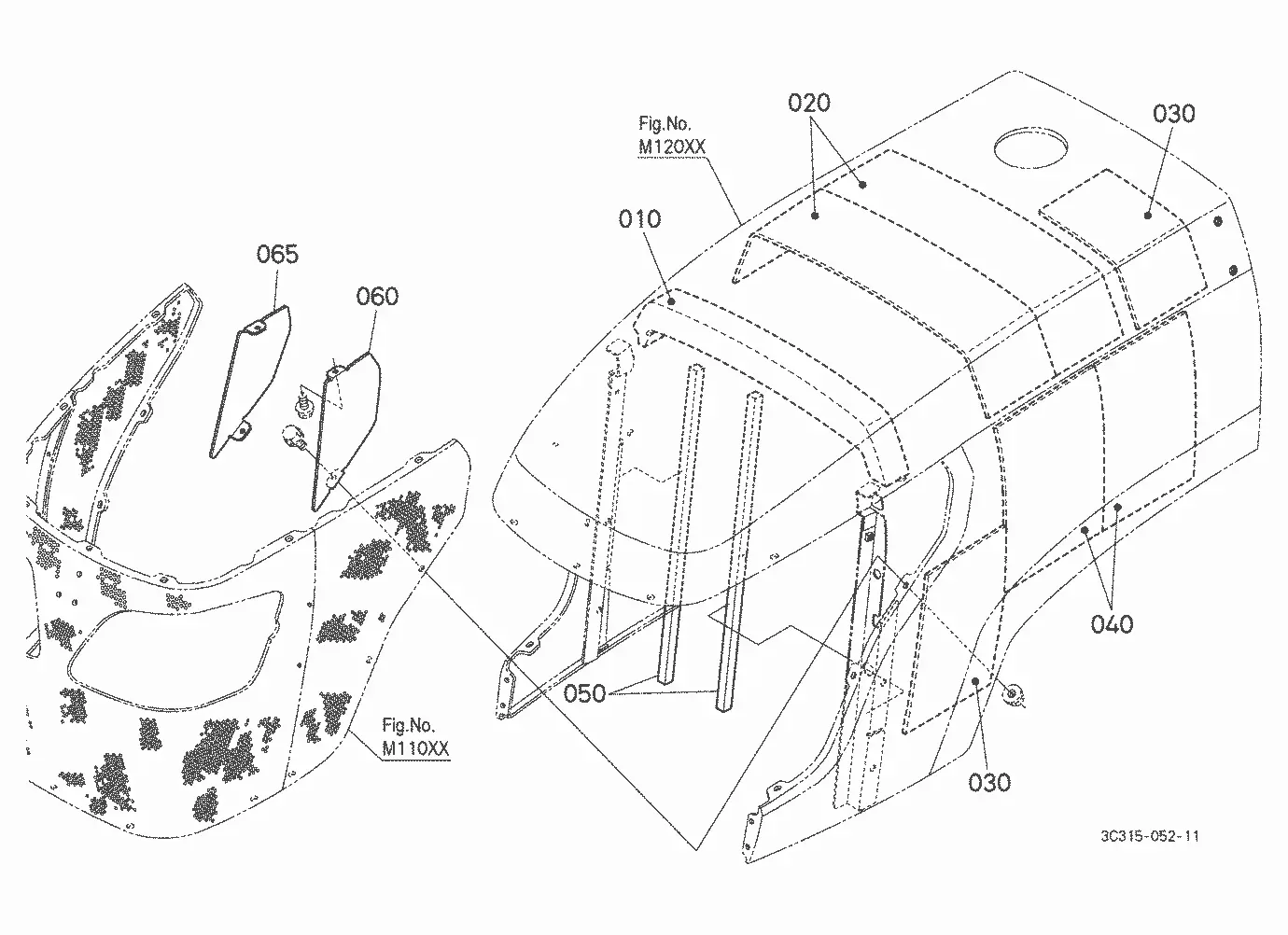

DIAG-M12100-85745 M12100 HOOD(BONNET) UPPER(SOUND ABSORBER/INSULATOR)
View Diagram
