Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | BONNET, COMP 3A011-83025 3A011-83026 | 1 | $1,244.10 | |||
| 020 | BONNET, FRONT 3A011-83290 3A011-83295 | 1 | $203.37 | |||
| 030 | Flange Bolt 01754-50812 | 1 | $3.93 | |||
| 040 | Flange Nut TA140-18310 02751-50080 | 1 | $3.77 | |||
| 050 | SUPPORT 3A011-83460 3A011-83463 | 1 | $120.90 | |||
| 060 | SCREW, CSK-HD 03016-50614 | 1 | $0.64 | |||
| 070 | Washer 04412-50060 | 1 | $0.60 | |||
| 080 | Bolt (Fastener) 01754-50610 | 1 | $1.01 | |||
| 090 | LINK,BONNET 3A111-83310 | 1 | $117.95 | |||
| 110 | PIN, SPLIT 05511-20215 05511-50215 | 1 | $0.14 | |||
| 120 | HANDLE, MASCOT 6C040-54260 | 1 | $42.43 | |||
| 130 | LEVER 3A011-83470 3A011-83473 | 1 | $43.92 | |||
| 140 | SCREW, SELF TAPP 03614-50416 | 1 | $0.60 | |||
| 150 | PLUG 3A011-83630 | 1 | $15.49 | |||
| 160 | LOCK 3A011-83423 | 1 | $43.83 | |||
| 190 | GUIDE 3A011-83530 | 1 | $5.02 | |||
| 210 | SPRING 3A011-83500 | 1 | $15.23 | |||
| 220 | PLUG, BLIND 41182-61150 | 1 | $2.06 | |||
| 230 | SPRING 3A011-83660 | 1 | $25.20 | |||
| 240 | PIN 3A011-83600 | 1 | $2.50 | |||
| 250 | PLUG 3A111-83750 | 1 | $2.65 | |||
| 260 | SPONGE 3A011-04330 | 1 | $92.56 | |||
| 270 | BRACKET 3A011-83060 3A011-83062 | 1 | $60.02 | |||
| 280 | SPONGE, UPPER 3A211-17170 | 1 | $80.10 | |||
Showing 1 to 24 of 24 parts
Related Assemblies
-

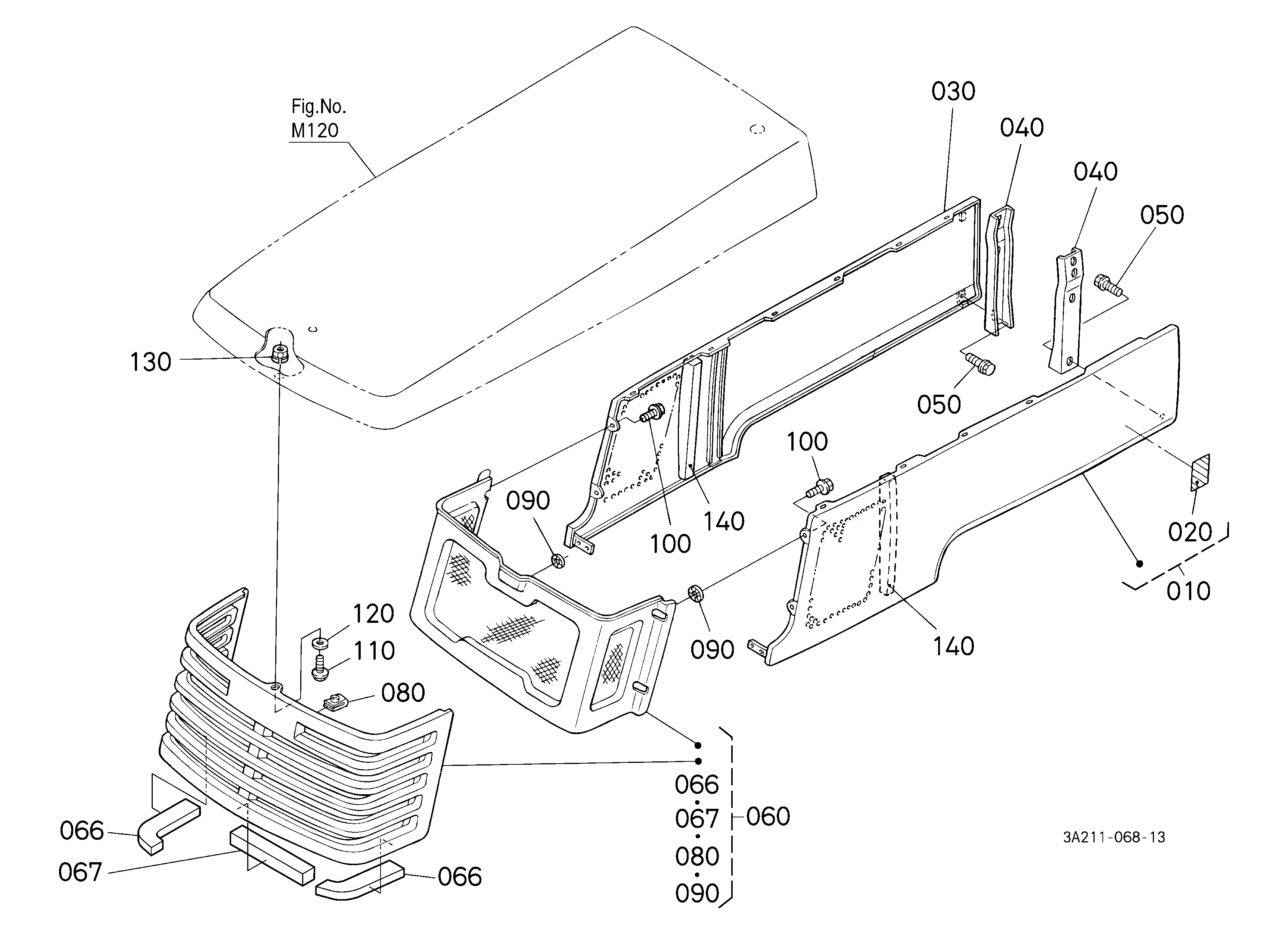

DIAG-M11500-85708 M11500 HOOD(BONNET) FRONT
View Diagram -

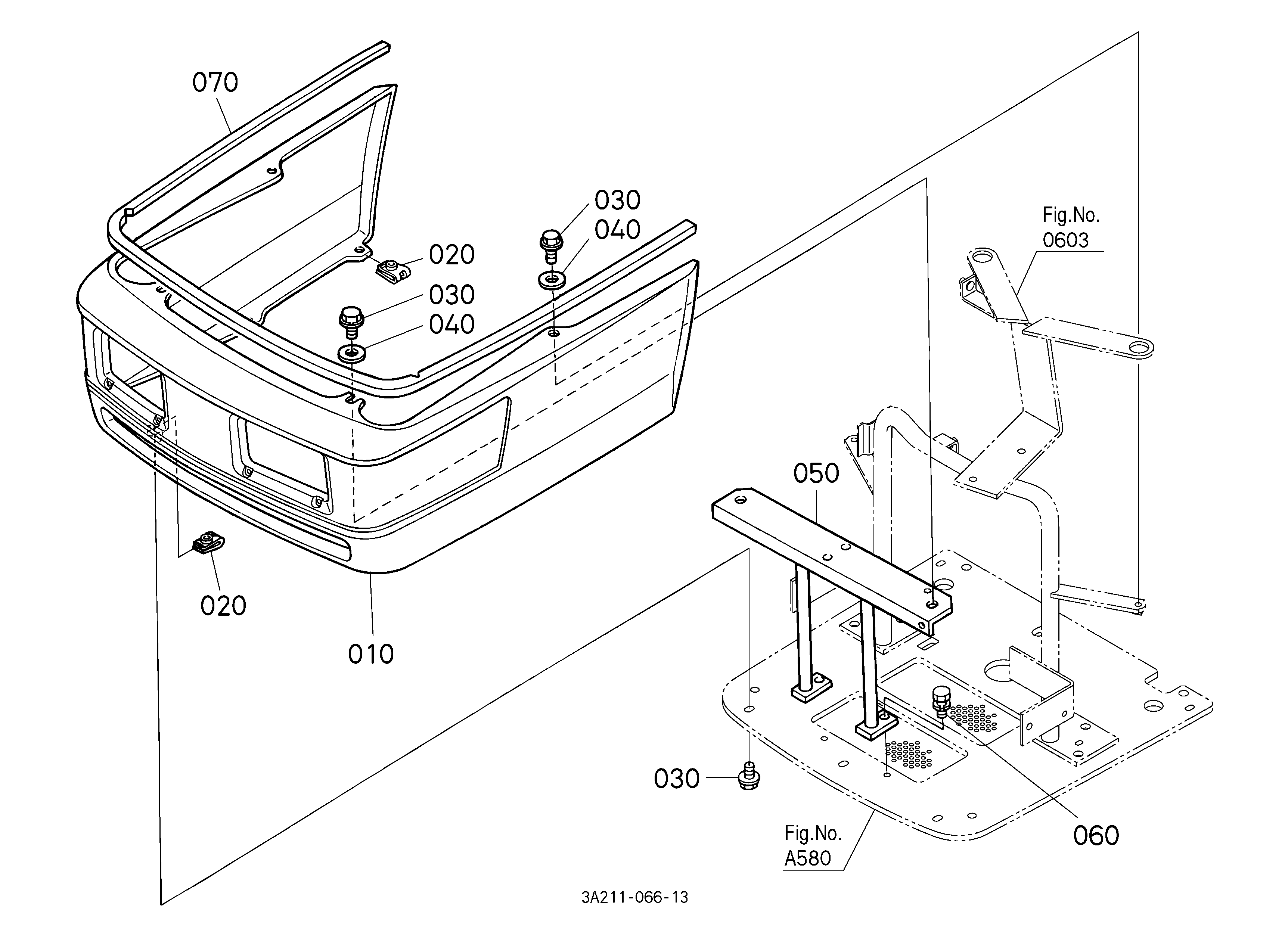

DIAG-M12500-85708 M12500 HOOD(BONNET) SIDE
View Diagram -
DIAG-J44700-85708 J44700 AUXILIARY CONTROL VALVE (SCD) [COMPONENT PARTS]
View Diagram
