Kubota B26 M12000 SIDE COVER Parts Diagram

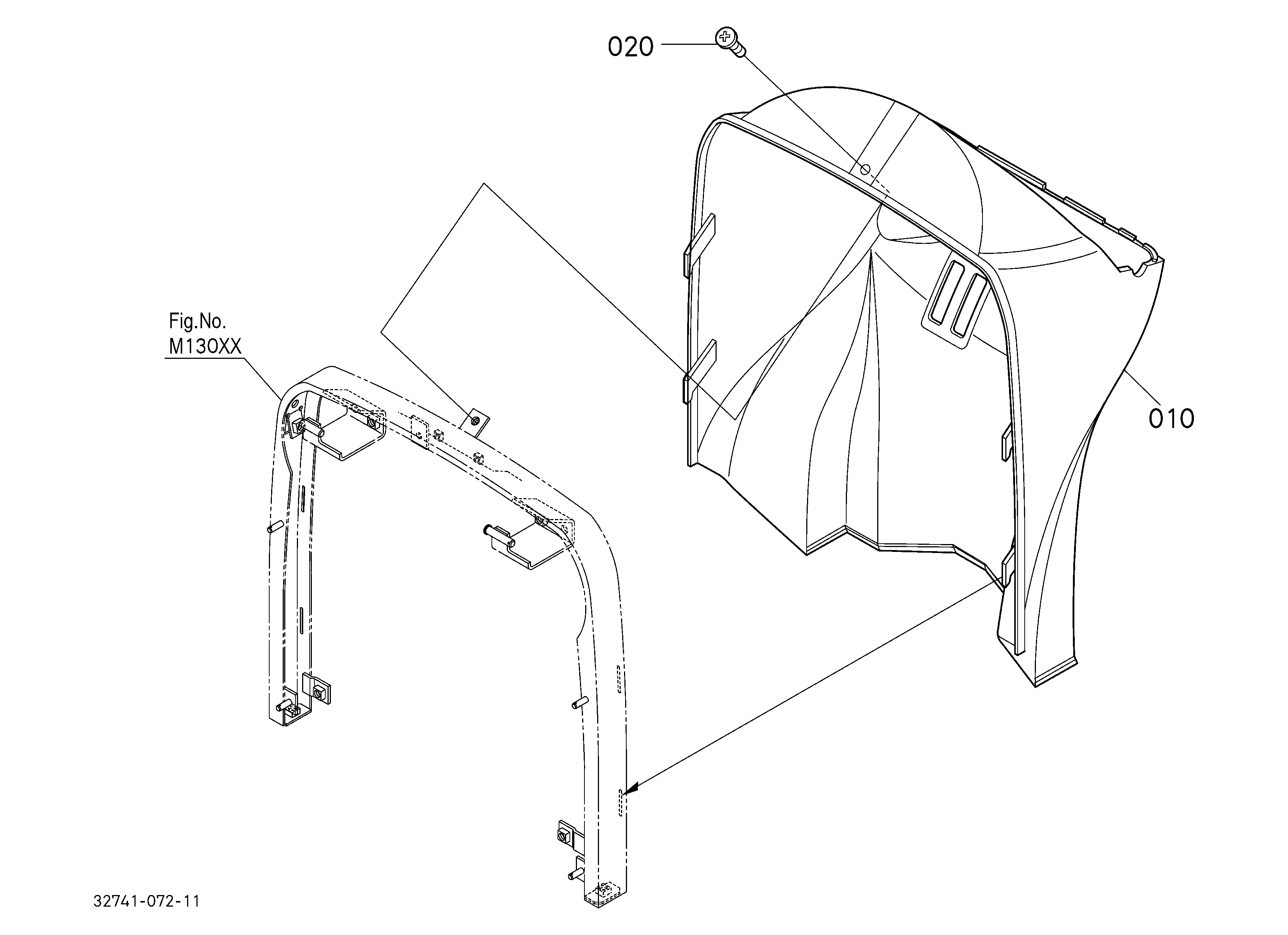

Exploded-view parts diagram "M12000 SIDE COVER" for the Kubota B26. 14 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | COMP COVER, RH 32741-54352 | 1 | $329.66 | |||
| 020 | FITTING,METAL 32741-41380 | 1 | $36.76 | |||
| 020 | FITTING,METAL,KI TD060-41380 HTD00-41380 | 1 | $32.92 | |||
| 030 | PLATE, RETAINER 3F740-83850 32771-41460 | 1 | $2.15 | |||
| 030 | PLATE,RETAINER 32771-41462 | 1 | $1.96 | |||
| 040 | FITTING,METAL TD060-41390 32741-41390 | 1 | $13.45 | |||
| 050 | Release Rubber 66591-54580 | 1 | $1.49 | |||
| 060 | GROMMET 6E100-54390 | 1 | $8.66 | |||
| 060 | GROMMET (8.2X23X 6A671-54390 | 1 | $9.66 | |||
| 080 | COVER, KIT SIDE 32741-99352 | 1 | $269.47 | |||
| 080 | COVER,KIT.SIDE A 32741-99353 | 1 | $202.98 | |||
| 090 | LABEL(START,CAUT 6F170-47180 | 1 | $11.69 | |||
| 090 | LABEL, START CAU 6C091-49650 6C090-49650 | 1 | $8.74 | |||
| 110 | TRIM LH 5K250-61380 | 1 | $10.94 | |||
Showing 1 to 14 of 14 parts
