Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | COVER 6C040-53510 6C040-53514 Discontinued | 1 | $190.78 | |||
| 020 | COVER, FRAME 6C040-53520 6C040-53522 | 1 | $102.43 | |||
| 030 | SCREW 37410-61720 | 1 | $2.13 | |||
| 040 | PILLAR, CENTER 6C040-54210 6C040-54213 | 1 | $58.11 | |||
| 050 | BOLT 01130-51022 01133-51022 Discontinued | 1 | $1.94 | |||
| 060 | PILLAR, CENTER 6C040-54220 6C040-54225 | 1 | $201.80 | |||
| 070 | BOLT 6C040-54610 Discontinued | 1 | $1.19 | |||
| 070 | Bolt Fastener 01125-60816 01125-70816 | 1 | $1.03 | |||
| 080 | STAY, PILLAR 6C040-54230 | 1 | $40.41 | |||
| 090 | Bolt with Washer 01023-50615 01023-50616 | 1 | $0.99 | |||
| 100 | BRACKET 6C040-54283 | 1 | $16.29 | |||
| 110 | PLATE, SHUTTER 6C040-54550 | 1 | $59.59 | |||
| 120 | TRIM 6C040-54560 | 1 | $51.78 | |||
| 130 | GROMMET 54721-38340 | 1 | $10.35 | |||
| 140 | Spring Washer, Metric (M) 04512-50100 | 1 | $0.67 | |||
| 150 | Nut 02172-50100 02116-50100 | 1 | $0.14 | |||
| 160 | KIT, LH SIDE COV 6C040-54324 6C040-54010 | 1 | $225.67 | |||
| 170 | LABEL, START CAU TA041-49650 TA040-49650 | 1 | $6.99 | |||
| 180 | COVER LH 6C040-54333 | 1 | $51.80 | |||
| 190 | NET 6C040-54390 | 1 | $7.77 | |||
| 200 | Nut (Fastener) 55611-44190 | 1 | $1.07 | |||
| 210 | COVER, SIDE RH 6C040-54350 6C040-54355 | 1 | $52.43 | |||
| 220 | COVER RH 6C040-54383 | 1 | $192.06 | |||
| 250 | Front Grille and Side Cover Spring 6C040-54360 6C040-54364 | 1 | $8.30 | |||
Showing 1 to 24 of 24 parts
Related Assemblies
-

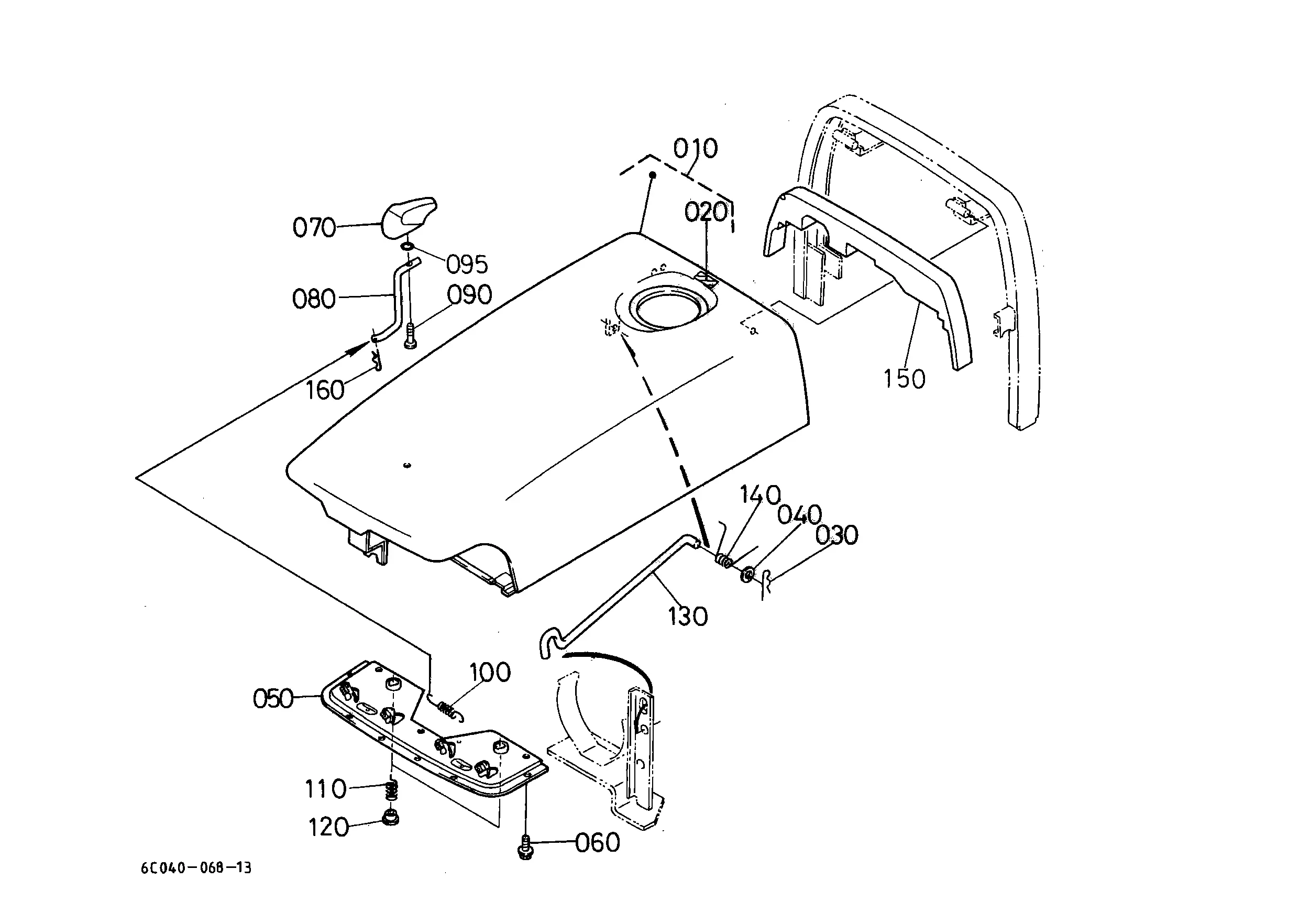

DIAG-M10500-84451 M10500 HOOD (BONNET)
View Diagram -
DIAG-M21000-84451 M21000 FENDER
View Diagram -

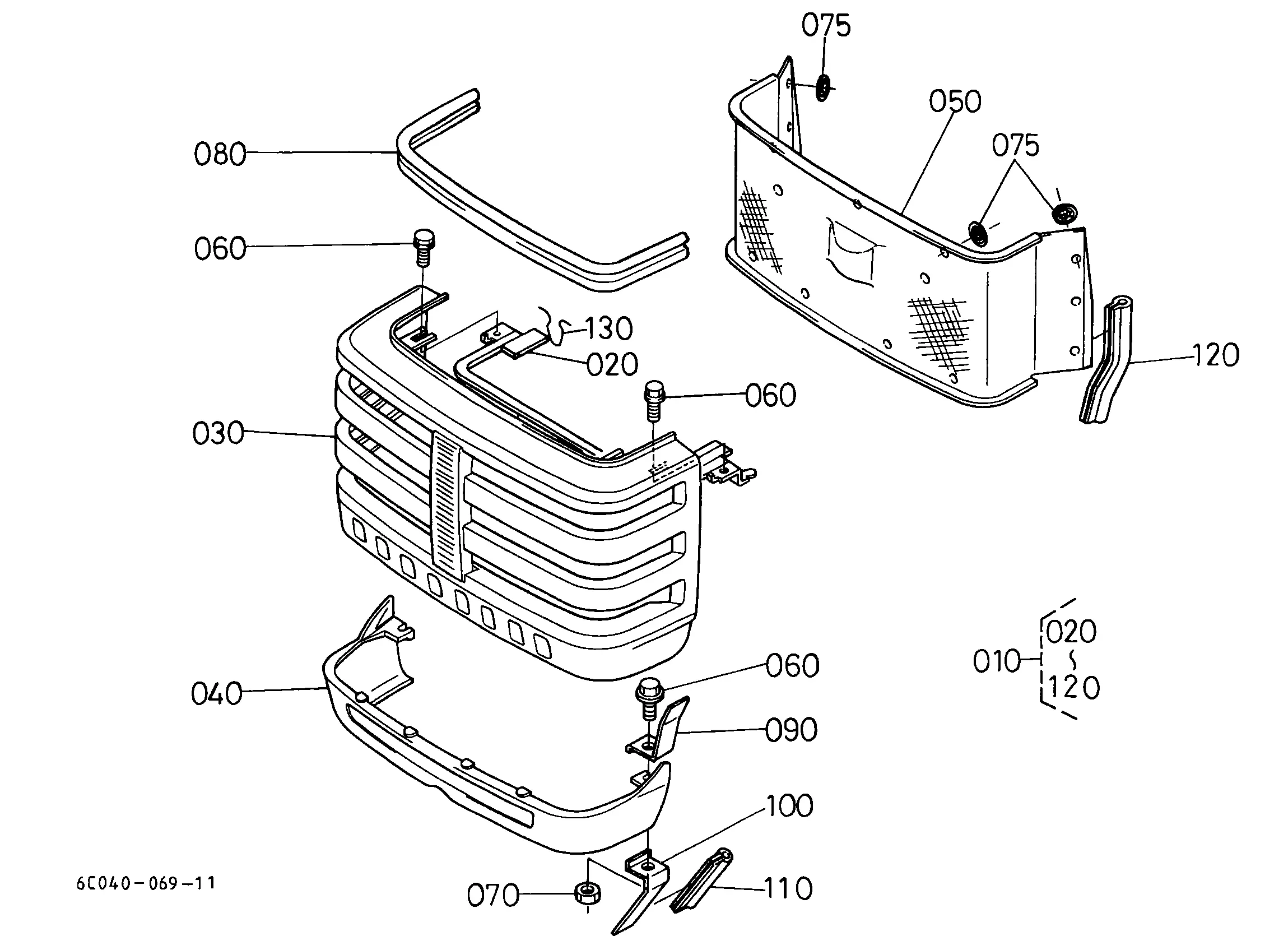

DIAG-M10100-84451 M10100 FRONT GRILLE
View Diagram
