Kubota L5070-CAB M11210 FENDER COVER LH Parts Diagram

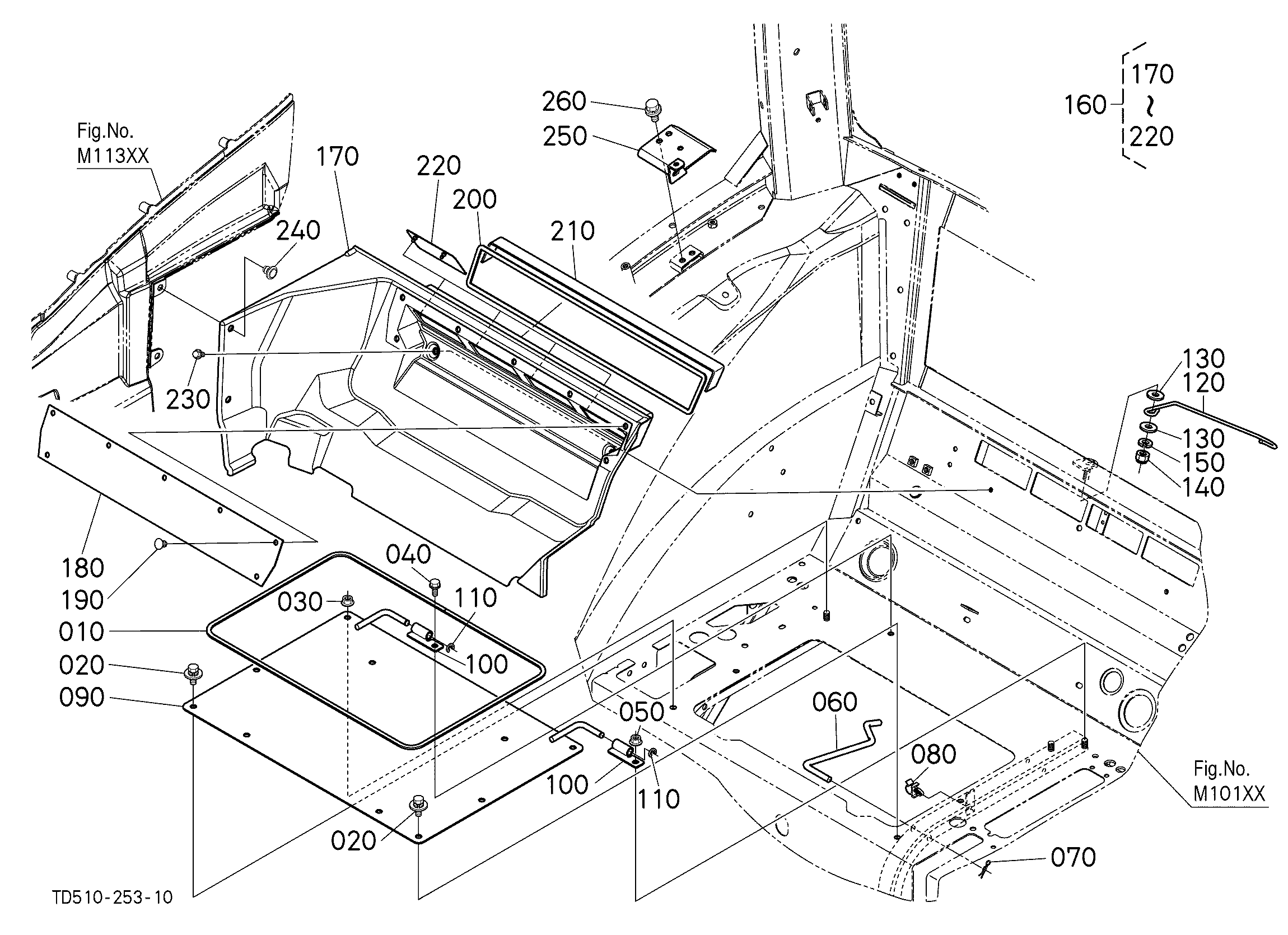

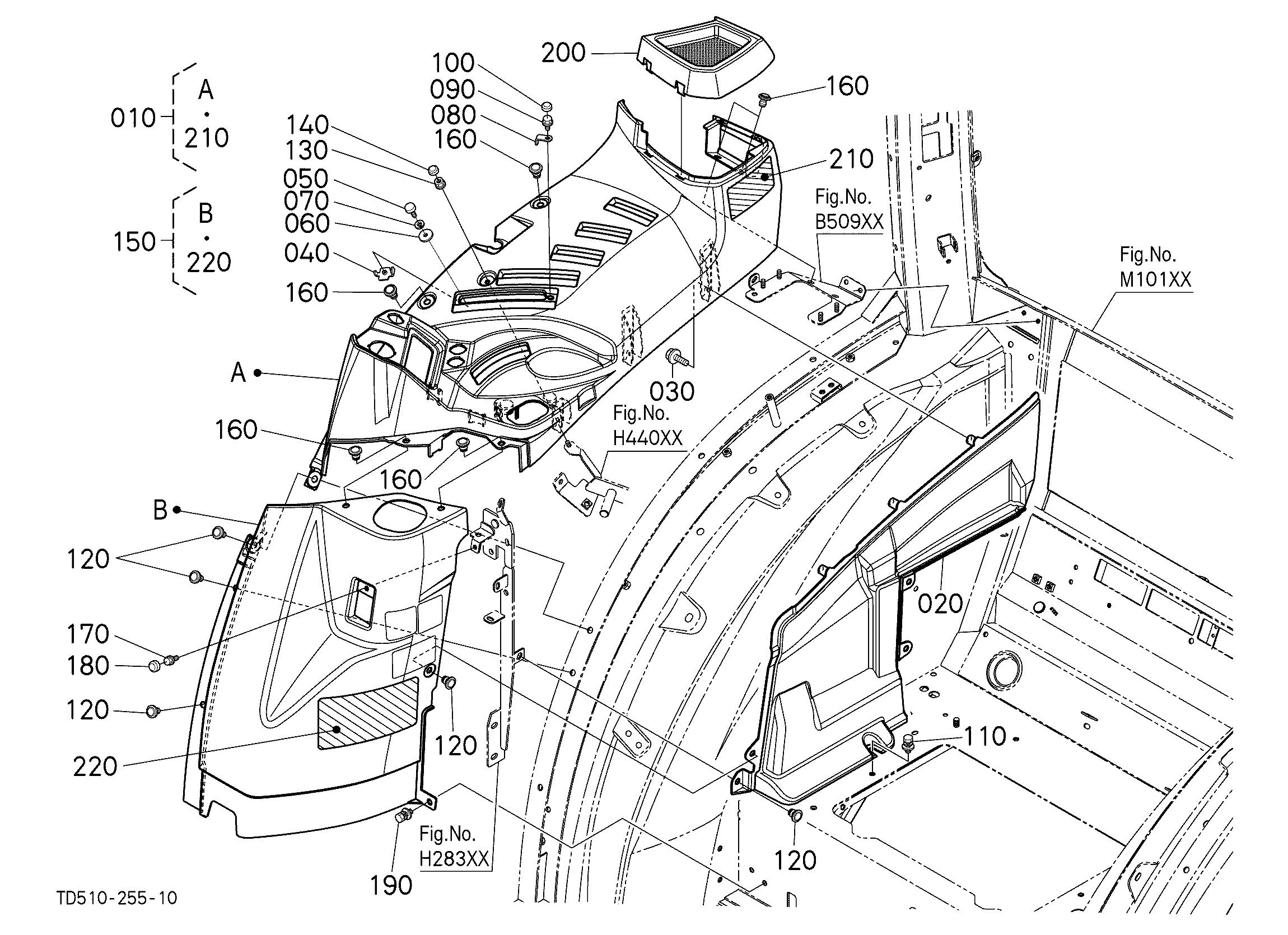

Exploded-view parts diagram "M11210 FENDER COVER LH" for the Kubota L5070-CAB and Kubota L6070-CAB. 10 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 005 | RIVET 3B881-74240 | 1 | $4.67 | |||
| 020 | COVER,KIT TD540-99530 | 1 | $100.90 | |||
| 060 | NUT T2250-41910 | 1 | $4.85 | |||
| 070 | Flange Bolt 01754-50612 | 1 | $1.87 | |||
| 100 | COVER(STORAGE,PP) TD570-74152 | 1 | $136.12 | |||
| 130 | SCREW, PAN HEAD 03054-50414 | 1 | $0.44 | |||
| 140 | Flange Nut 02761-50040 | 1 | $2.50 | |||
| 150 | CIR-CLIP,EXTERNA 04613-00030 04613-50030 | 1 | $0.64 | |||
| 180 | Bolt 01121-50820 01125-70820 | 1 | $1.21 | |||
| 190 | LABEL(PARKING,WA 6F170-47430 | 1 | $9.31 | |||
Showing 1 to 10 of 10 parts
