Scroll to zoom Click a part # to view details

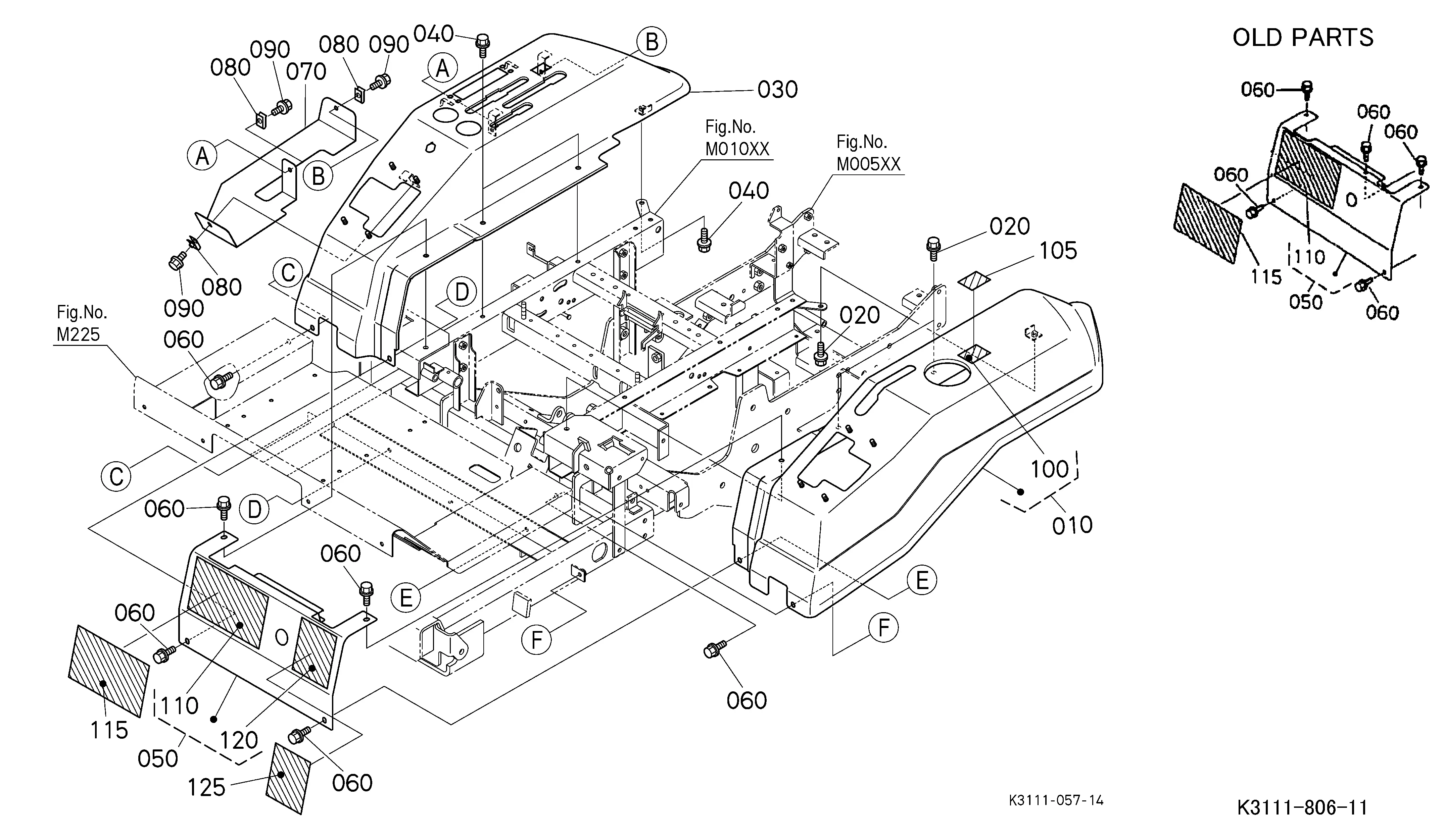

| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | KIT BONNET*TD165 K3111-98150 K3111-98155 | 1 | $1,274.85 | |||
| 020 | PLUG 30810-31150 | 1 | $5.74 | |||
| 030 | GRILLE K3111-54120 | 1 | $68.31 | |||
| 040 | BOLT BLACK M6X1. K3111-54160 K3111-54162 | 1 | $0.62 | |||
| 050 | TRIM,BONNET K3111-54170 | 1 | $12.36 | |||
| 052 | BONNET BUTTON K3111-54290 | 1 | $13.56 | |||
| 055 | Flange Nut 02751-50060 | 1 | $0.60 | |||
| 060 | STAY,LH K3111-54130 | 1 | $12.61 | |||
| 070 | STAY, RH K3111-54140 | 1 | $26.02 | |||
| 080 | BOLT 01010-00818 01053-50818 | 1 | $0.80 | |||
| 080 | BOLT 01011-50820 01053-50820 | 1 | $0.87 | |||
| 080 | Bolt Fastener for Equipment Assemblies 01120-50820 01123-50820 | 1 | $0.99 | |||
| 090 | Lock Washer 60009-60601 75599-33012 | 1 | $0.27 | |||
| 100 | BOLT, HOOD (BONN K3111-54260 K3111-54263 | 1 | $0.75 | |||
| 110 | CUSHION, HOOD K3111-54240 K3111-54242 | 1 | $6.87 | |||
| 120 | Plain Washer 04015-60100 04015-70100 | 1 | $1.05 | |||
| 130 | HAIRPIN COTTER * K5651-72720 75599-56004 | 1 | $0.51 | |||
| 130 | Snap Pin 05515-60800 05515-70800 | 1 | $1.48 | |||
| 140 | SPRING K3111-54212 K3111-54213 Discontinued | 1 | $24.88 | |||
| 140 | SPRING*** K3111-54210 | 1 | $25.98 | |||
| 150 | Bolt (Fastener) 01754-50610 | 1 | $1.48 | |||
| 150 | Flange Bolt 01754-50612 | 1 | $1.87 | |||
| 165 | LABEL,STARTER K3116-65830 Discontinued | 1 | $94.03 | |||
Showing 1 to 23 of 23 parts
Related Assemblies
-
DIAG-M21002-86441 M21002 FENDER
View Diagram -
DIAG-F20502-86441 F20502 PARKING BRAKE PEDAL
View Diagram -

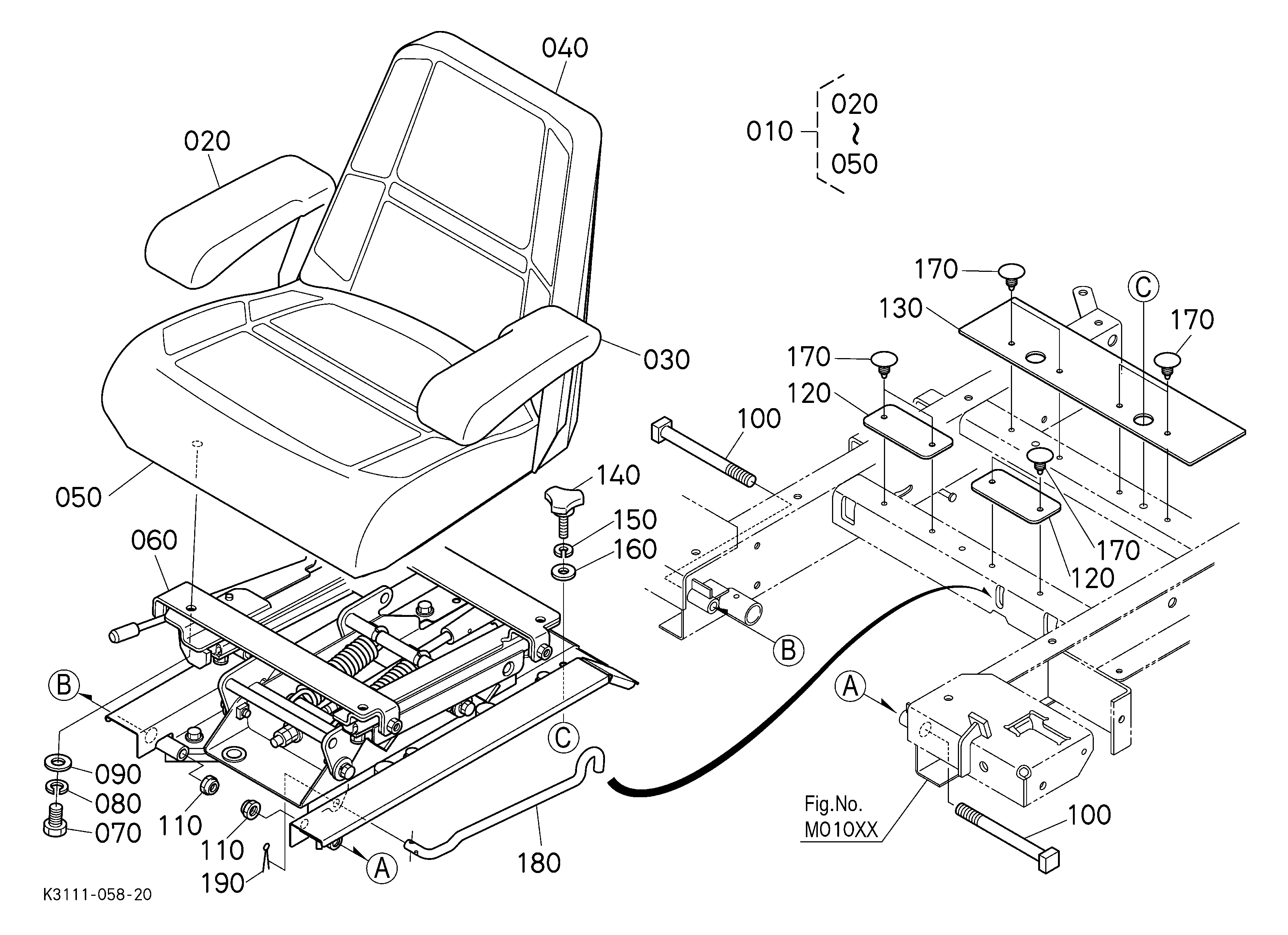

DIAG-M22002-86441 M22002 SEAT
View Diagram
