Kubota L3240HSTC M10101 CAB [A] Parts Diagram

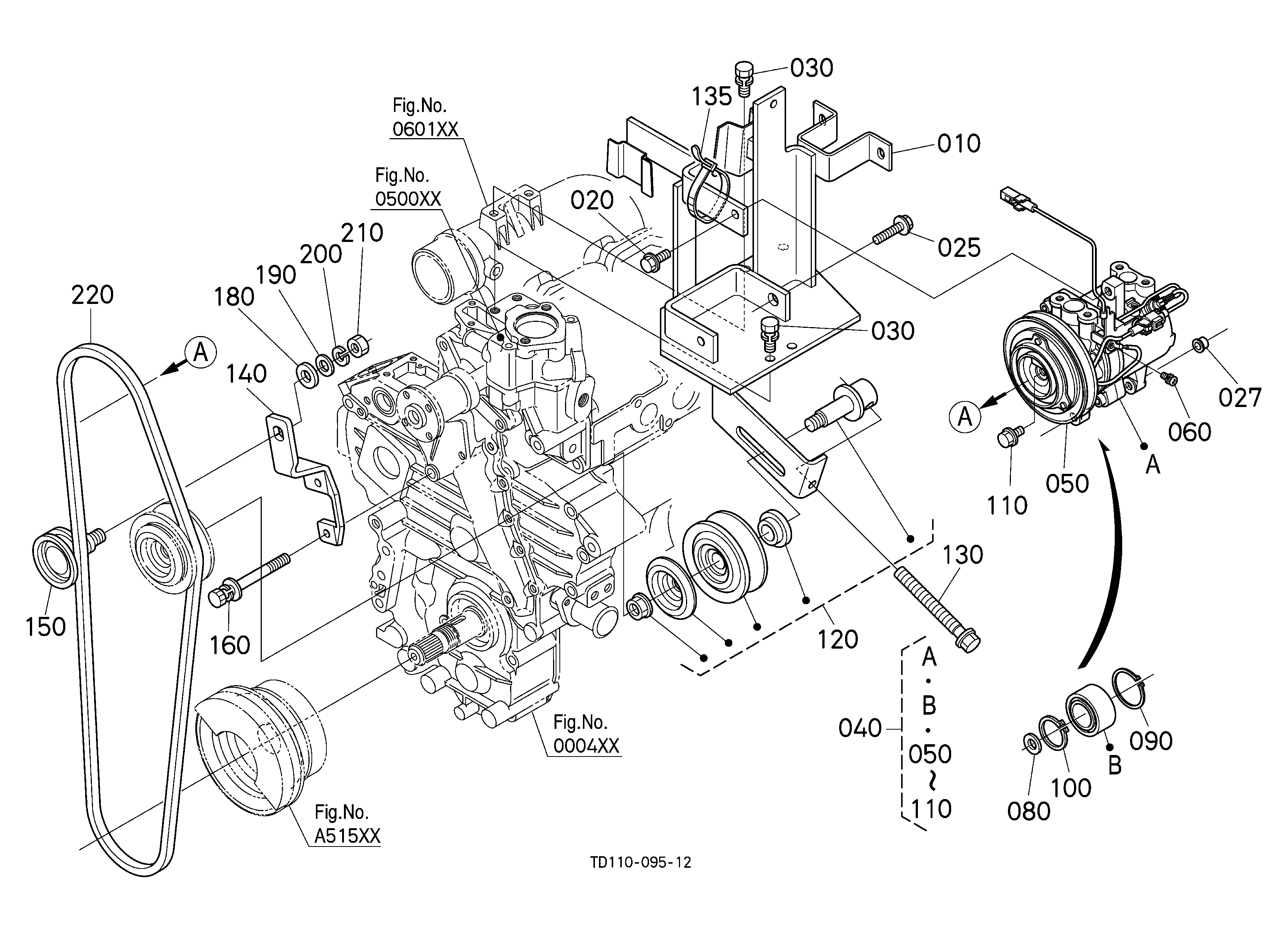

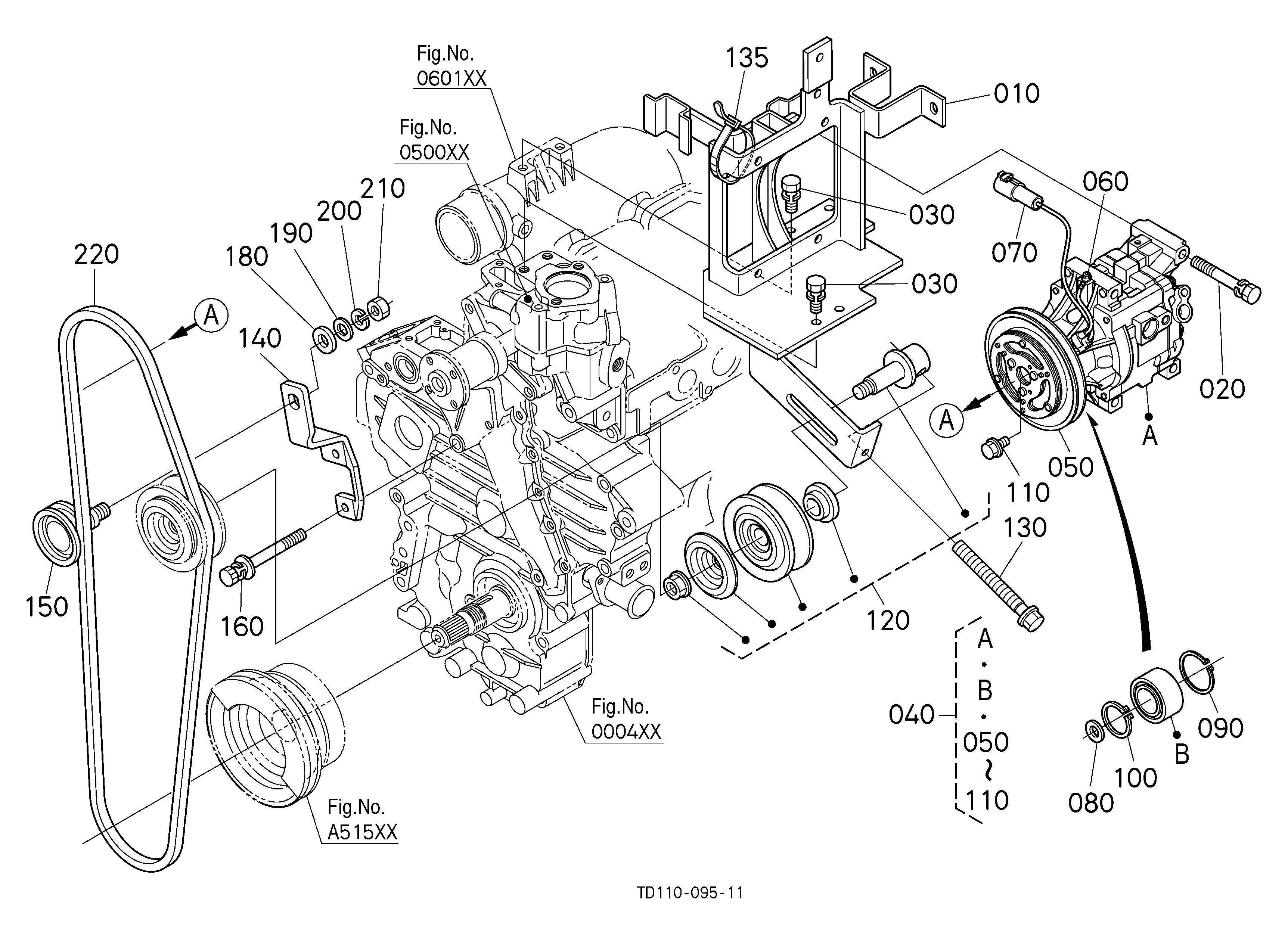

Exploded-view parts diagram "M10101 CAB [A]" for the Kubota L3240HSTC and Kubota L3940HSTC. 14 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | GUARD 34070-47512 | 1 | $27.47 | |||
| 020 | GUARD 34070-47522 | 1 | $27.47 | |||
| 030 | Flange Nut TA140-18310 02751-50080 | 1 | $4.62 | |||
| 040 | COMP CAB *** TD170-81006 Discontinued | 1 | $0.16 | |||
| 040 | COMP.CAB TD170-81008 | 1 | $9,695.90 | |||
| 040 | COMP.CAB *** TD170-81009 Discontinued | 1 | $7,247.83 | |||
| 045 | BUSH TD060-44080 | 1 | $10.84 | |||
| 050 | PLATE (FENDER) TD170-73822 | 1 | $66.67 | |||
| 060 | Flange Bolt 01754-50812 | 1 | $3.93 | |||
| 080 | CAP, RUBBER 36919-52760 | 1 | $4.36 | |||
| 110 | STEP, AUX. TD140-78470 | 1 | $253.75 | |||
| 120 | Flange Bolt - M8 x 1.25 x 16 mm 01754-50816 | 1 | $4.33 | |||
| 130 | MATERIAL, INTERI TD170-74110 | 1 | $145.14 | |||
| 140 | Tractor Rivet for Hood/Bonnet Panel Frame & Cab/Air Conditioner Panels T0270-87602 | 1 | $3.16 | |||
Showing 1 to 14 of 14 parts
