Kubota RTV-X1100CR M10100 FRONT GRILLE Parts Diagram

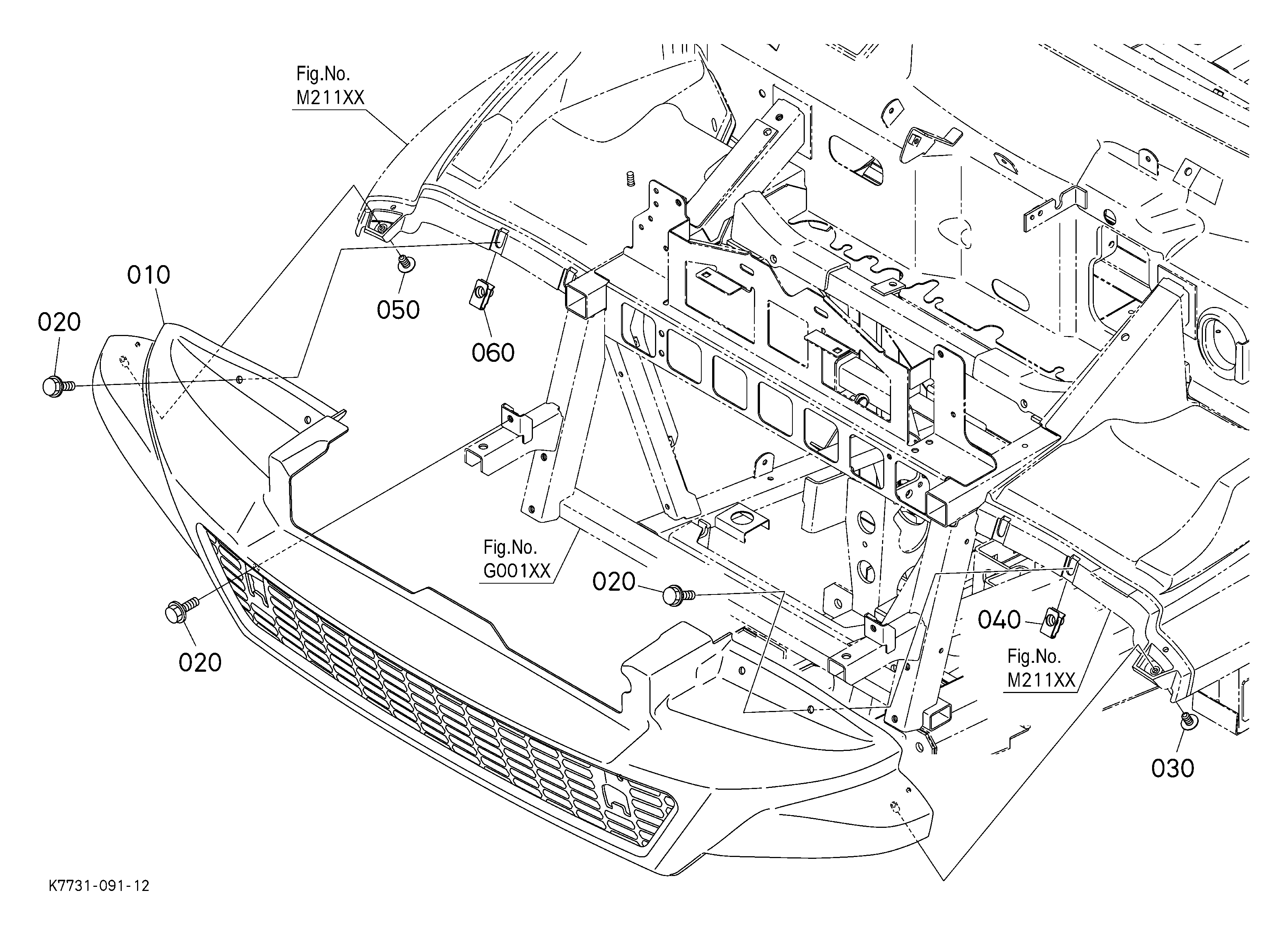

Exploded-view parts diagram "M10100 FRONT GRILLE" for the Kubota RTV-X1100CR, Kubota RTV-X1100CW, Kubota RTV-X1120DG2, Kubota RTV-X1120DR2, Kubota RTV-X1120DW2, Kubota RTV-X1140R, Kubota RTV-X1140W and Kubota RTV-X900G and 2 more models. 6 parts are listed in this assembly. Click a numbered reference on the drawing, or use the search box, to see the genuine Kubota part number with price and stock, then add it to your cart. Supplied by Scholten's Equipment, authorized Kubota dealer with stores in Lynden and Burlington, Washington.
Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 010 | GRILLE K7591-54142 | 1 | $58.09 | |||
| 020 | Tapping Screw K1162-25340 K1162-25343 | 1 | $1.05 | |||
| 030 | MARK, K EMBLEM K7591-54180 | 1 | $32.01 | |||
| 040 | Plate Washer K7581-44210 55611-44210 | 1 | $1.31 | |||
| 050 | Nut (Fastener) K1122-89480 K7561-54190 | 1 | $0.51 | |||
| 050 | Nut Fastener RA111-43690 | 1 | $1.07 | |||
Showing 1 to 6 of 6 parts
