Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 001 | KIT GUARD, REAR K3816-96130 | 1 | $691.88 | |||
| 010 | KIT GUARD,REAR K3811-96130 | 1 | $90.46 | |||
| 020 | SET 1,LABEL (bi- K3811-65710 K3811-65400 | 1 | $23.47 | |||
| 040 | BOLT, FLANGE 01774-51055 | 1 | $4.70 | |||
| 050 | WASHER,PLAIN K3811-21082 | 1 | $4.88 | |||
| 060 | Flange Nut 02771-50100 | 1 | $2.93 | |||
| 070 | COVER, REAR K3811-21022 K3811-21023 | 1 | $66.13 | |||
| 080 | BOLT, FLANGE 01754-50865 | 1 | $1.01 | |||
| 090 | MARK, K EMBLEM K7591-54180 | 1 | $32.01 | |||
| 100 | Plate Washer K7581-44210 55611-44210 | 1 | $0.26 | |||
| 110 | Nut (Fastener) K1122-89480 K7561-54190 | 1 | $0.51 | |||
| 120 | CLAMP K3021-80120 | 1 | $2.16 |
Showing 1 to 12 of 12 parts
Related Assemblies
-

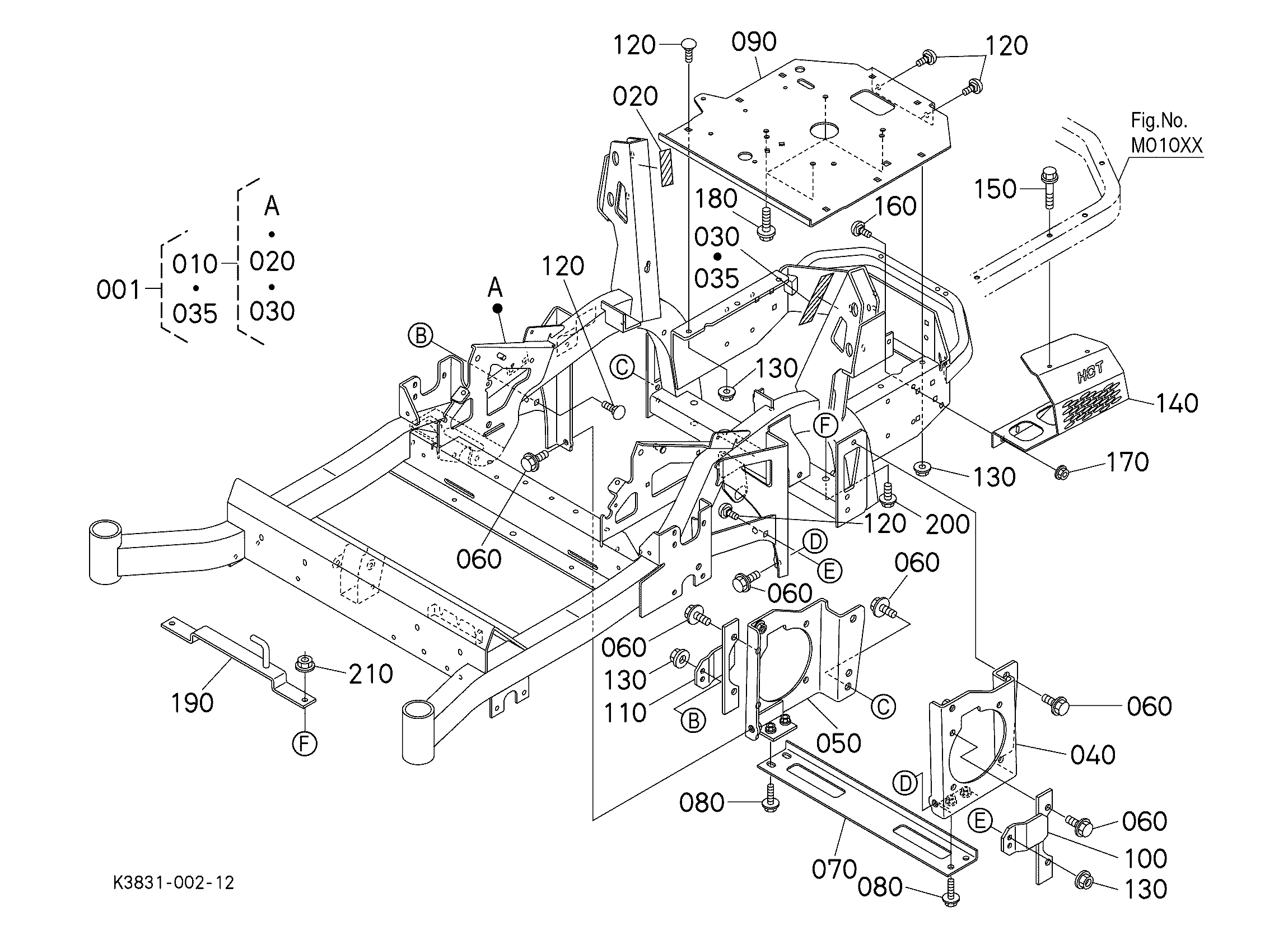

DIAG-M00500-194751 M00500 MAIN FRAME
View Diagram -
DIAG-R10100-194751 R10100 ACCESSORIES
View Diagram -

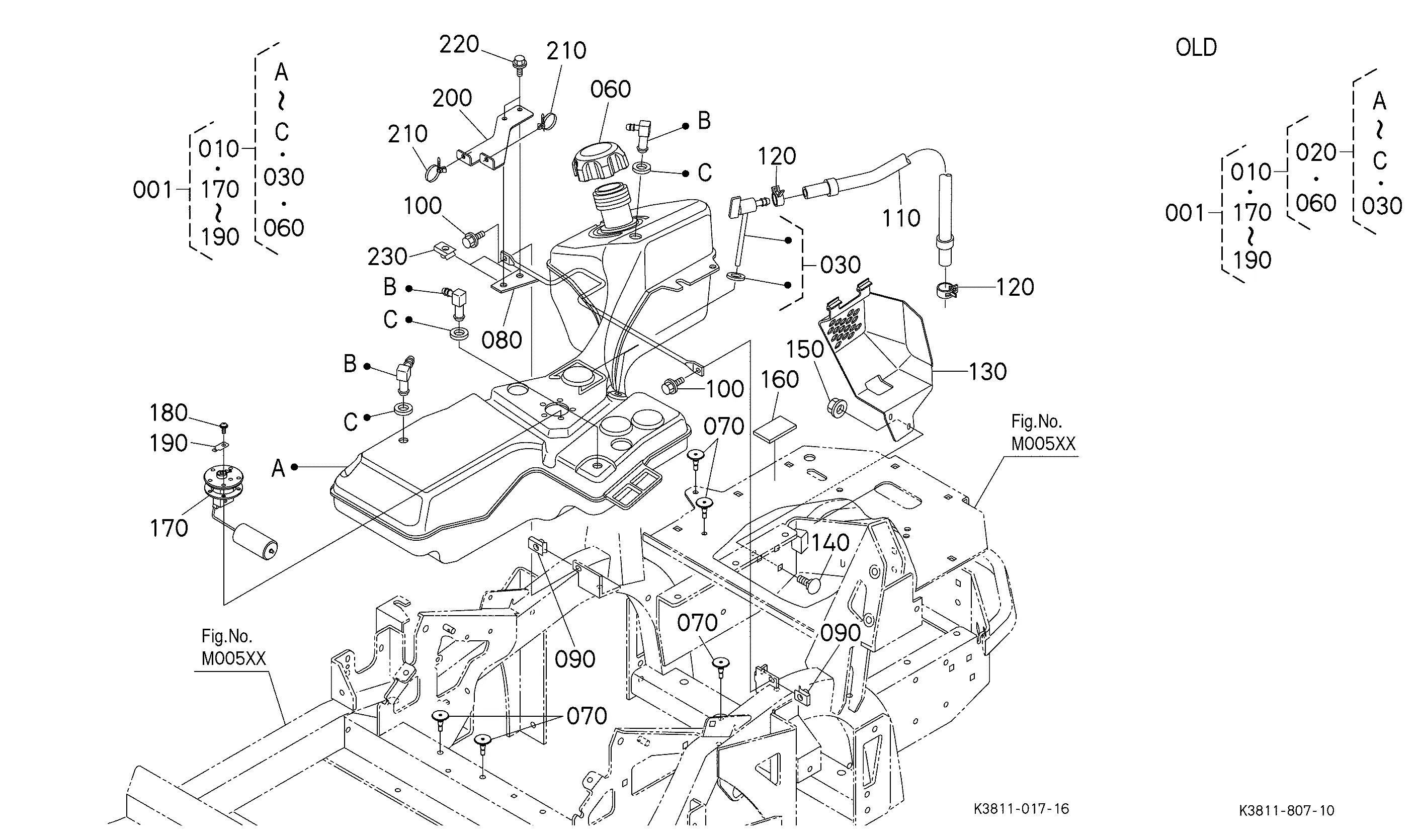

DIAG-A10100-194751 A10100 FUEL TANK
View Diagram
