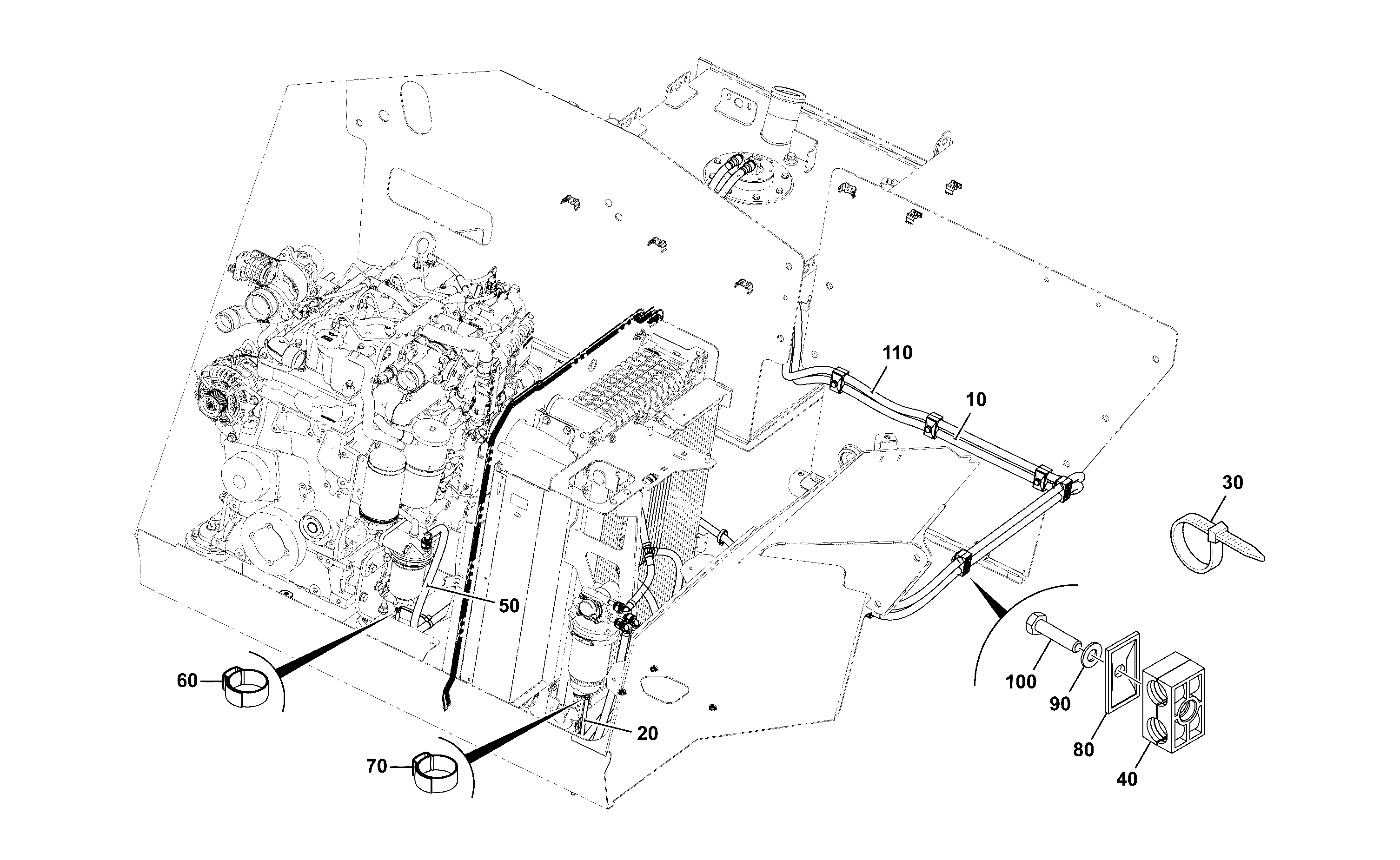

Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 10 | FUEL HOSE sed to tank 400/R9370 | 1 | $65.62 | |||
| 20 | STEPLESS EAR CLAMP 8.8-10 334/J1870 | 1 | $6.23 | |||
| 30 | CABLE TIE LOCKING(KANBAN) 826/11436 | 1 | $2.75 | |||
| 40 | TWIN CLAMP MOULDING 821/00347 | 1 | $31.20 | |||
| 50 | FUEL HOSE - sed to filter 400/R9376 | 1 | $60.11 | |||
| 60 | PVC HOSE, 1/4'' ID, 200mm 401/S2637 | 1 | $3.49 | |||
| 60 | PVC TUBE 545LG 647/02124 | 1 | $13.02 | |||
| 70 | (W) (P) TUBE PVC 647/02104 | 1 | $31.30 | |||
| 70 | PVC HOSE, 1/4'' ID, 360mm 401/S2621 | 1 | $3.49 | |||
| 80 | CLAMP COVER PLATE 821/00335 | 1 | $8.08 | |||
| 90 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.00 | |||
| 100 | BOLT M8x35 1315/3309D | 1 | $0.89 | |||
| 110 | ABI FUEL HOSE SED ENG TAN 400/R9395 | 1 | $82.10 | |||
| 120 | FUEL HOSE COOLER TO TANK 400/R9363 | 1 | $68.55 | |||
Showing 1 to 14 of 14 parts
Related Assemblies
-
DIAG-L780-5-1-400473 L780-5-1 COMPRESSOR ASSEMBLY COMPONENTS
View Diagram -
DIAG-L810-10-1-400473 L810-10-1 CIRCUIT DIESEL FUEL HOSES
View Diagram -

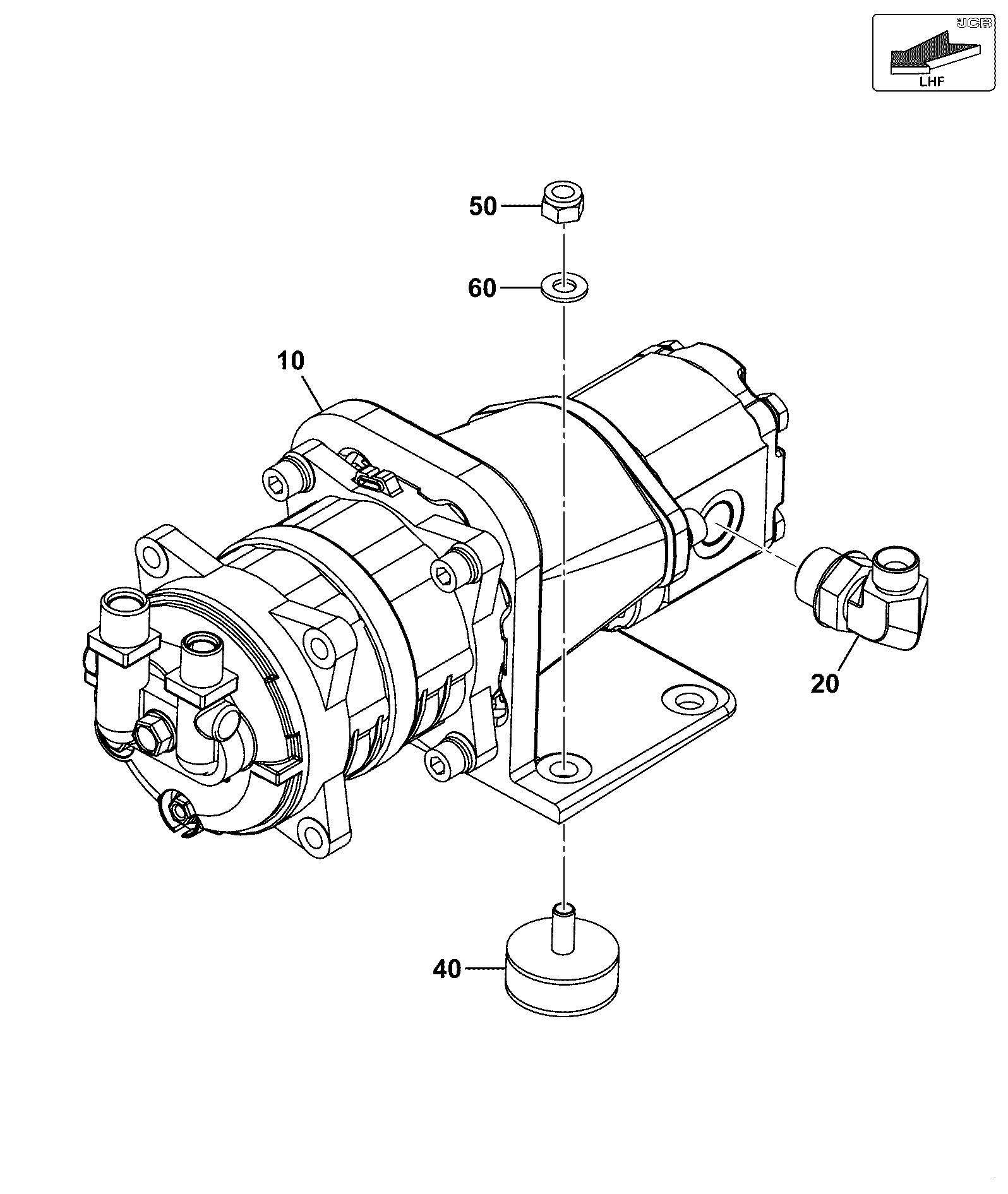

DIAG-L780-1-1-400473 L780-1-1 COMPRESSOR INSTALLATION
View Diagram
