Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | BELT GUARD - PERKINS 404 332/X6410 | 1 | $585.49 | |||
| 2 | A/C COMPRESSOR 128cc 12v 332/X9269 | 1 | $929.24 | |||
| 3 | BELT SP A/C 332/X6472 | 1 | $26.19 | |||
| 4 | PULLEY - SP A/C 332/X5973 | 1 | $350.70 | |||
| 5 | WA-LOWER FEAD COVER BKT 335/D8298 | 1 | $33.87 | |||
| 6 | M/C - A/C BRACKET SP 332/X7389 | 1 | $173.00 | |||
| 7 | BOLT M10x30 (GLOBAL) 1315/3408Z | 1 | $4.02 | |||
| 8 | BOLT M8x100(KANBAN) 1317/3320Z | 1 | $10.46 | |||
| 9 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 10 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 11 | SET-SCREW M_6 L-_20mm(KANBAN) 1315/0205Z | 1 | $0.65 | |||
| 12 | SET SCREW M8x30(KANBAN) 1315/0308Z | 1 | $2.17 | |||
| 13 | CAP SCREW M12x45 1391/3511Z | 1 | $2.03 | |||
| 14 | M12 HARDENED WASHER 1422/0009Z | 1 | $1.97 | |||
| 15 | WASHER LOCK 5M INT 1418/0008Z | 1 | $7.25 | |||
| 16 | WASHER 1/4 LARGE PLAIN 1412/0001Z 1412/0001D | 1 | $0.54 | |||
| 17 | WA A/C LOCK BRACKET 335/Y2490 | 1 | $12.11 | |||
| 18 | BOLT M12x160 1315/3526Z | 1 | $33.34 | |||
| 19 | SCREW(KANBAN) (P785) (BR3) 1317/3307Z | 1 | $1.86 | |||
| 20 | HINGE BOSS 829/30000 | 1 | $11.75 | |||
| 22 | WA LH UPPER FEAD BRACKET 335/D8252 | 1 | $12.31 | |||
| 23 | WA RH UPPER FEAD BRACKET 335/D8251 | 1 | $314.37 | |||
| 24 | BOLT M8 x 65 G8.8 1315/3315Z | 1 | $4.41 | |||
| 25 | NUT M8 THIN PLAIN 1370/0202Z | 1 | $0.71 | |||
| 26 | A/C COMPRESSOR PORT FITTING 336/B3514 | 1 | $45.40 | |||
| 27 | SET-SCREW M10 L-_30mm 1315/0408Z | 1 | $1.22 | |||
| 30 | ADAPTOR STREET 90DEG -6-6 PIPE 332/X4713 | 1 | $17.57 | |||
| 31 | ADAPTOR -10 BARB -6 PIPE 332/X4696 | 1 | $8.41 | |||
| 32 | HVAC CHASSIS HARNESS WITH 335/Y8826 | 1 | $116.16 | |||
Showing 1 to 29 of 29 parts
Related Assemblies
-

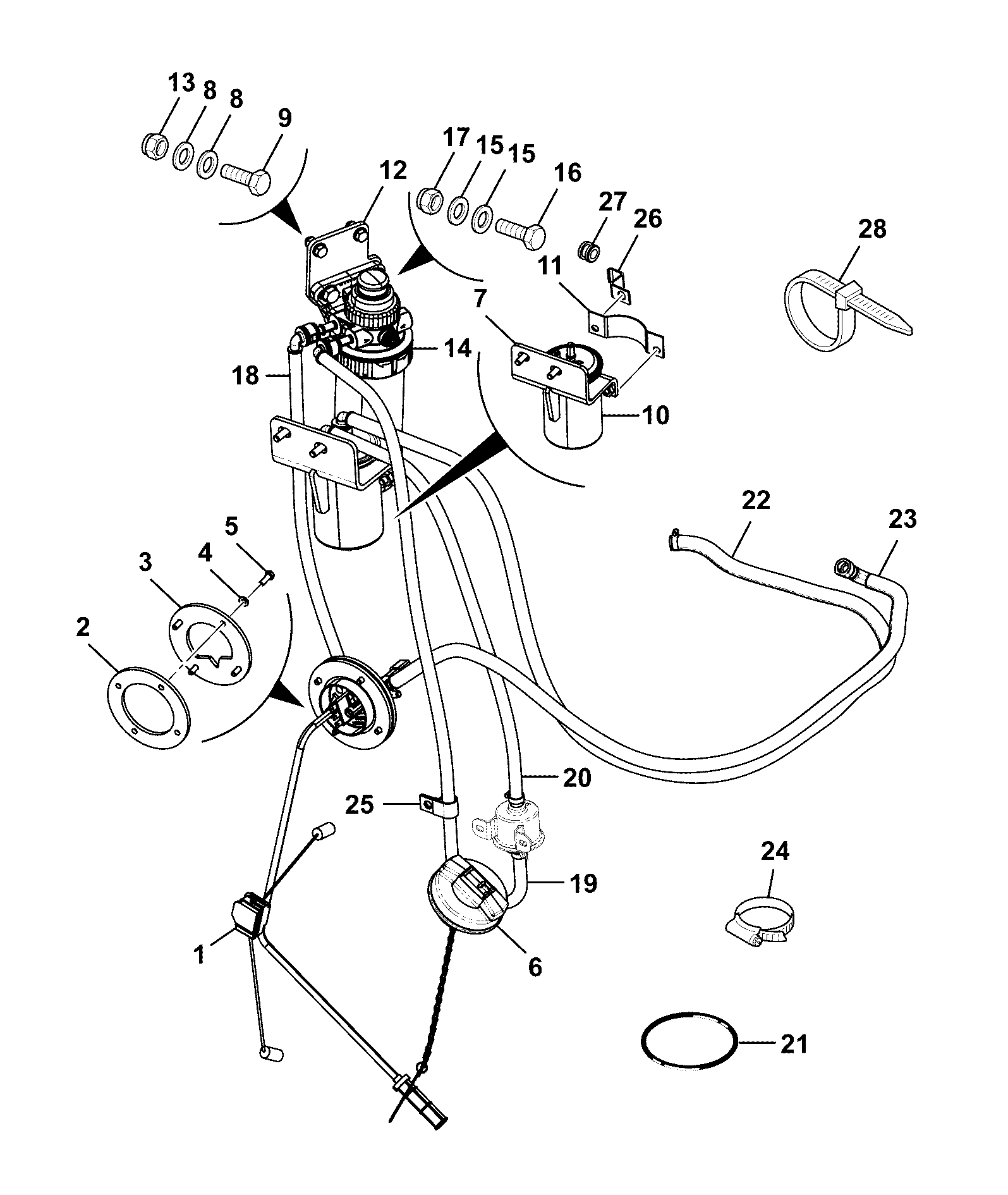

DIAG-L800-1-5-399675 L800-1-5 FUEL SYSTEM INSTALLATION ASSEMBLIES ASSEMBLY
View Diagram -

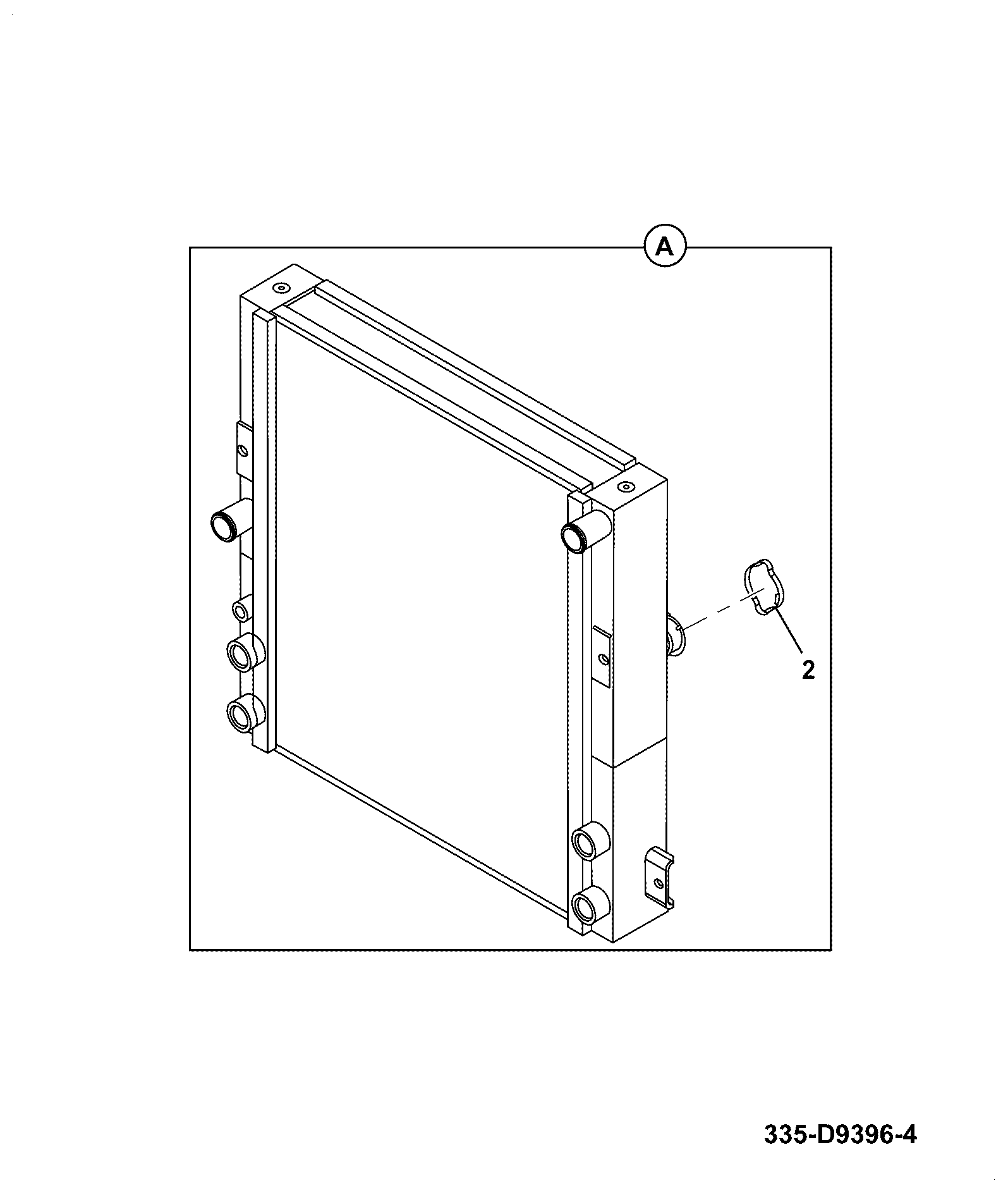

DIAG-L620-5-1-399675 L620-5-1 ABI COOLING PACK 155
View Diagram -

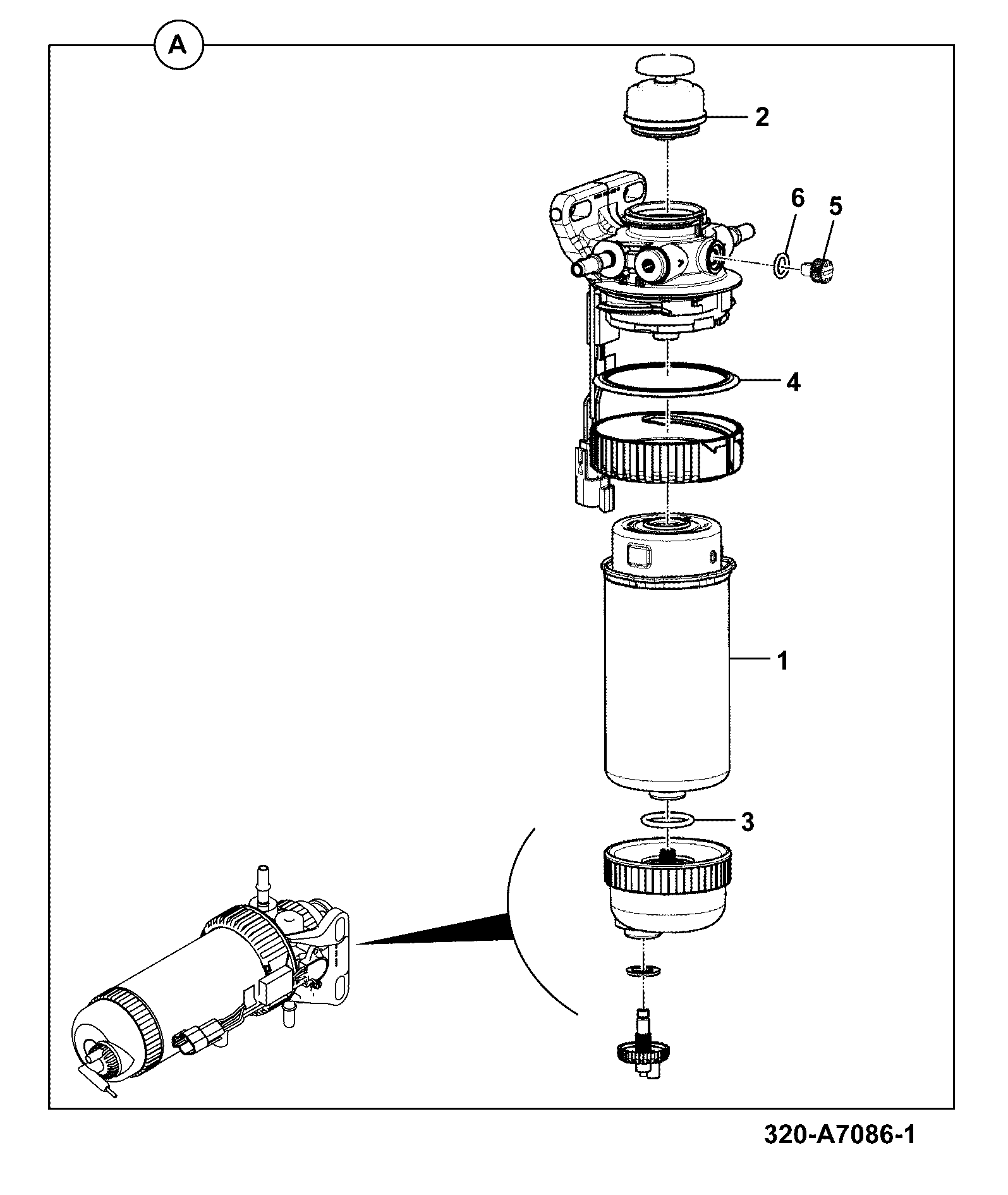

DIAG-L820-10-1-399675 L820-10-1 FUEL FILTER COMPONENTS 30-MICRONS
