Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
| 2 | WASHER LOCK 5M INT 1418/0008Z | 1 | $7.25 | |||
| 3 | WASHER 1/4 LARGE PLAIN 1412/0001Z 1412/0001D | 1 | $0.54 | |||
| 4 | NUT M10 PLAIN 1370/0301Z 1370/0301D | 1 | $3.28 | |||
| 5 | SET-SCREW M_6 L-_20mm(KANBAN) 1315/0205Z | 1 | $0.65 | |||
| 6 | 'BOLT M10 L-_40mm 8.8 FLANGED HEX(KANBAN 1317/3410Z | 1 | $0.89 | |||
| 8 | WA LOWER FEAD COVER BRKT 332/X7465 | 1 | $172.48 | |||
| 9 | BELT GUARD - PERKINS 404 332/X7354 | 1 | $46.35 | |||
| 12 | WA LH UPPER FEAD BRACKET 332/X3677 | 1 | $129.19 | |||
| 13 | WA RH UPPER FEAD BRACKET 332/X3693 | 1 | $9.31 | |||
Showing 1 to 10 of 10 parts
Related Assemblies
-

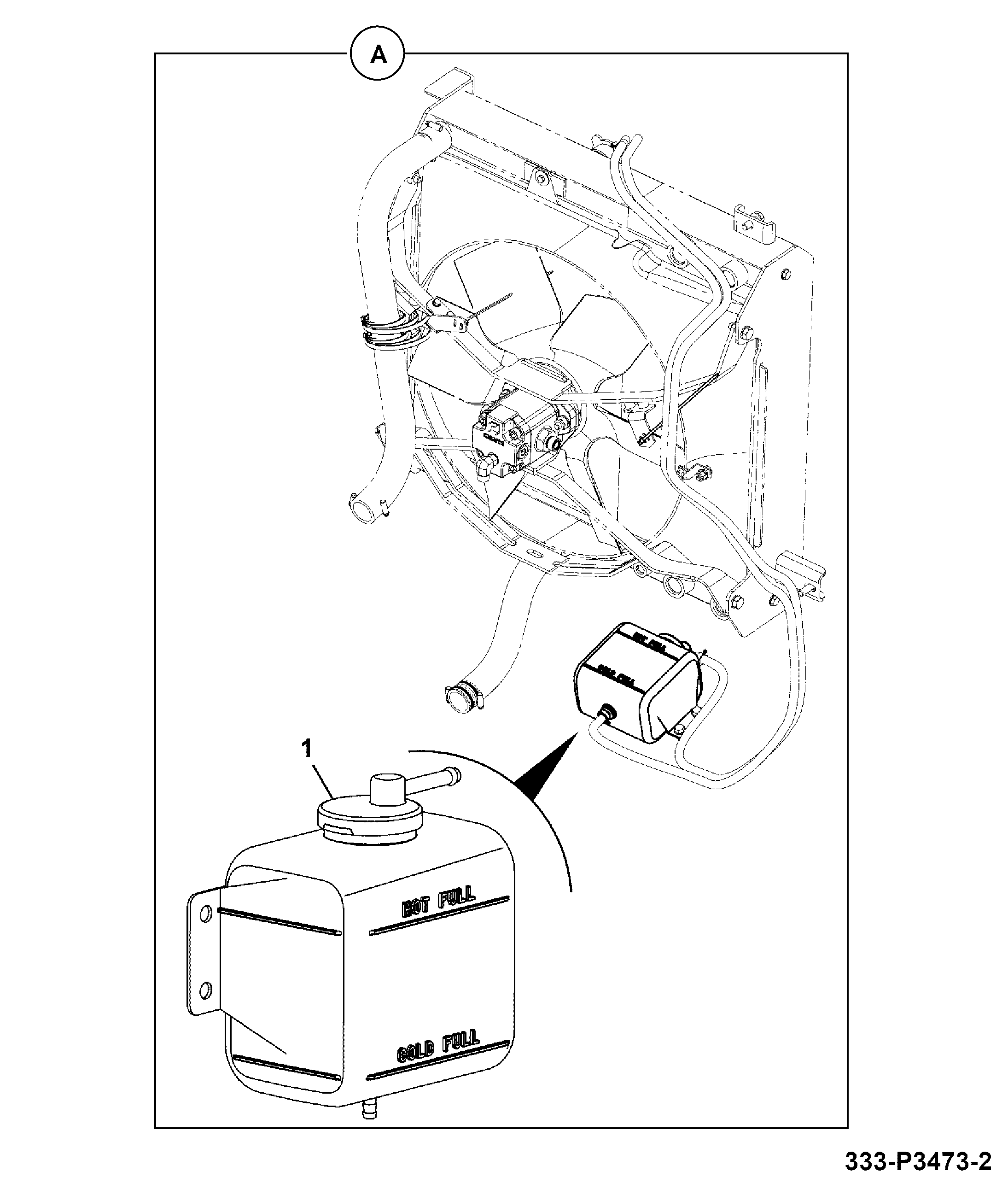

DIAG-L640-5-1-395339 L640-5-1 TANK WASHER BOTTLE COOLANT OVER FLOW,ABI
View Diagram -

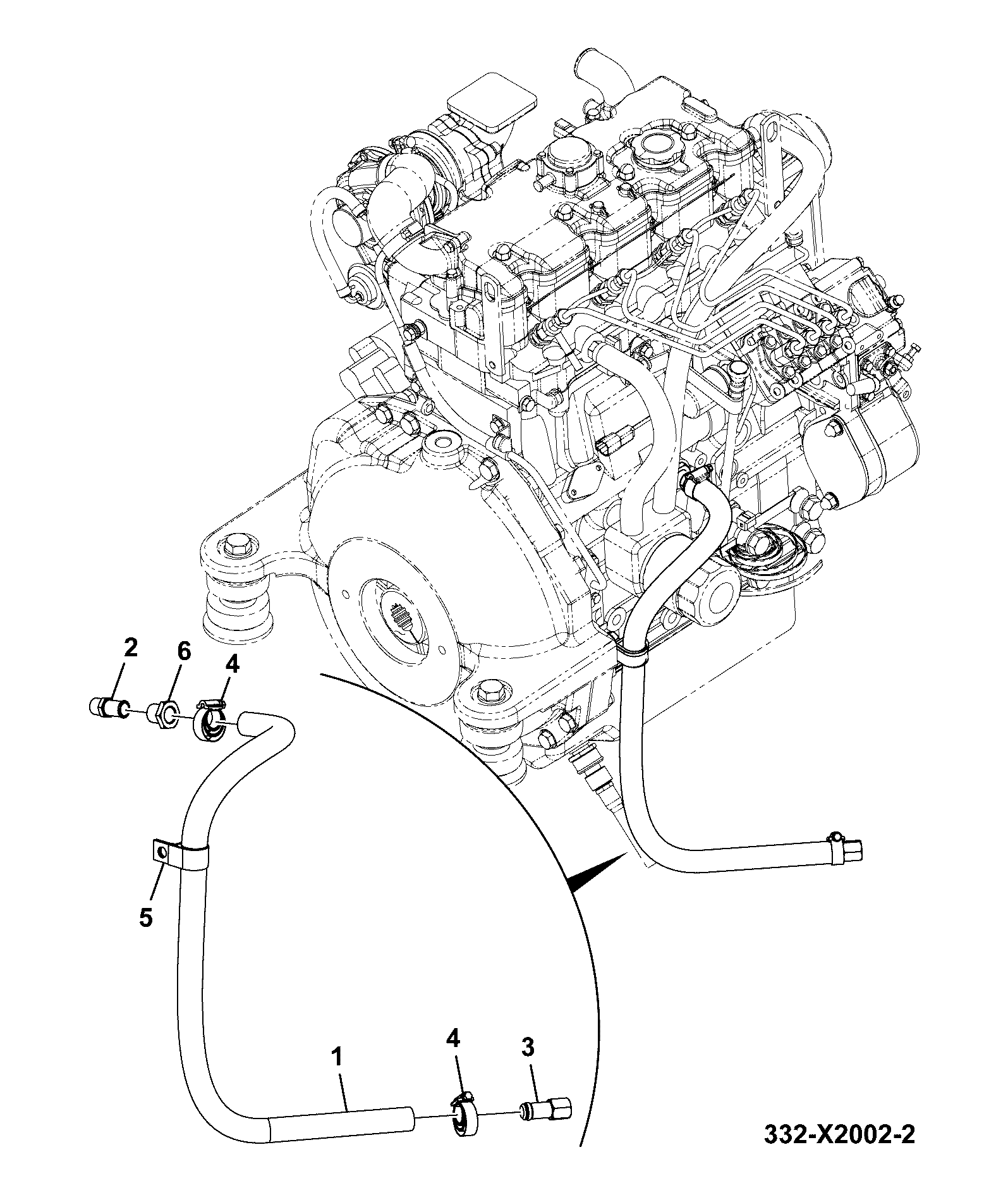

DIAG-L640-1-1-395339 L640-1-1 COOLANT CIRCUIT REMOTE DRAIN,ENGINE
View Diagram -

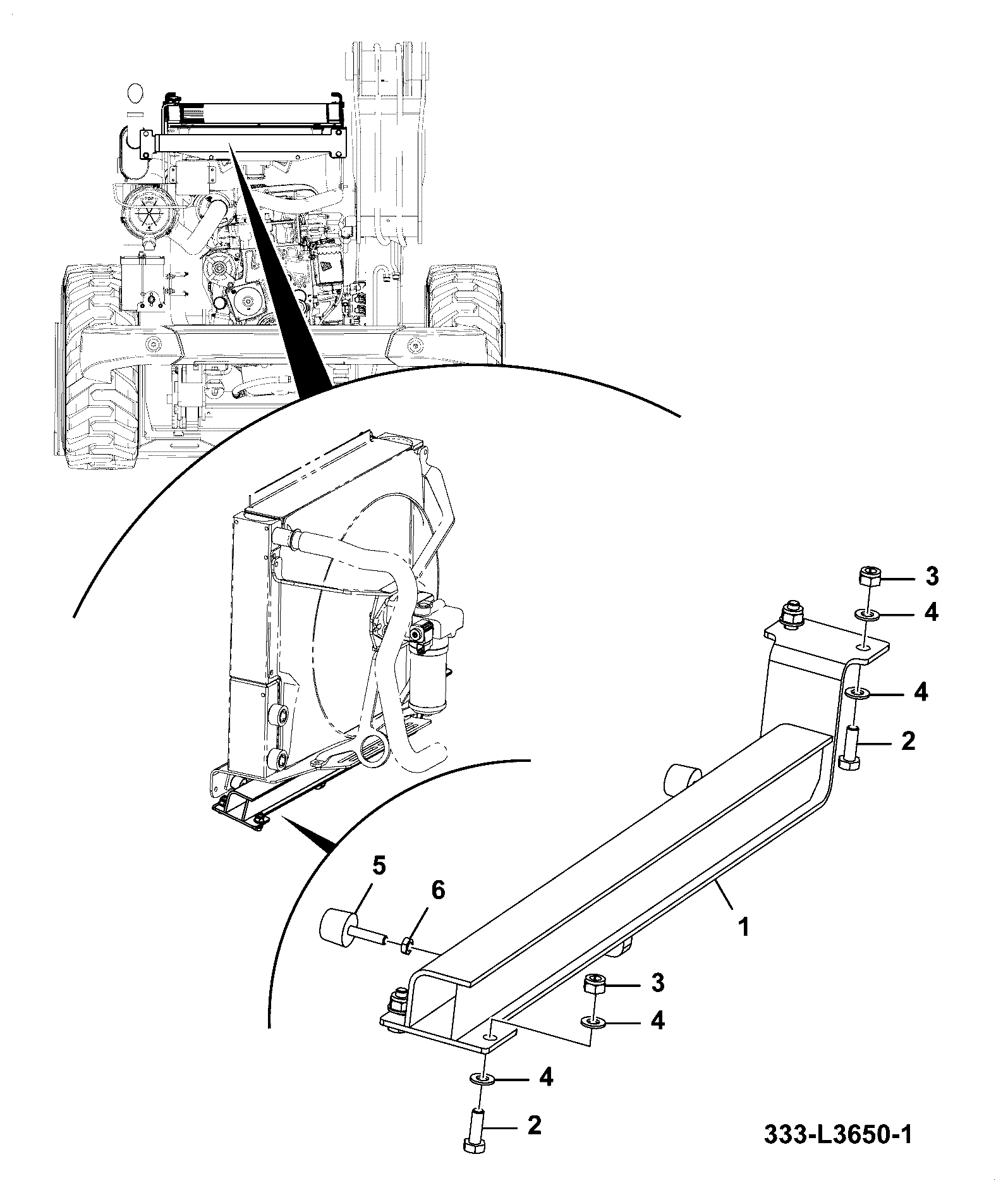

DIAG-L610-15-5-395339 L610-15-5 COOLING PACK INSTALLATION CROSS-MEMBER REAR
View Diagram
