L720-1-1 FRONT END AUXILIARY DRIVE FAN DRIVE NON AIR-CON Parts Diagram | JCB

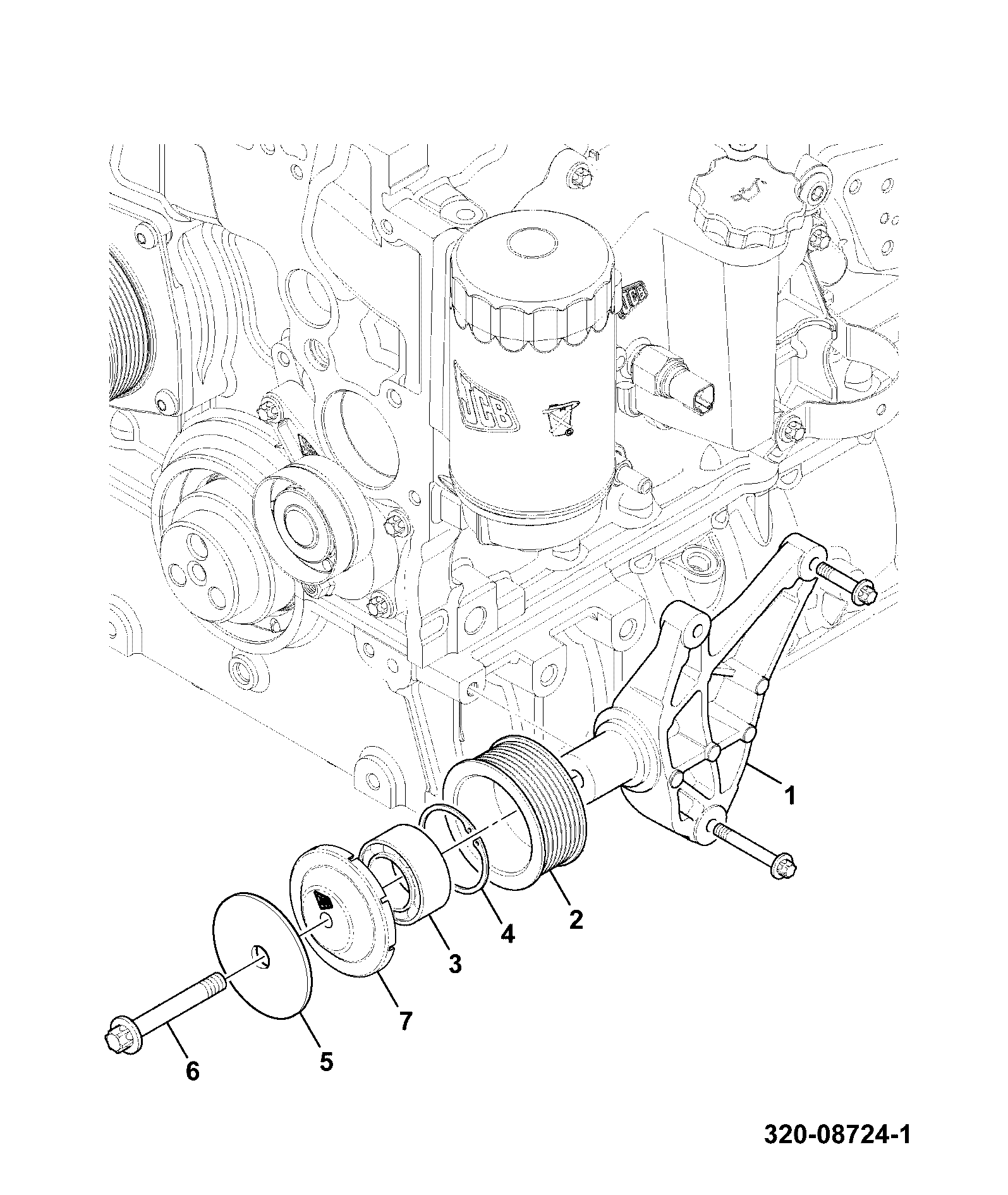

Scroll to zoom Click a part # to view details

Ref #	Part Number	Qty.	Avl.	Price (USD)	Action
10	FAN HUB ASSEMBLY(BR3) 320/A8514	1	AVAILABLE TO ORDER	$154.87	Quantity
20	FAN PULLEY EFF DIA 162(old 08572) 320/08572 320/A8509	1	AVAILABLE TO ORDER	$80.19	Quantity
30	BELT.8PK 1835 AR3 320/08598	1	1 IN STOCK	$91.17	Quantity
40	SCREW M8X20 PAN HEAD ENCA 320/B0738	1	AVAILABLE TO ORDER	$1.32	Quantity

Showing 1 to 4 of 4 parts
