Scroll to zoom Click a part # to view details
| Ref # | Part Number | Qty. | Avl. | Price (USD) | Action | |
|---|---|---|---|---|---|---|
| 1 | TOP HOSE 2WS 55kW Stage V 400/T1157 | 1 | $149.59 | |||
| 2 | BOTTOM HOSE 2WS 55kW Stag 400/D7385 | 1 | $123.45 | |||
| 3 | BREATHER HOSE EGR 55kW St 334/G8607 | 1 | $29.47 | |||
| 5 | ABI EXPANSION TANK 4L 128/D1283 | 1 | $305.35 | |||
| 6 | Clamp 42mm pipe 332/C8902 | 1 | $13.29 | |||
| 7 | CABLE TIE 150mm 826/10711 | 1 | $3.02 | |||
| 8 | GROMMET 2410/0110 | 1 | $17.88 | |||
| 9 | CABLE TIE LOCKING 826/11447 | 1 | $0.38 | |||
| 10 | SET-SCREW M_8 L-_30mm 1315/0308D | 1 | $1.63 | |||
| 11 | WASHER M_8 PLAIN 1420/0007Z 1420/0007D | 1 | $0.20 | |||
| 12 | SET-SCREW M_8 L-_25mm 1315/0307D | 1 | $0.37 | |||
| 13 | WASHER 5/16 LARGE PLAIN 1412/0002Z 1412/0002D | 1 | $1.92 | |||
| 14 | NUT M8 STD SELF LOCK 1370/0203D | 1 | $1.75 | |||
| 15 | SET-SCREW M10 L-_25mm 1315/0407D | 1 | $0.62 | |||
| 16 | LEVEL SWITCH SUPPORT BRACKET 333/F2850 | 1 | $106.18 | |||
| 17 | SET-SCREW M_6 L-_20mm 1315/0205D | 1 | $0.57 | |||
| 18 | WASHER M_6 PLAIN 1420/0006Z 1420/0006D | 1 | $0.42 | |||
| 19 | NUT M_6 STD SELF LOCK 1370/0103 1370/0103D | 1 | $0.17 | |||
| 20 | WORM DRIVE SPRING CLIP (BR3) (P933) 2206/4060 | 1 | $15.09 | |||
| 21 | Clip constant torq(KANBAN) 2206/5070 821/10236 | 1 | $50.10 | |||
| 22 | SET-SCREW M_8 L-_16mm 1315/0303D | 1 | $0.86 | |||
| 23 | CABLE TIE 300mm 826/11017 | 1 | $2.08 | |||
| 24 | WASHER M10 PLAIN 1425/0008Z 1420/0008D | 1 | $0.23 | |||
Showing 1 to 23 of 23 parts
Related Assemblies
-

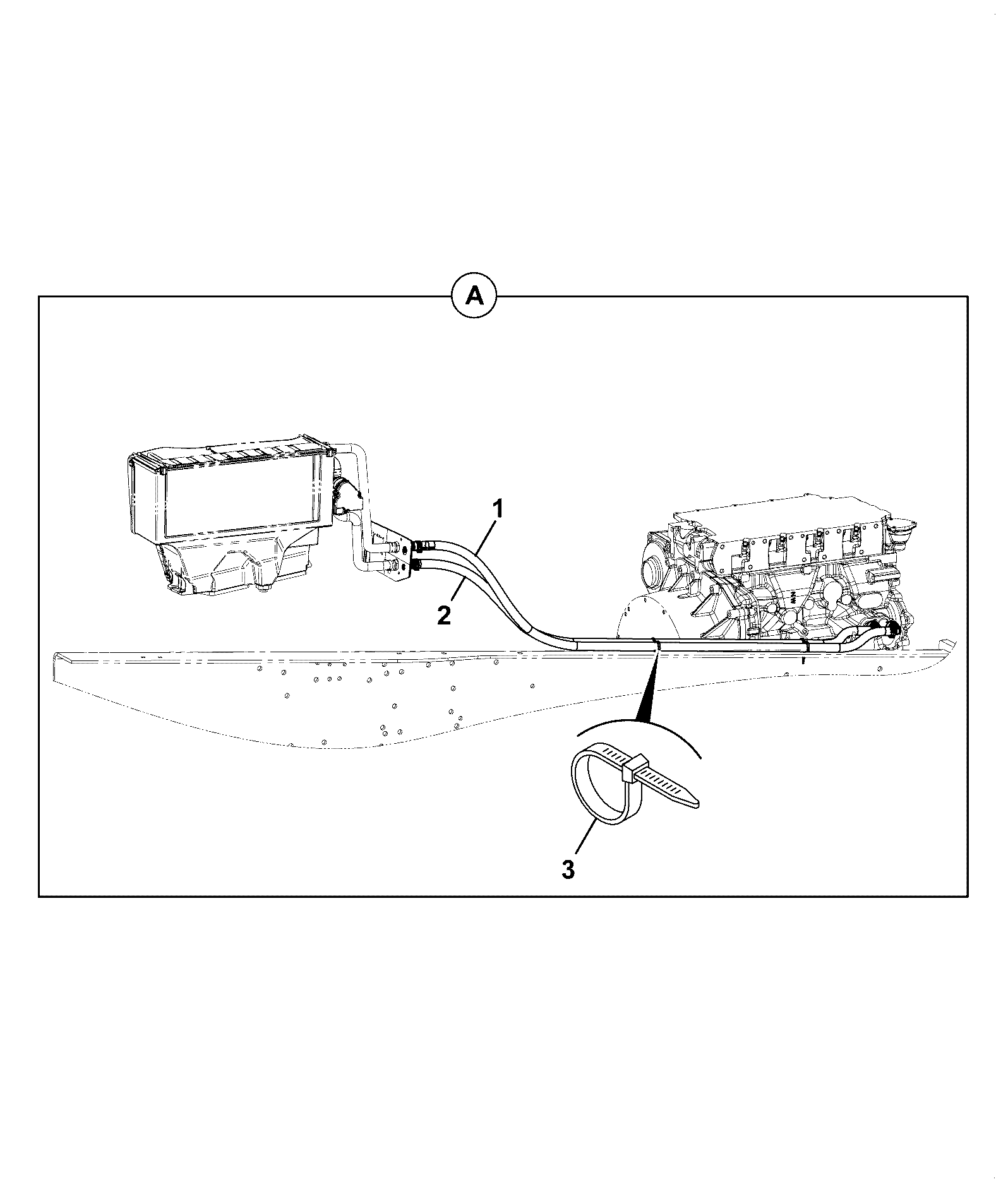

DIAG-L640-10-1-394802 L640-10-1 COOLANT CIRCUIT HEATER FEED AND RETURN, STAGE V
View Diagram -

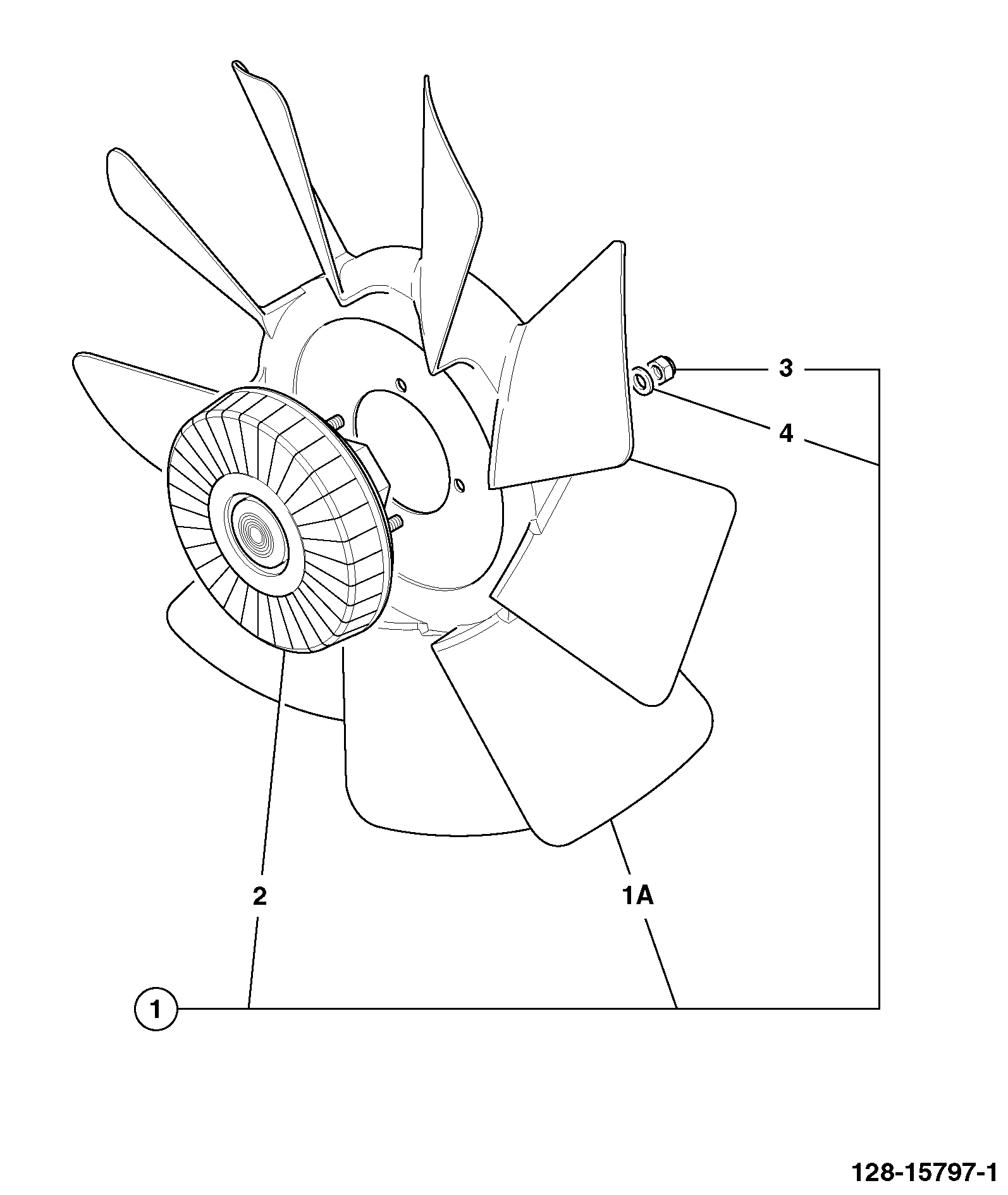

DIAG-L710-5-1-394802 L710-5-1 FAN ASSEMBLY VISCOUS
View Diagram -

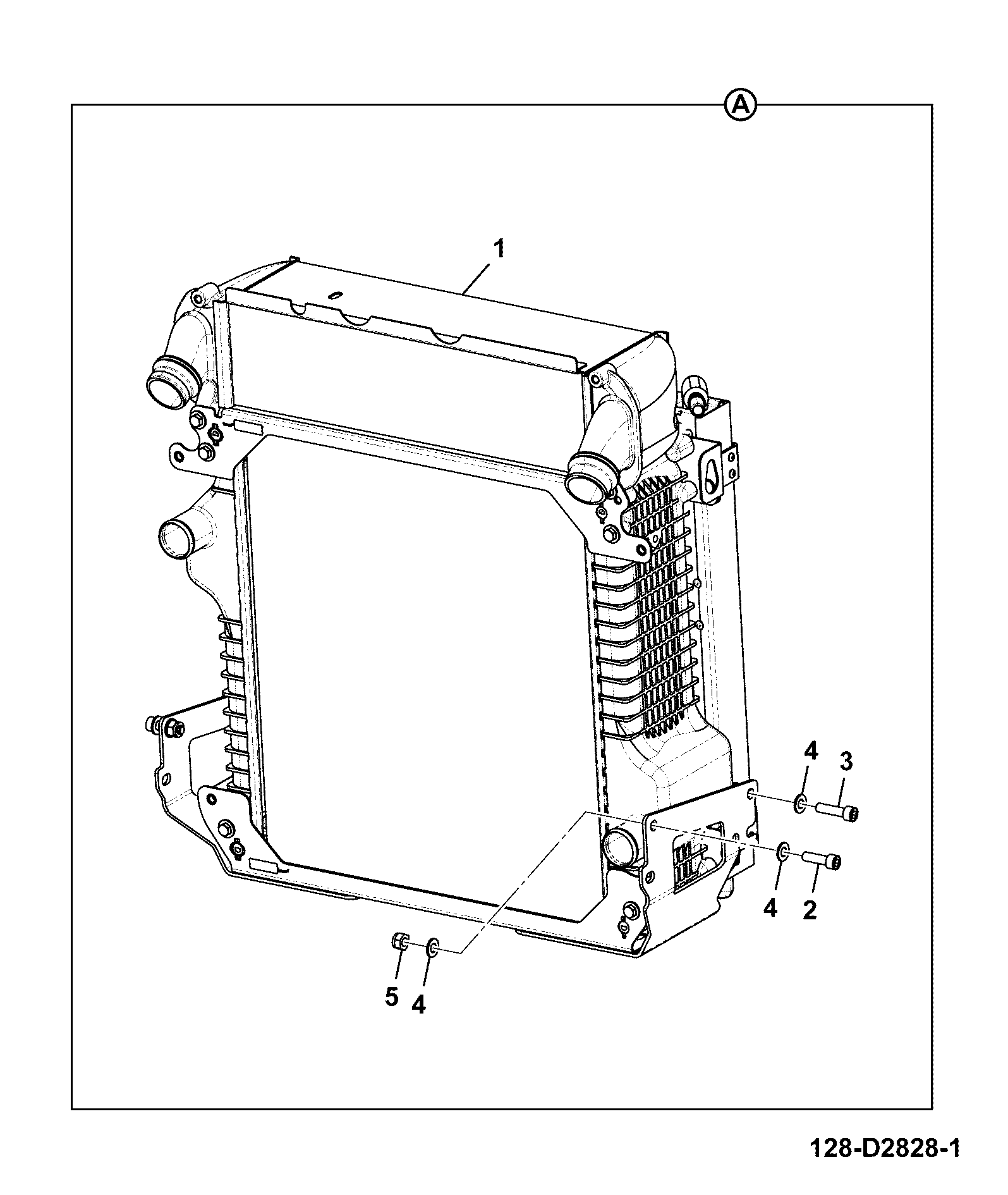

DIAG-L610-5-1-394802 L610-5-1 COOLING PACK INSTALLATION 2WS CAC, T4i
View Diagram
